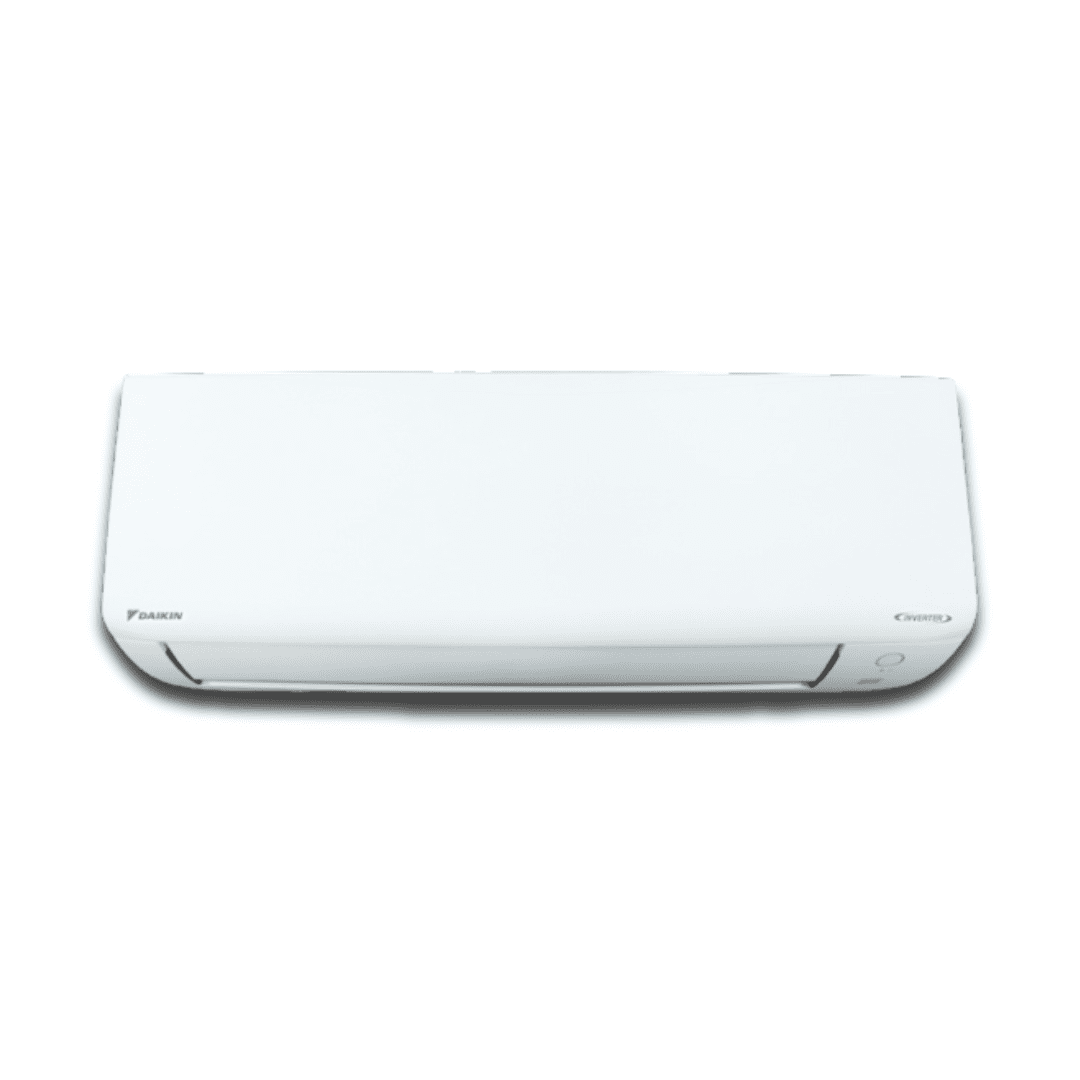

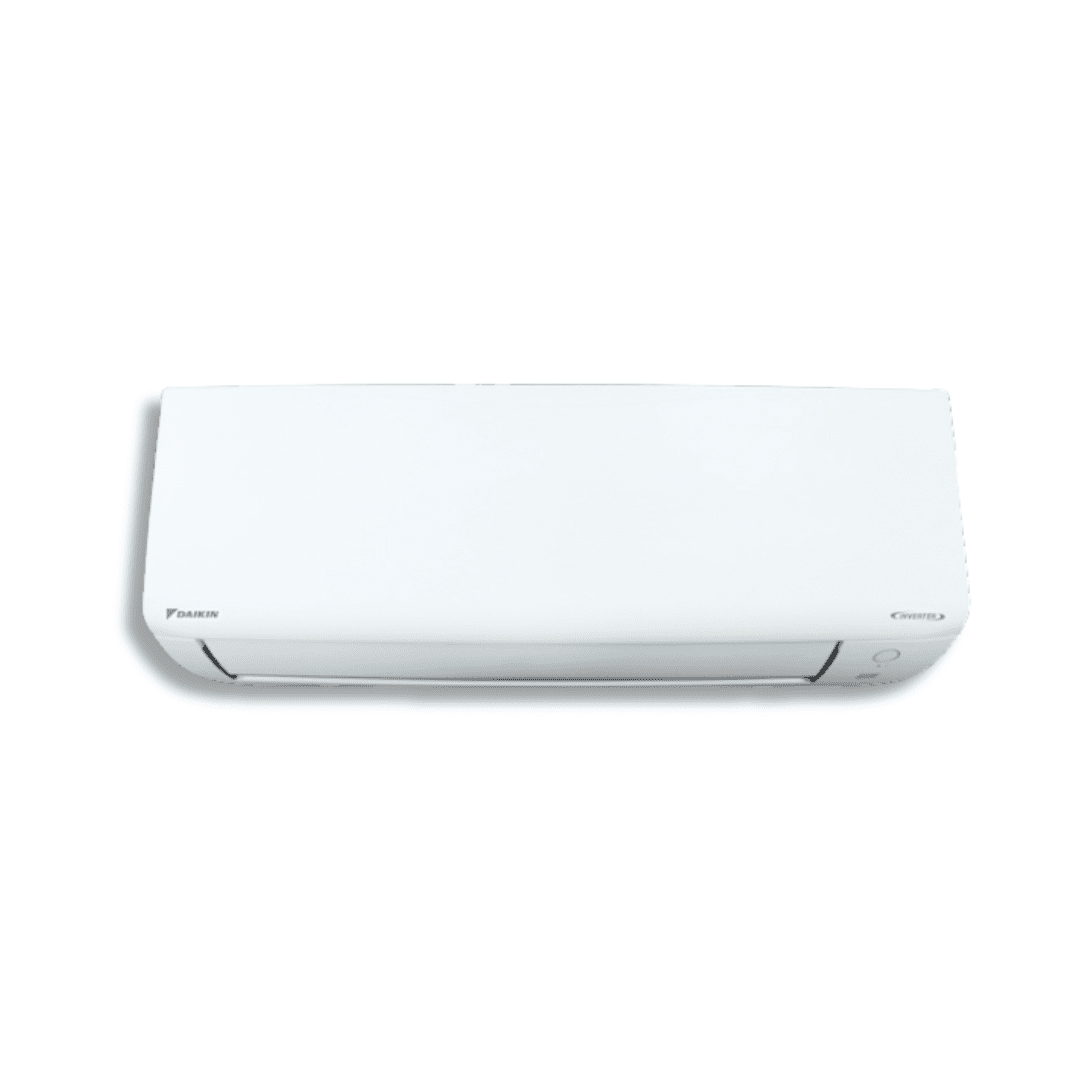

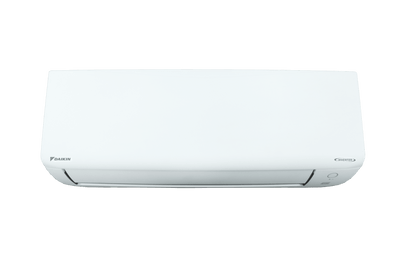

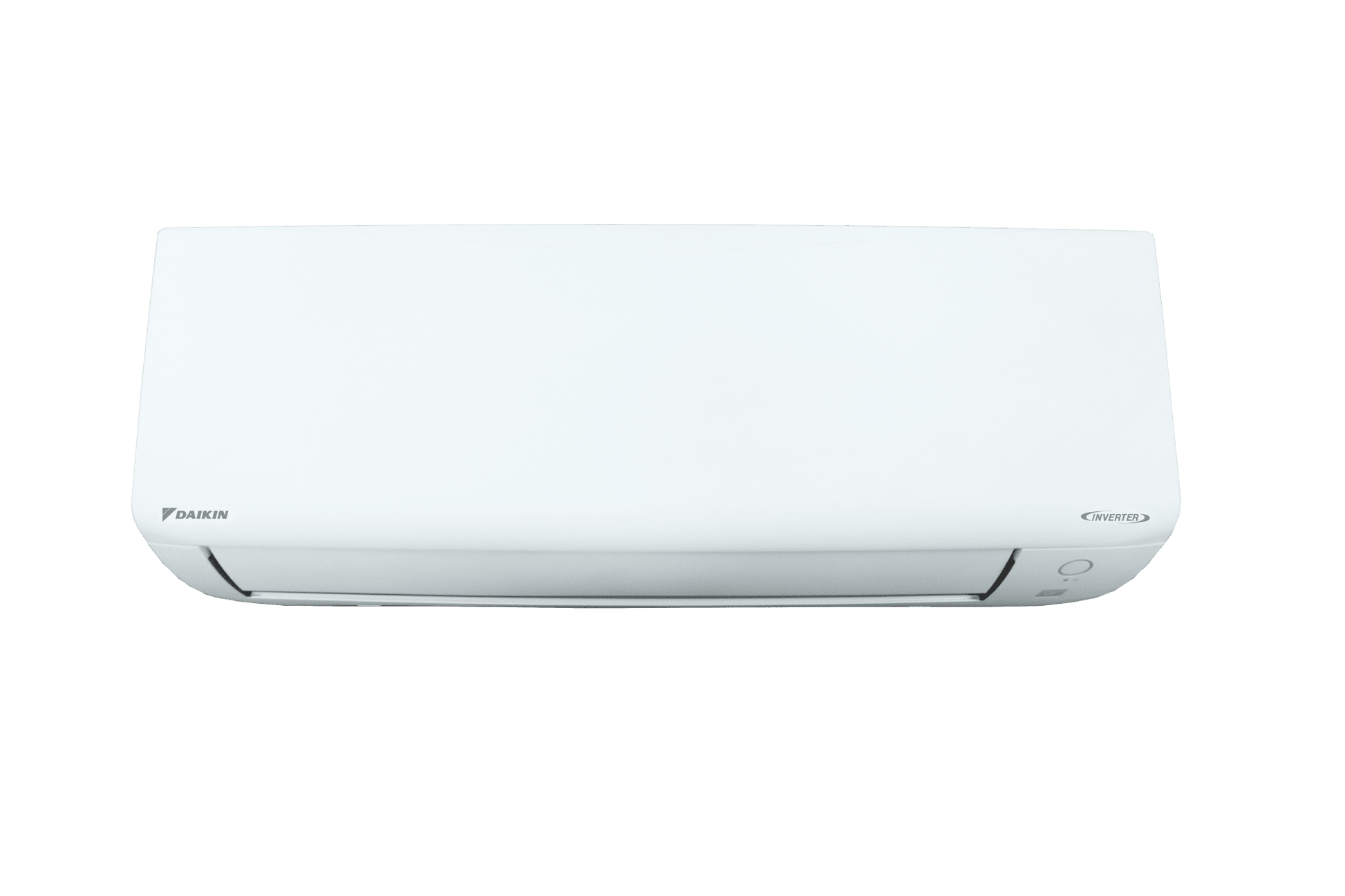

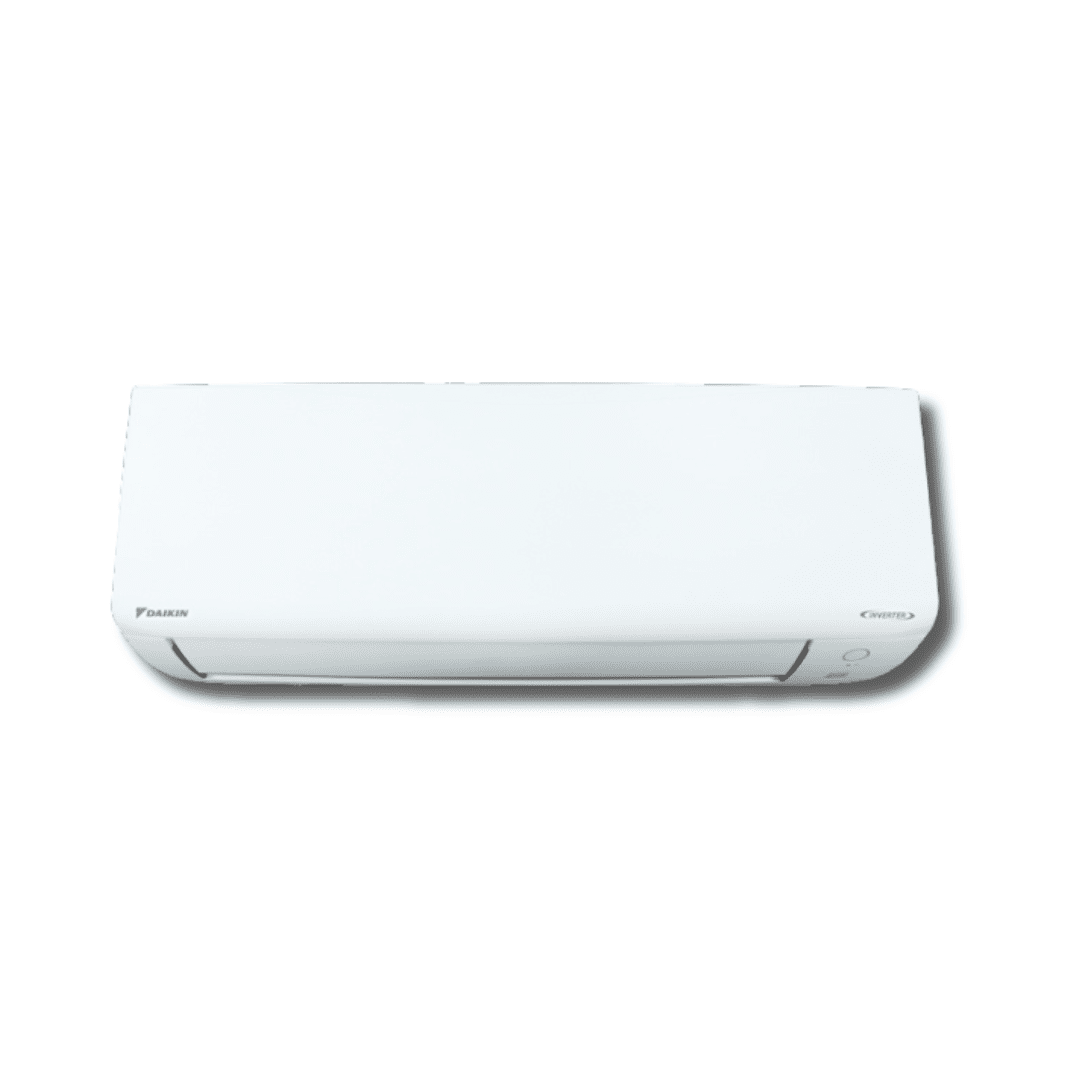

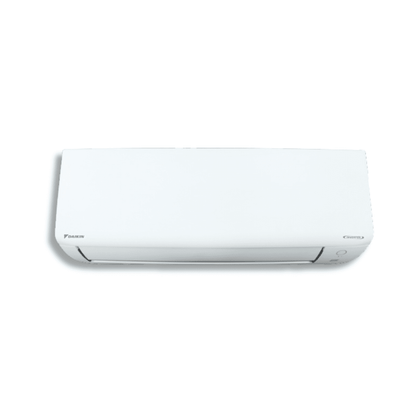

Daikin FTXF12AXVJU 12,000 BTU Oterra Mini Split Air Handler Single Zone Wall Mount R32

Product: FTXF12AXVJU

Description:

The Daikin FTXF12AXVJU is a wall-mounted indoor air handler designed for use in a single-zone ductless mini-split heat pump system. It pairs with a compatible outdoor heat pump condenser to provide efficient cooling and heating comfort throughout the year. This unit uses R-32 refrigerant, offers quiet operation, and incorporates modern features like inverter technology, multiple operating modes, self-diagnostics, and auto-restart for convenience and reliability. It’s suitable for small to medium spaces such as bedrooms, offices, and living areas.

Specifications:

Capacity & Performance

• Nominal Cooling Capacity: 12,000 BTU/h

• Nominal Heating Capacity: Approximately 13,500 BTU/h (rated in combination with a compatible outdoor unit)

• Cooling Operating Range (Ambient): Approximately 50 °F to 114–115 °F

• Heating Operating Range (Ambient): Approximately 5 °F to 65 °F

Efficiency (System Rated)

• SEER2 (Seasonal Energy Efficiency Ratio): ~21.0

• EER2 (Energy Efficiency Ratio): ~12.0

• HSPF2 (Heating Seasonal Performance Factor): ~9.0



Airflow & Noise

• Airflow (CFM):
  • Super-Low: ~125 CFM
  • Low: ~245 CFM
  • Medium: ~310 CFM
  • High: ~410 CFM

• Indoor Sound Pressure Levels (dB[A]):
  • Super-Low: ~21 dB(A)
  • Low: ~31 dB(A)
  • Medium: ~38 dB(A)
  • High: ~46 dB(A)

Dimensions & Weight

• • Width: Approximately 30-1/4 inches

  • Height: Approximately 11-1/4 inches

  • Depth: Approximately 8-3/4 inches

  • Net Weight: ~20 lbs (9 kg)
