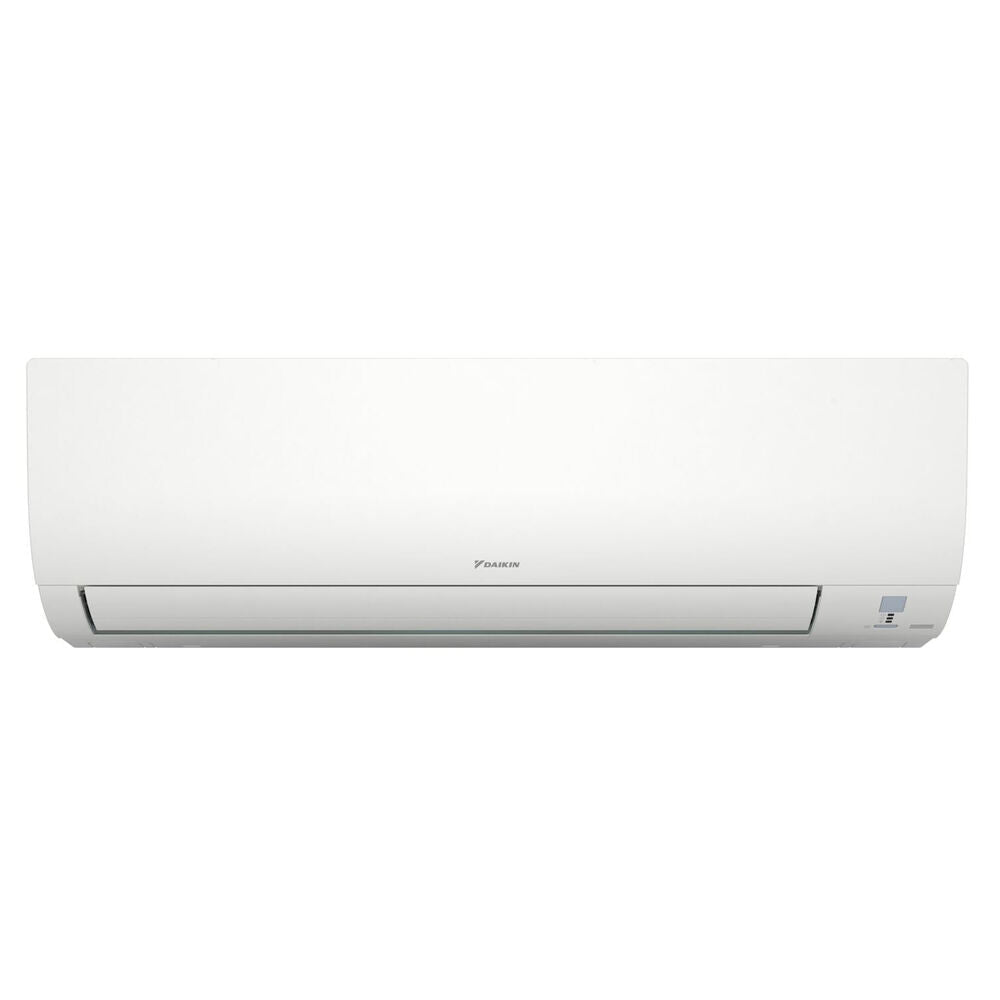

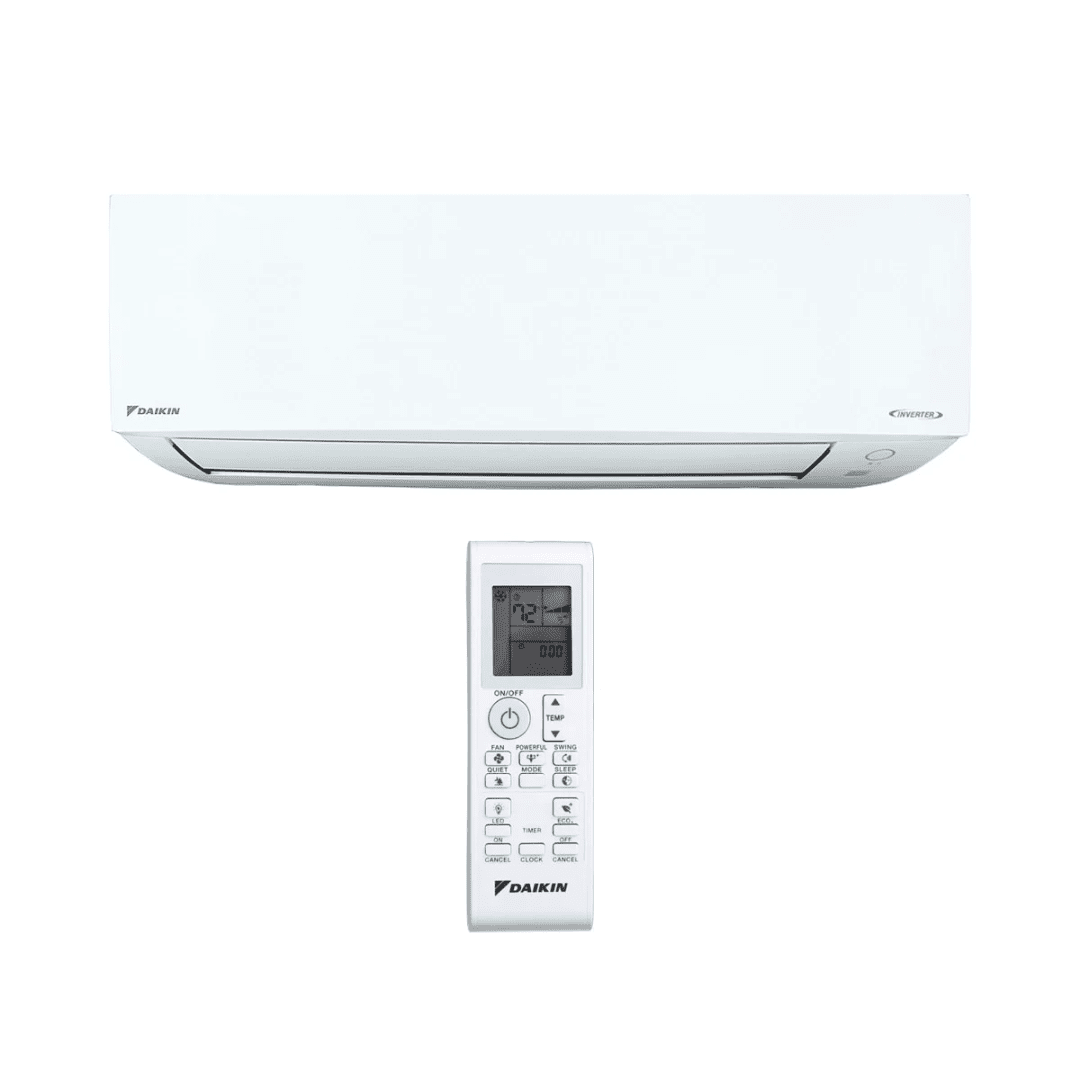

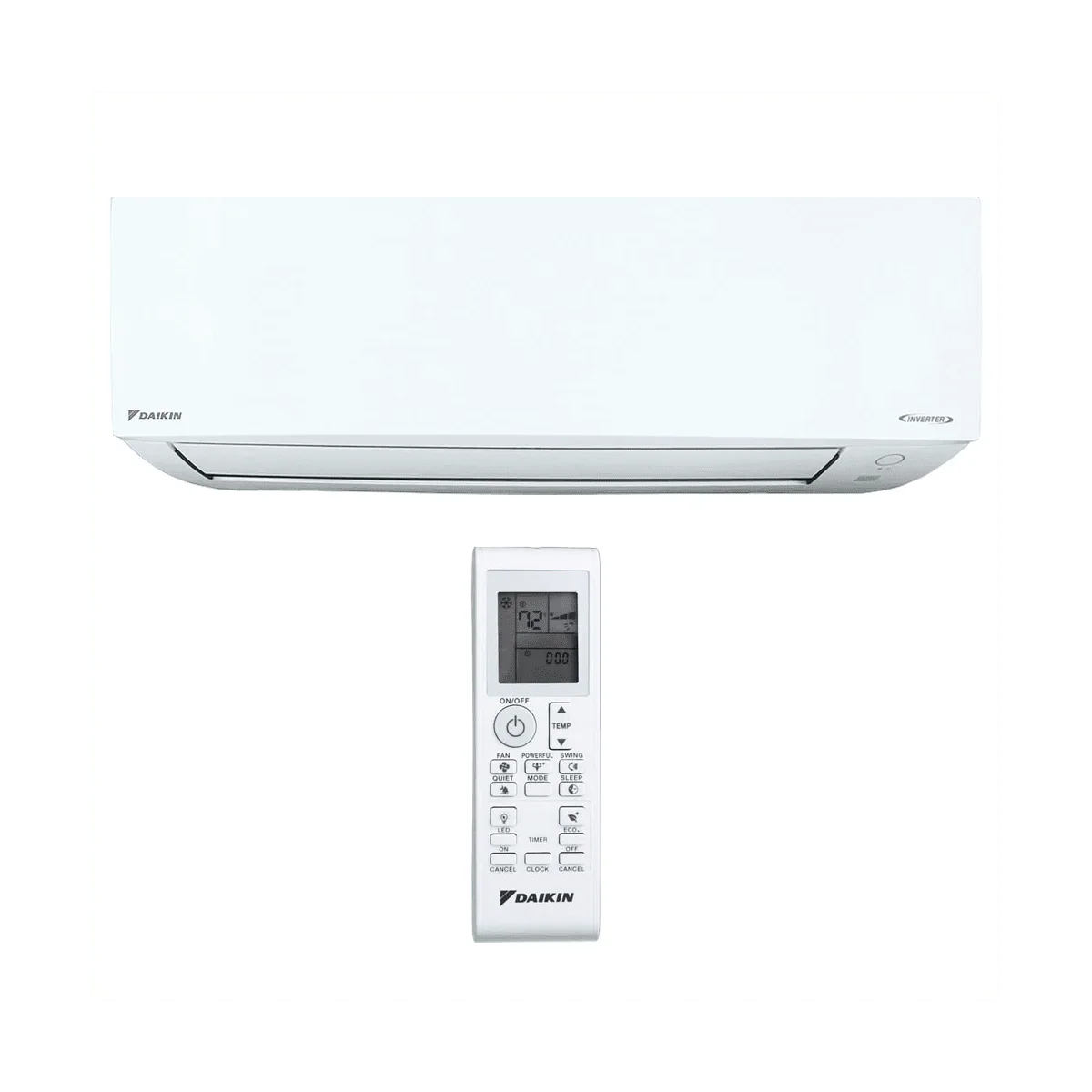

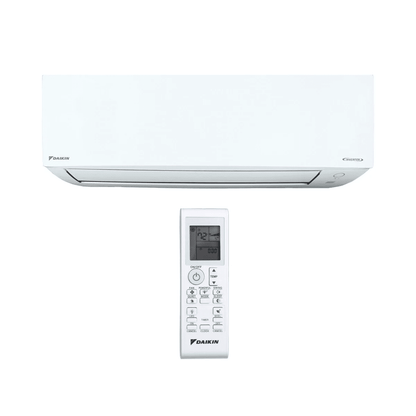

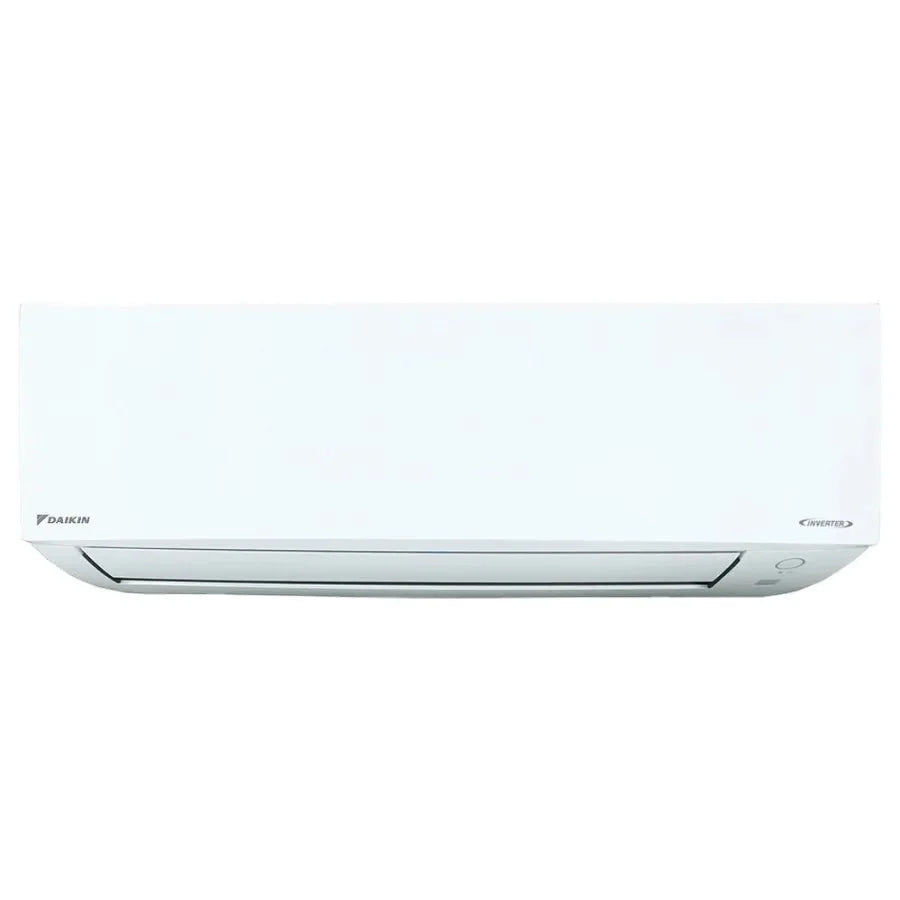

Daikin FTXC24AXVJU 24,000 BTU Entra Series Single Zone Wall Mounted Indoor Unit - R32

Product: FTXC24AXVJU

Description:

The Daikin FTXC24AXVJU is a wall-mounted indoor air-handler unit from Daikin’s Entra Series, designed for single-zone ductless mini-split heat pump systems. It works with an appropriate outdoor condenser (e.g., RXC09AXVJU) to deliver efficient cooling and heating using eco-friendly R-32 refrigerant.

Specifications:

• Model: Daikin FTXC24AXVJU (Indoor Unit) — Entra Series (R‑32 refrigerant)

• Type: Ductless wall‑mounted indoor heat pump unit for single‑zone system.

• Refrigerant: R‑32

• Color: White

Capacity & Performance

• Nominal Cooling Capacity: ~22,400 BTU/h (~2 ton)

• Cooling Capacity Range: ~6,900 – 24,200 BTU/h

• Nominal Heating Capacity: ~23,000 BTU/h

• Airflow: ~395 / 467 / 605 / 716 / 754 CFM (Quiet → Turbo)

• Dehumidification: ~7 pts/hr (varies by config)

Efficiency Ratings

• SEER2 (Cooling Efficiency): ~18.0

• EER2: ~10.5

• HSPF2 (Heating Efficiency): ~9.0

• COP (Heating Coefficient): ~3.4

Electrical

• Voltage: 208‑230 V, 60 Hz, Single‑Phase Rated Current: ~9.28 A (cooling) / ~8.6 A (heating)

• Min. Circuit Amps: ~16.3 A

• Max. Breaker Size: ~20 A

Indoor Unit Dimensions & Weight

• Width: ~39‑9/16 in (≈ 1005 mm)

• Height: ~11‑11/16 in (≈ 297 mm)

• Depth: ~11‑1/3 in (≈ 288 mm)

• Weight: ~30.5 lbs (≈ 13.8 kg)
