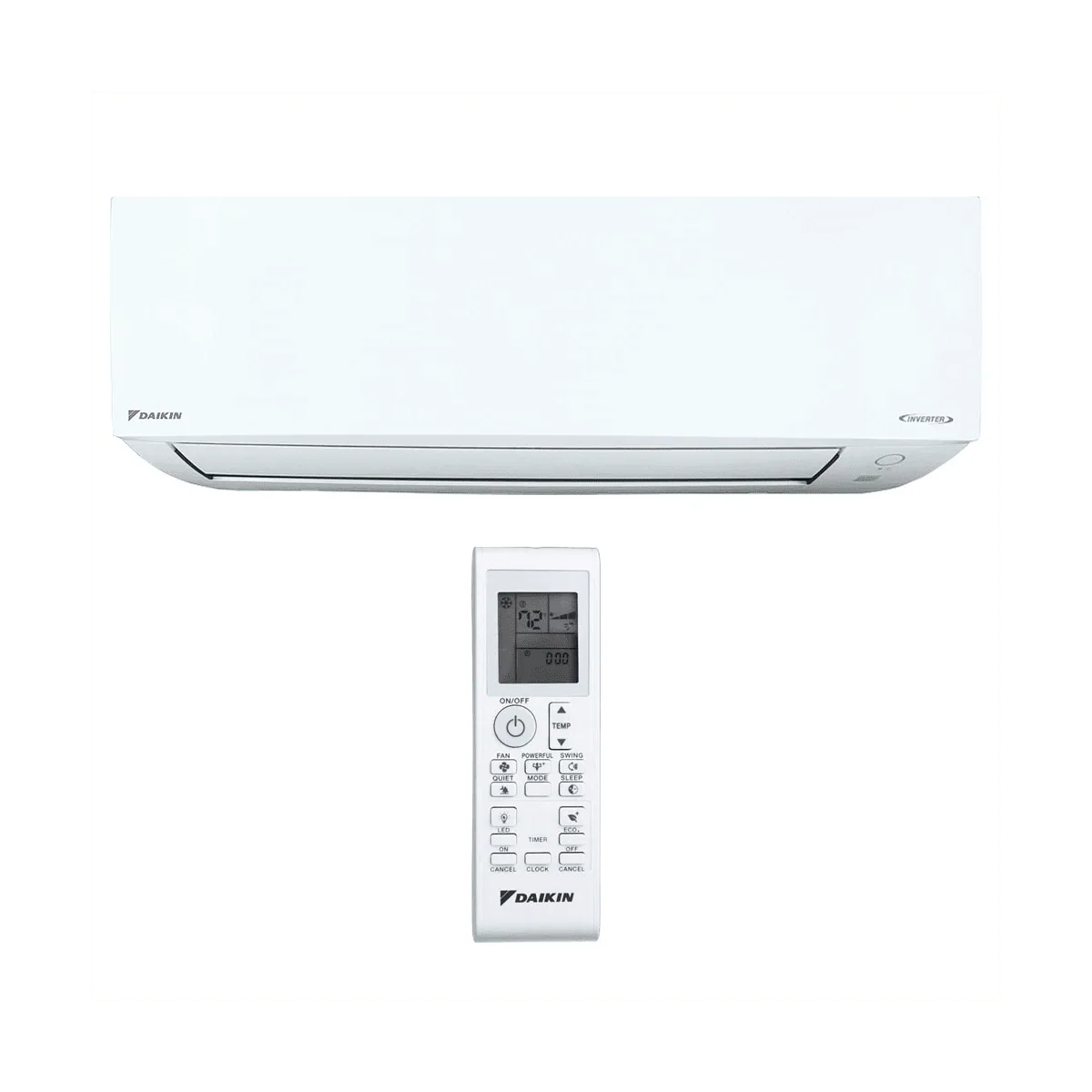

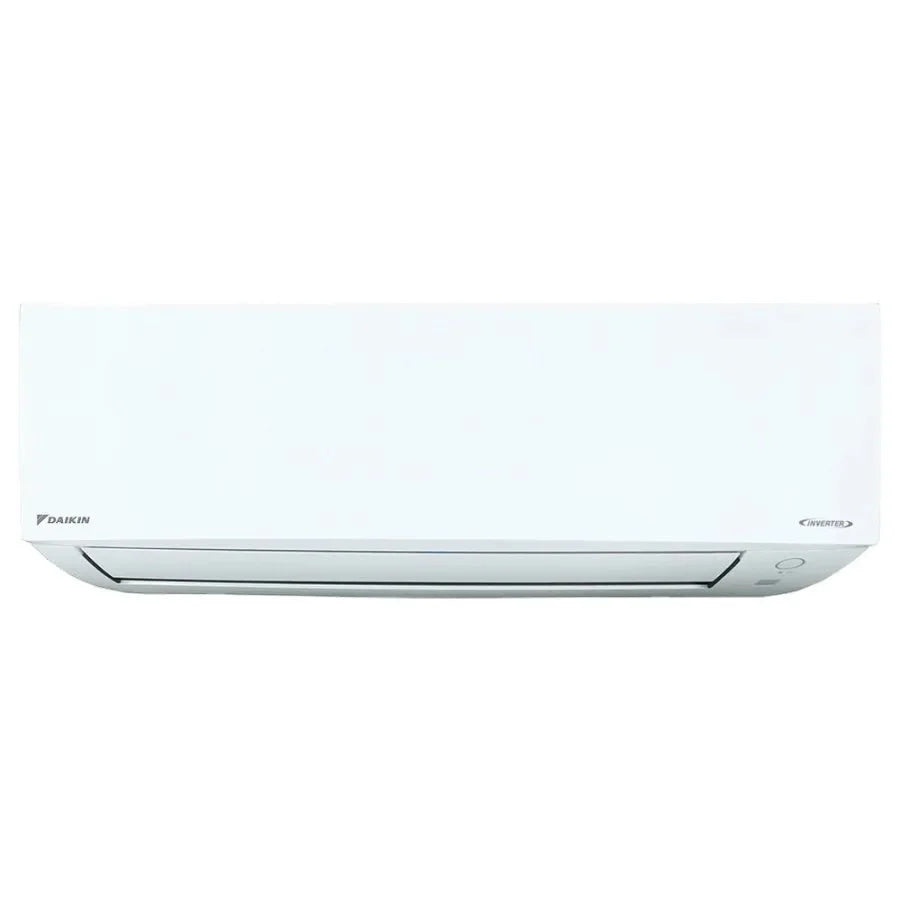

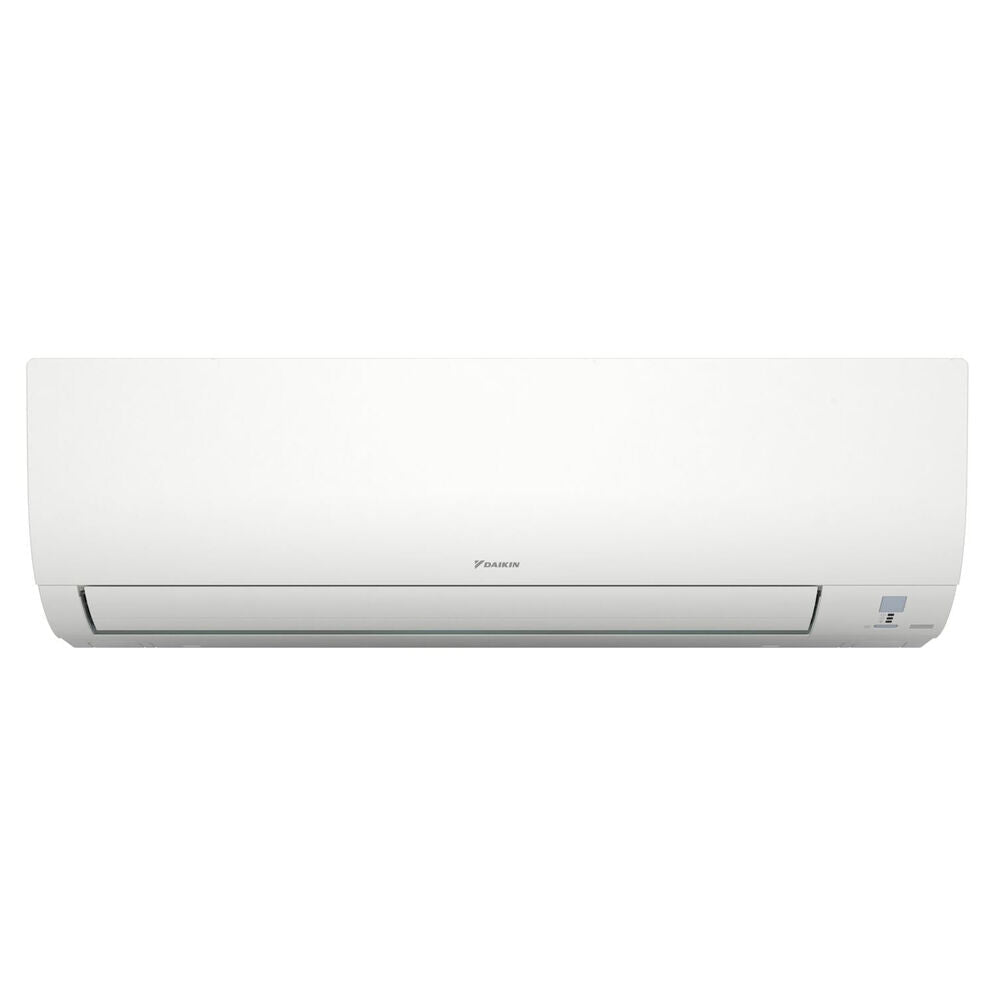

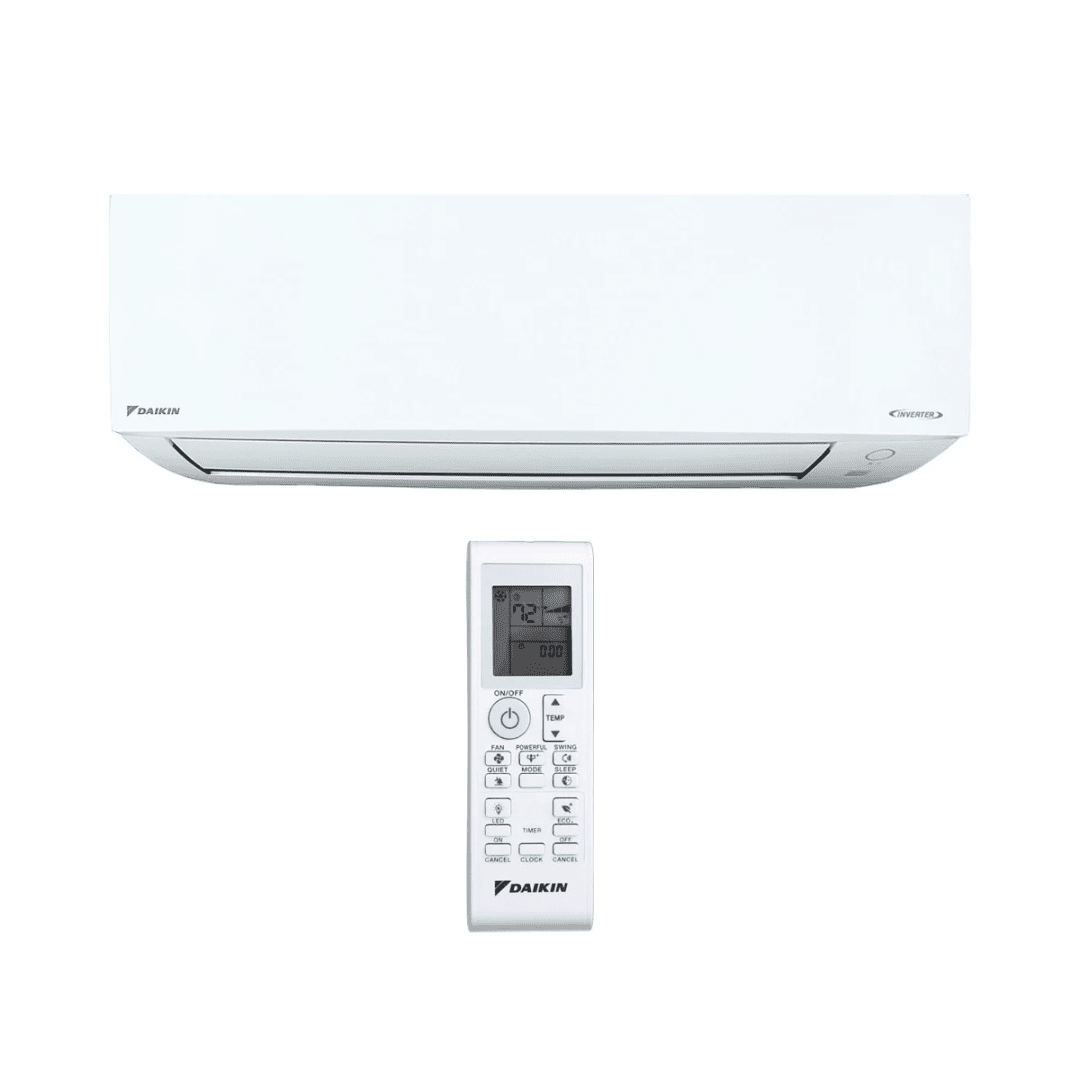

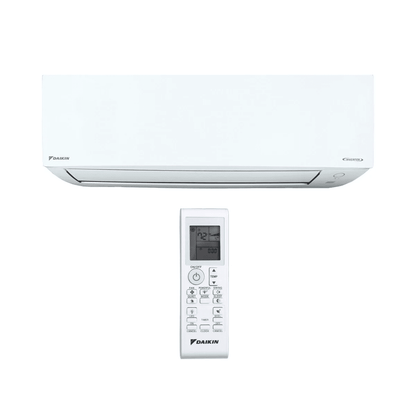

Daikin FTXC12AXVJU 12,000 BTU Entra Series Single Zone Wall Mounted Indoor Unit - R32

Product: FTXC12AXVJU

Description:

The Daikin FTXC12AXVJU is a wall-mounted indoor air-handler unit from Daikin’s Entra Series, designed for single-zone ductless mini-split heat pump systems. It works with an appropriate outdoor condenser (e.g., RXC09AXVJU) to deliver efficient cooling and heating using eco-friendly R-32 refrigerant.

Specifications:

Capacity & Performance

• Rated Cooling Capacity: ~12,000 BTU/h (~3.52 kW)

• Rated Heating Capacity: ~11,300 BTU/h (~3.31 kW)

• Cooling Range (Min–Max): ~4,400 – 13,300 BTU/h

• Heating Range (Min–Max): ~4,400 – 16,400 BTU/h

• Seasonal Energy Efficiency:
  • SEER2: 18.0
  • EER2: 8.5
  • HSPF2: 9.0

• COP (approx. at rated conditions): ~3.3

⚡ Electrical

• Voltage: 208 – 230 V, Single‑Phase, 60 Hz

• Rated Running Current: Cooling ~6.14 A / Heating ~4.36 A

• Min. Circuit Ampacity (MCA): ~9.36 A

• Max. Fuse / Breaker Size (MOCP): ~15 A

Airflow & Noise

• Airflow (Turbo): ~473 cfm

• Multi‑step airflow levels: ~436 / 316 / 247 / 132 cfm

• Indoor Sound Pressure (Cooling): ~19 – 45 dBA

• Indoor Sound Pressure (Heating): ~26 – 43 dBA

Refrigerant & Piping

• Refrigerant Type: R‑32

• Liquid Line Connection: 1/4 in (6.35 mm)

• Suction Line Connection: 3/8 in (9.52 mm)

• Condensate Drain Connection: 5/8 in (16 mm)

• Max. Interunit Piping Length: ~65.6 ft (20 m)

• Max. Height Difference (Indoor vs Outdoor): ~32.8 ft (10 m)

Dimensions & Weight

• Width: ~30‑5/16 in (770 mm)

• Height: ~11‑1/3 in (288 mm)

• Depth: ~9‑11/16 in (246 mm)

• Net Weight: ~20.9 lb (~9.5 kg)

• Packaged Weight: ~24.3 lb (~11 kg)
