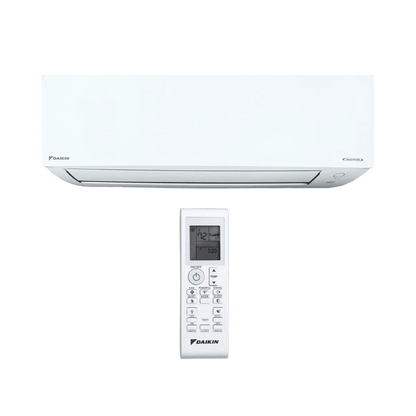

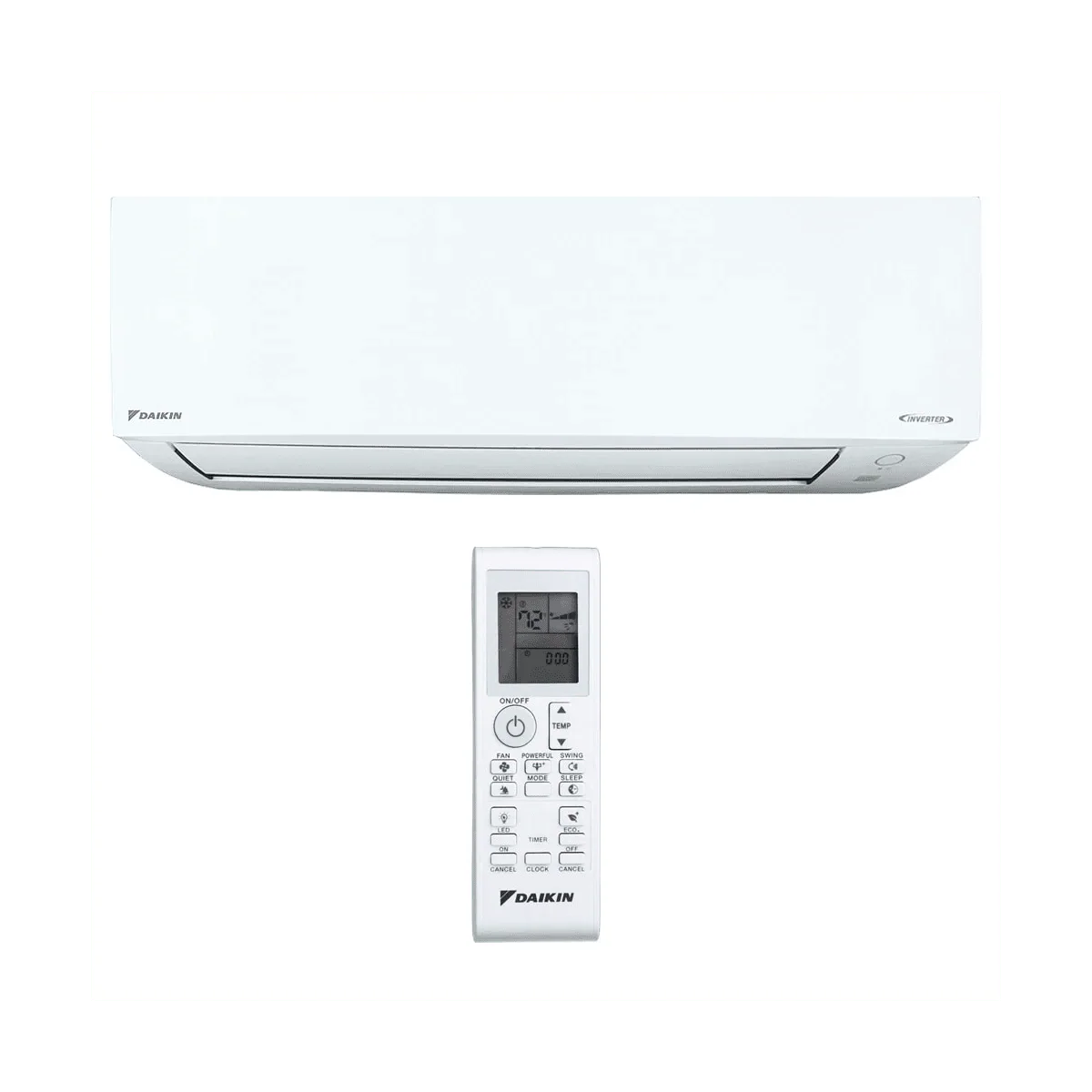

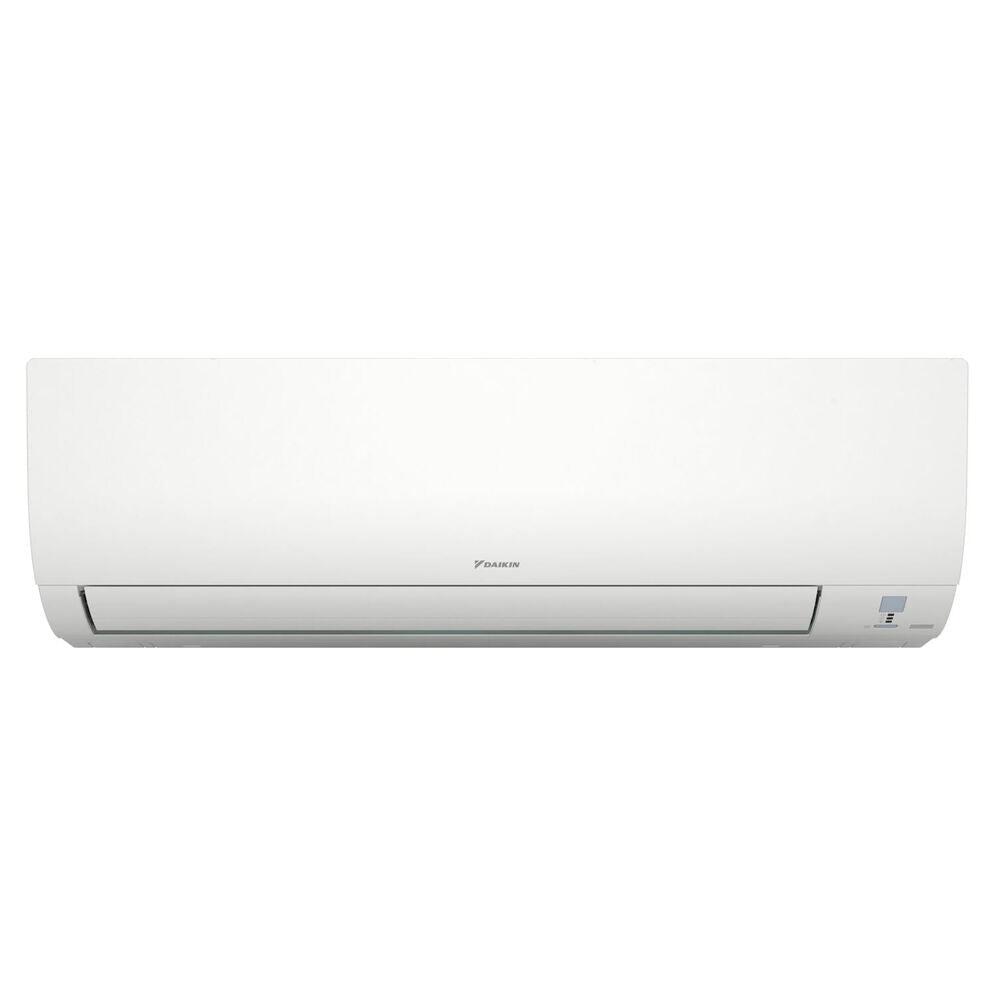

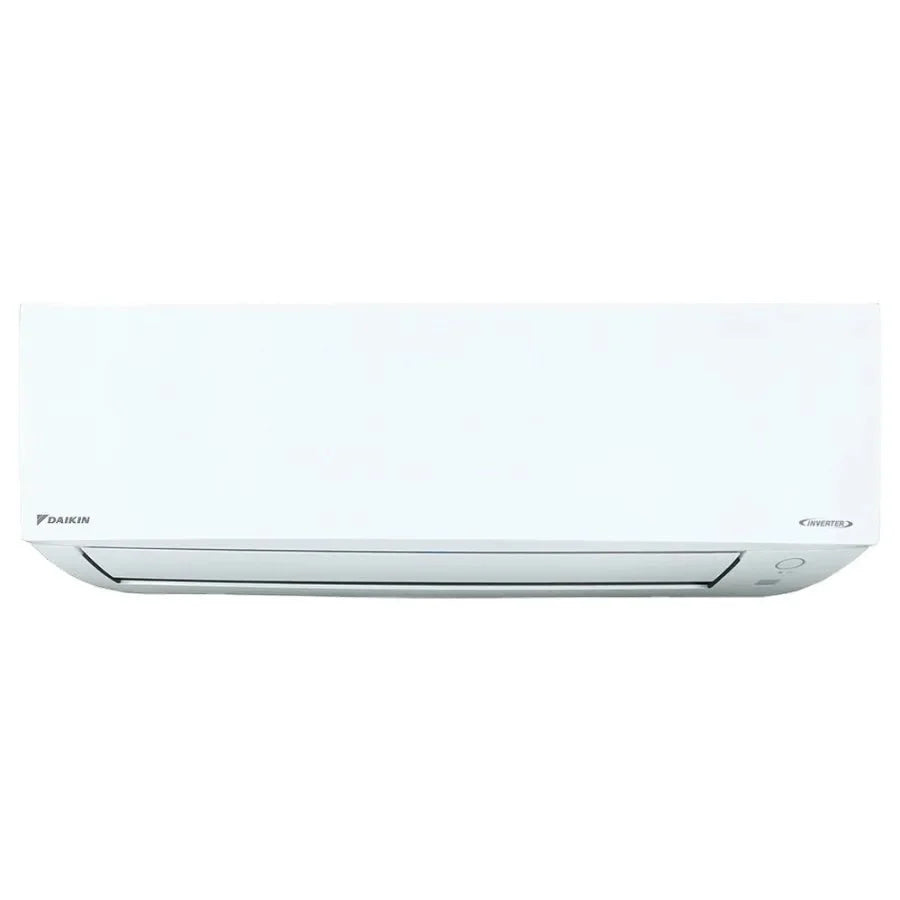

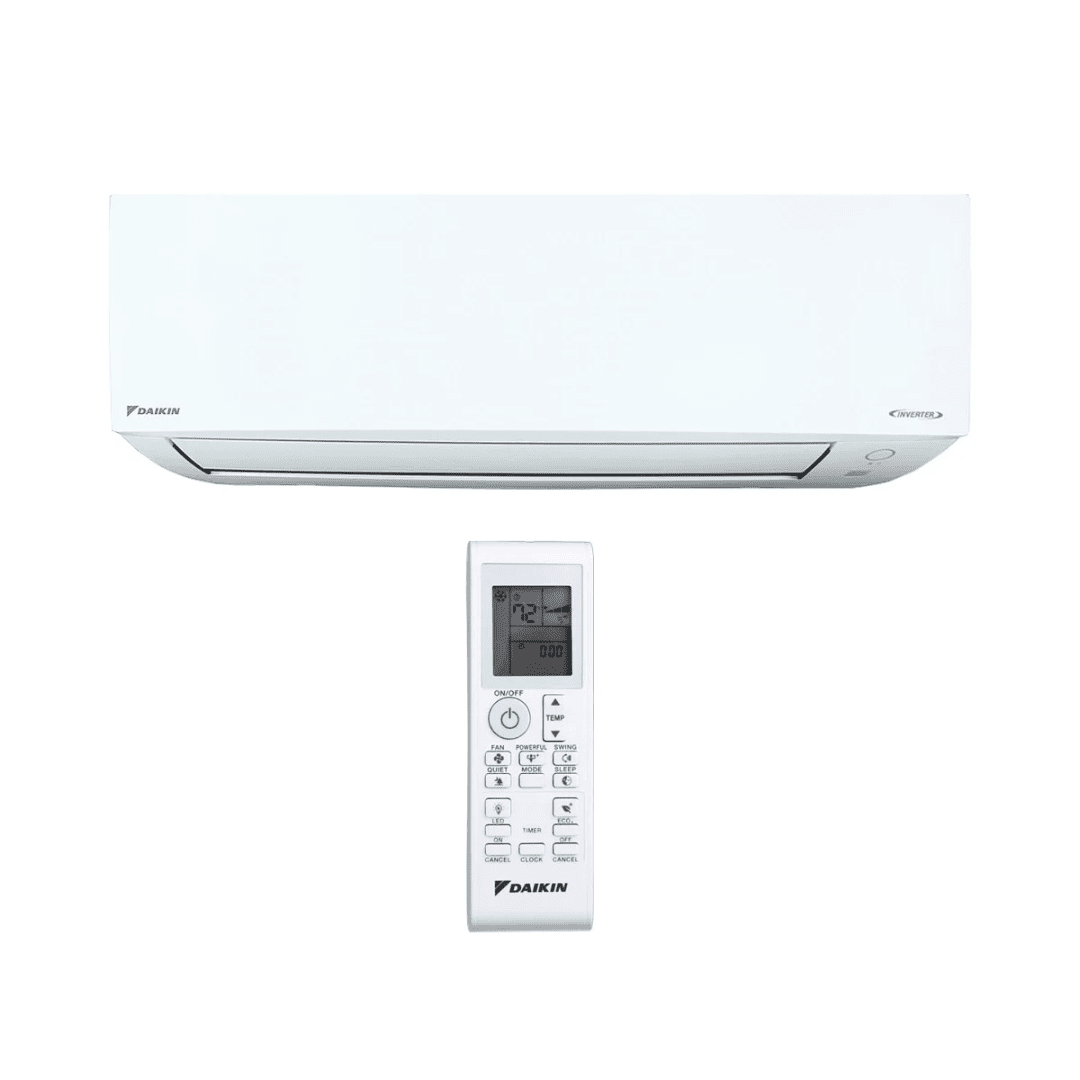

Daikin FTXC09AXVJU 9,000 BTU Entra Series Single Zone Wall Mounted Indoor Unit - R32

Product: FTXC09AXVJU

Description:

The Daikin FTXC09AXVJU is a wall-mounted indoor air-handler unit from Daikin’s Entra Series, designed for single-zone ductless mini-split heat pump systems. It works with an appropriate outdoor condenser (e.g., RXC09AXVJU) to deliver efficient cooling and heating using eco-friendly R-32 refrigerant.

Specifications:

• Cooling Capacity (Nominal): 9,000 BTU/h (~2.64 kW)

• Cooling Range (Min–Max): 4,400 – 10,200 BTU/h

• Heating Capacity (Nominal): 9,400 BTU/h (~2.75 kW)

• Heating Range (Min–Max): 4,400 – 13,000 BTU/h

• SEER2 (Cooling Efficiency): 18.0

• EER2: 11.0

• HSPF2 (Heating Efficiency): 9.0

• COP (Approx.): 3.6

⚡ Electrical

• Voltage: 208 – 230 V

• Frequency: 60 Hz

• Phase: Single-phase (1 ph)

• Rated Running Current: ~3.56 A (cooling) / ~3.33 A (heating)

• Min. Circuit Ampacity (MCA): ~9.3 A

• Max. Fuse / Breaker Size (MOCP): ~15 A

🌀 Airflow & Sound

• Airflow (Turbo): ~466 cfm

• Airflow (High): ~431 cfm

• Airflow (Medium): ~322 cfm

• Airflow (Low): ~249 cfm

• Airflow (Quiet): ~142 cfm

• Sound Pressure Level (Cooling): ~19-43 dBA (Q/L/M/H)

• Sound Pressure Level (Heating): ~25-42 dBA (varies by fan speed)

Weights and Dimensions

• Width (in.):30.313
• Depth (in.):9.188
• Height (in.):11.333
• Weight (lbs.):19.8
