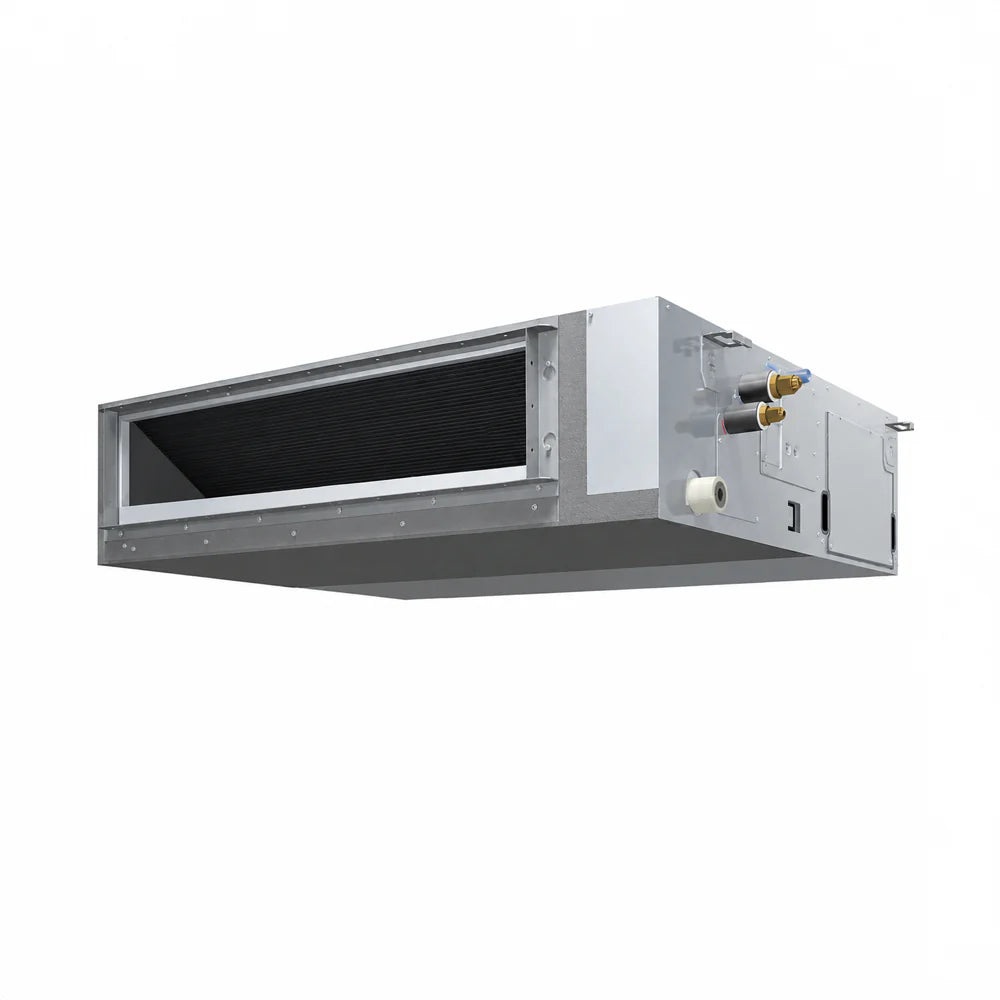

Daikin FDMA18AVJU9 18000 BTU Aurora Concealed Ducted Air Handler Single Zone R32

The Daikin FDMA18AVJU9 is a 1.5-ton (18,000 BTU) concealed ducted air handler from Daikin's Aurora FDMA series, designed for single-zone applications requiring higher-capacity hidden climate control delivered entirely through the building structure. Rated up to 18.3 SEER2, 9.2 HSPF2, and 11.8 EER2, the FDMA18AVJU9 is one of the larger units in the Aurora FDMA lineup — available in 7K, 9K, 12K, 15K, 18K, and 24K capacities — and is well matched to larger open-plan living areas, primary suites, commercial suites, server rooms, and multi-register residential zones in the 600–900 square foot range where concealed delivery, extreme climate reliability, and integration with Daikin's building management ecosystem are all required.

Extreme Climate Heating and Cooling Performance

The FDMA18AVJU9 is rated for full-capacity operation across an outdoor ambient range that covers virtually every climate in the continental United States. Cooling capacity holds at 100% up to 104°F (40°C) with operational capability extending to 115°F (46°C), providing dependable performance through the most extreme summer heat in Southern, Gulf Coast, and desert Southwest markets. Heating capacity remains at 100% down to 5°F (-15°C) with continued efficient operation to -13°F (-25°C) and extended heating achievable to -4°F (-20°C) through facility settings and air adjustment grille configuration — covering cold-climate markets in the upper Midwest, mountain West, and Northeast without auxiliary heat dependence during most winter conditions. The redesigned outdoor unit PCB is engineered to withstand the thermal cycling, moisture exposure, and electrical stress of these extreme operating conditions over years of service.

Concealed Ducted Installation with 0.6" Static Capability

The FDMA18AVJU9 installs above ceilings, within attic spaces, or inside wall chases, delivering conditioned air through ductwork to supply registers while keeping all mechanical equipment completely concealed. At 1.5-ton capacity, external static pressure support up to 0.6 inches WG (150 Pa) is critical — larger zones typically require longer duct runs, more supply registers, and higher-resistance distribution layouts that would push lower-rated concealed units beyond their static limits. The integral lift mechanism simplifies overhead installation and future service access in tight ceiling cavities, while the drain pan inspection port allows condensate system checks without requiring full unit removal from the installation space.

Quiet Indoor Operation

Indoor sound pressure levels reach as low as 32 dB(A) — a notable achievement at 1.5-ton capacity where higher airflow volumes create greater acoustic challenges than smaller units. This performance makes the FDMA18AVJU9 appropriate for master bedroom suites, executive conference rooms, boutique hotel accommodations, dental and medical offices, recording studios, and any application where mechanical noise must remain below perceptible thresholds. Outdoor sound pressure levels reach as low as 50 dB(A).

Inverter Technology and Comfort Features

The swing inverter compressor provides continuous variable-speed modulation, precisely matching system output to actual space load at all times. At 1.5-ton capacity serving larger zones, this capability is especially important for latent heat management — a fixed-speed 18K unit that short-cycles on mild days will fail to run long enough to adequately dehumidify the space, while the inverter compressor can operate at reduced capacity for extended runtimes, pulling moisture from the air even when the sensible cooling load is modest. Auto Fan Speed control (with wired controller) manages airflow volume automatically in response to real-time conditions.

Quick Warming Function delivers accelerated temperature recovery during cold-weather startup. Hot Start Function prevents the indoor unit from circulating air before the heat exchanger reaches operating temperature, eliminating the uncomfortable cold draft during heating startup. Automatic Defrosting maintains outdoor coil performance through cold weather without manual intervention or comfort interruption. Program Dry Function addresses excess humidity independently of cooling output, making it particularly effective during humid shoulder seasons when cooling demand is low but indoor moisture levels remain elevated. Auto Changeover transitions between heating and cooling modes automatically as outdoor and indoor conditions shift. Anti-Corrosion Heat Exchanger Treatment protects coil integrity in high-humidity, coastal, and high-particulate indoor environments, and Auto Restart After Power Failure restores previous operating settings automatically following any power interruption.

Controls and Building Integration

The FDMA18AVJU9 requires the BRC1NRV71 wired remote controller for all operation — the unit is not compatible with infrared remote controllers or any third-party thermostat or control system. The BRC1NRV71 provides self-diagnostics with digital fault code display, reducing service call diagnostic time and labor cost. Native DIII-NET connectivity integrates directly into Daikin's centralized building management platform without an optional adapter, DKN Cloud Wi-Fi Adaptor compatibility enables remote monitoring and control via smartphone or web interface, and Daikin Zoning Kit (DZK) compatibility supports coordinated multi-zone scheduling across properties managing multiple FDMA units simultaneously. These capabilities make the FDMA18AVJU9 a strong fit for multi-unit residential buildings, hospitality and boutique hotel properties, medical and professional office buildings, and light commercial facilities requiring centralized HVAC oversight across multiple zones.

Compatible Accessories:

• Wired Remote Controller (required): BRC1NRV71
• Centralized Management Controller: DCS302C71
• Schedule Timer Controller: DST301BA61
• Remote Sensor: KRCS01-6B
• Wiring Adaptor: KRP1C76

Warranty: 12-year limited parts warranty. Online registration must be completed within 60 days of installation to qualify.

Specifications at a Glance:
