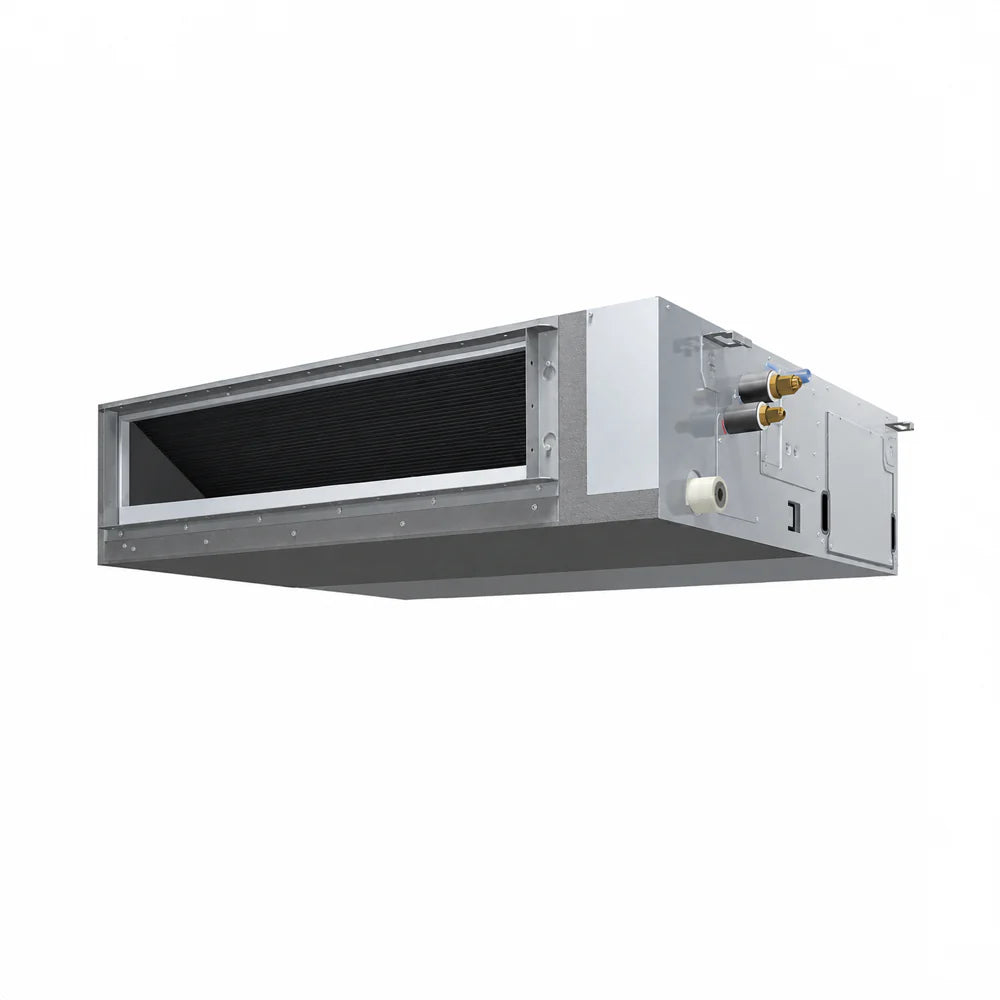

Daikin FDMA15AVJU9 15000 BTU Aurora Concealed Ducted Air Handler Single Zone R32

The Daikin FDMA15AVJU9 is a 1.25-ton (15,000 BTU) concealed ducted air handler from Daikin's Aurora FDMA series, engineered for single-zone installations requiring above-average capacity delivery through a fully hidden duct system. Rated up to 18.3 SEER2, 9.2 HSPF2, and 11.8 EER2, the FDMA15AVJU9 occupies a practical capacity position in the Aurora FDMA lineup — available in 7K, 9K, 12K, 15K, 18K, and 24K sizes — bridging the gap between standard 1-ton and 1.5-ton equipment for spaces where 12K falls short but 18K would oversize the system. It is well suited for larger bedrooms, open-plan living areas, sunrooms, home offices, and light commercial suites in the 500–700 square foot range where concealed delivery, extreme climate reliability, and Daikin building management integration are required.

Extreme Climate Heating and Cooling Performance

The FDMA15AVJU9 maintains 100% cooling capacity at 104°F (40°C) outdoor ambient with operational capability extending to 115°F (46°C) — providing dependable performance in hot Southern, Gulf Coast, desert, and high-heat urban environments where summer temperatures routinely stress conventional equipment. On the heating side, full capacity holds at 5°F (-15°C) ambient with continued efficient operation down to -13°F (-25°C), and extended heating operation is achievable to -4°F (-20°C) through facility settings and air adjustment grille configuration. This wide operational envelope makes the FDMA15AVJU9 a legitimate four-season solution in climates ranging from the deep South to the upper Midwest and mountain West. The redesigned outdoor unit PCB provides enhanced resistance to temperature extremes and weather exposure that can compromise conventional control electronics over time.

Concealed Ducted Installation with 0.6" Static Capability

The FDMA15AVJU9 installs within ceiling cavities, attic spaces, or interior wall chases, delivering conditioned air through ductwork to supply registers while keeping all mechanical equipment completely out of view. External static pressure capability up to 0.6 inches WG (150 Pa) supports duct systems with multiple registers, longer distribution runs, or higher-resistance layouts — accommodating the kind of duct complexity that comes with serving larger or irregularly shaped spaces at 1.25-ton capacity. The integral lift mechanism simplifies overhead installation and future repositioning for service, while the drain pan inspection port allows condensate system maintenance without requiring full unit removal from the ceiling cavity.

Quiet Indoor Operation

Indoor sound pressure levels reach as low as 32 dB(A), keeping mechanical noise below the threshold of most occupied environments. At 1.25-ton capacity — where airflow volumes are higher than smaller units — maintaining this sound level requires deliberate acoustic engineering, making the FDMA15AVJU9 a strong choice for master suites, executive offices, boutique hotel rooms, and medical or wellness spaces where audible HVAC is unacceptable. Outdoor sound pressure levels reach as low as 50 dB(A).

Inverter Technology and Comfort Features

The swing inverter compressor modulates output continuously to match actual space load, avoiding the temperature swings and energy spikes of fixed-speed equipment. At 1.25-ton capacity serving mid-size spaces, this precision is particularly valuable — the inverter's ability to operate at partial load during mild conditions prevents the short-cycling and inadequate dehumidification that can occur when a fixed-speed system is slightly oversized for its zone. Auto Fan Speed control (with wired controller) manages airflow automatically in response to changing conditions throughout the day.

Quick Warming Function delivers rapid temperature recovery at cold-weather startup. Hot Start Function prevents the indoor unit from circulating air until the heat exchanger has reached operating temperature, eliminating the cold draft common during heating startup on conventional systems. Automatic Defrosting manages outdoor coil frost accumulation without manual intervention or comfort interruption. Program Dry Function controls excess humidity independently of cooling output — particularly useful during humid spring and fall shoulder seasons. Auto Changeover transitions between heating and cooling modes automatically, Anti-Corrosion Heat Exchanger Treatment protects coil integrity in high-humidity and coastal environments, and Auto Restart After Power Failure restores previous operating settings following any outage without requiring manual reprogramming.

Controls and Building Integration

Operation requires the BRC1NRV71 wired remote controller, sold separately — the FDMA15AVJU9 is not compatible with infrared remotes or any third-party thermostat. The controller provides self-diagnostics with digital fault code display for streamlined service and troubleshooting. Native DIII-NET connectivity enables direct integration into Daikin's centralized building management systems without an optional adapter. DKN Cloud Wi-Fi Adaptor compatibility supports remote monitoring and control, and Daikin Zoning Kit (DZK) compatibility enables coordinated multi-zone scheduling across properties running multiple FDMA units — making this unit appropriate for multi-unit residential buildings, hospitality properties, medical offices, and light commercial facilities managing several zones from a single platform.

Compatible Accessories:

• Wired Remote Controller (required): BRC1NRV71
• Centralized Management Controller: DCS302C71
• Schedule Timer Controller: DST301BA61
• Remote Sensor: KRCS01-6B
• Wiring Adaptor: KRP1C76

Warranty: 12-year limited parts warranty. Online registration must be completed within 60 days of installation to qualify.

Specifications at a Glance:
