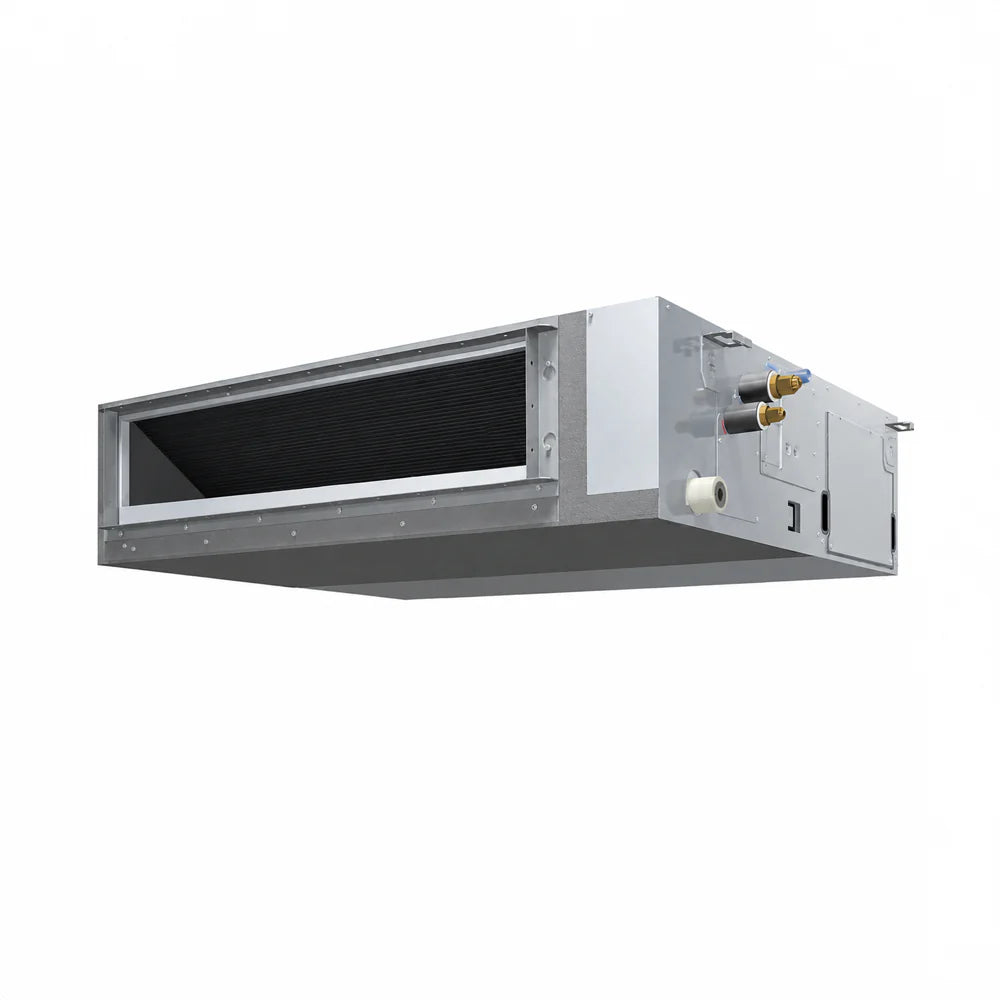

Daikin FDMA09AVJU9 9000 BTU Aurora Concealed Ducted Air Handler Single Zone R32

The Daikin FDMA09AVJU9 is a 9,000 BTU (0.75-ton) concealed ducted air handler from Daikin's Aurora FDMA series, designed for single-zone ductless installations where all mechanical equipment must remain hidden within the building structure. Rated up to 18.3 SEER2, 9.2 HSPF2, and 11.8 EER2, this unit delivers high-efficiency heating and cooling through short duct runs to ceiling or wall registers while keeping the occupied space completely free of visible HVAC equipment. Part of the Aurora FDMA series available in 7K, 9K, 12K, 15K, 18K, and 24K capacities, the FDMA09AVJU9 is engineered for residential and light commercial applications demanding concealed installation, extreme climate reliability, and compatibility with Daikin's building management ecosystem.

Extreme Climate Heating and Cooling Performance

The Aurora FDMA09AVJU9 is rated for full-capacity operation across a wide ambient temperature range that outperforms conventional mini split equipment. It maintains 100% cooling capacity at 104°F (40°C) outdoor ambient with operational cooling capability extending to 115°F (46°C) — essential for reliable performance in hot Southern, desert, and Southwestern climates. On the heating side, the unit delivers 100% heating capacity at 5°F (-15°C) and continues efficient operation down to -13°F (-25°C), with extended heating operation achievable to -4°F (-20°C) through facility settings and air adjustment grille configuration. A redesigned outdoor unit PCB provides enhanced durability against extreme temperature and weather conditions that can damage conventional control boards over time.

Concealed Ducted Installation with 0.6" Static Capability

The FDMA09AVJU9 is designed to install above ceilings, within attic spaces, or inside wall cavities, distributing conditioned air through ductwork to one or more supply registers while maintaining a completely clean room aesthetic with no visible indoor unit. All FDMA models support external static pressures up to 0.6 inches WG (150 Pa), accommodating installations with longer duct runs, multiple registers, or higher-resistance distribution layouts that would exceed the static pressure limits of lower-rated concealed units. An integral lift mechanism simplifies overhead installation and future maintenance access, while a dedicated drain pan inspection port allows service checks without requiring full unit removal from the ceiling cavity.

Quiet Indoor Operation

Indoor sound pressure levels reach as low as 32 dB(A) — quieter than most library reading rooms — making the FDMA09AVJU9 an appropriate choice for bedrooms, home offices, hotel guest rooms, medical offices, and other environments where audible HVAC equipment would be disruptive. Outdoor sound pressure levels reach as low as 50 dB(A).

Inverter Technology and Comfort Features

Swing inverter compressor technology enables continuous variable-speed modulation, matching system output precisely to the actual heating or cooling load rather than cycling on and off at fixed capacity. This approach delivers stable, consistent indoor temperatures, lower energy consumption during partial-load conditions, and quieter operation compared to single-stage equipment. Auto Fan Speed control (available with the wired controller) automatically adjusts airflow volume to maintain target comfort levels without manual intervention. Quick Warming Function accelerates temperature rise at startup during cold weather conditions, and Hot Start Function prevents the indoor unit from circulating cold air during the heating warm-up period. Automatic Defrosting maintains outdoor coil efficiency throughout cold weather operation.

Program Dry Function manages excess humidity independently of aggressive cooling, Auto Changeover switches between heating and cooling modes automatically as conditions require, Anti-Corrosion Heat Exchanger Treatment extends coil service life in humid and coastal environments, and Auto Restart After Power Failure restores previous operating settings following any power interruption.

Controls and Building Integration

The FDMA09AVJU9 requires the BRC1NRV71 wired remote controller for operation, sold separately — the unit is not compatible with standard infrared remotes or third-party thermostats. The controller's integrated self-diagnostics with digital display enables rapid fault code identification during service calls, reducing diagnostic time and labor cost. The system connects natively to Daikin's DIII-NET building management platform without an optional adapter, supports the DKN Cloud Wi-Fi Adaptor for remote monitoring and control, and is compatible with the Daikin Zoning Kit (DZK) for multi-zone scheduling and management. These integration capabilities make the FDMA09AVJU9 well suited for multi-unit residential buildings, boutique hospitality properties, and light commercial spaces managing HVAC across multiple zones from a central system.

Compatible Accessories:

• Wired Remote Controller (required): BRC1NRV71
• Centralized Management Controller: DCS302C71
• Schedule Timer Controller: DST301BA61
• Remote Sensor: KRCS01-6B
• Wiring Adaptor: KRP1C76

Warranty: 12-year limited parts warranty. Online registration must be completed within 60 days of installation to qualify.
