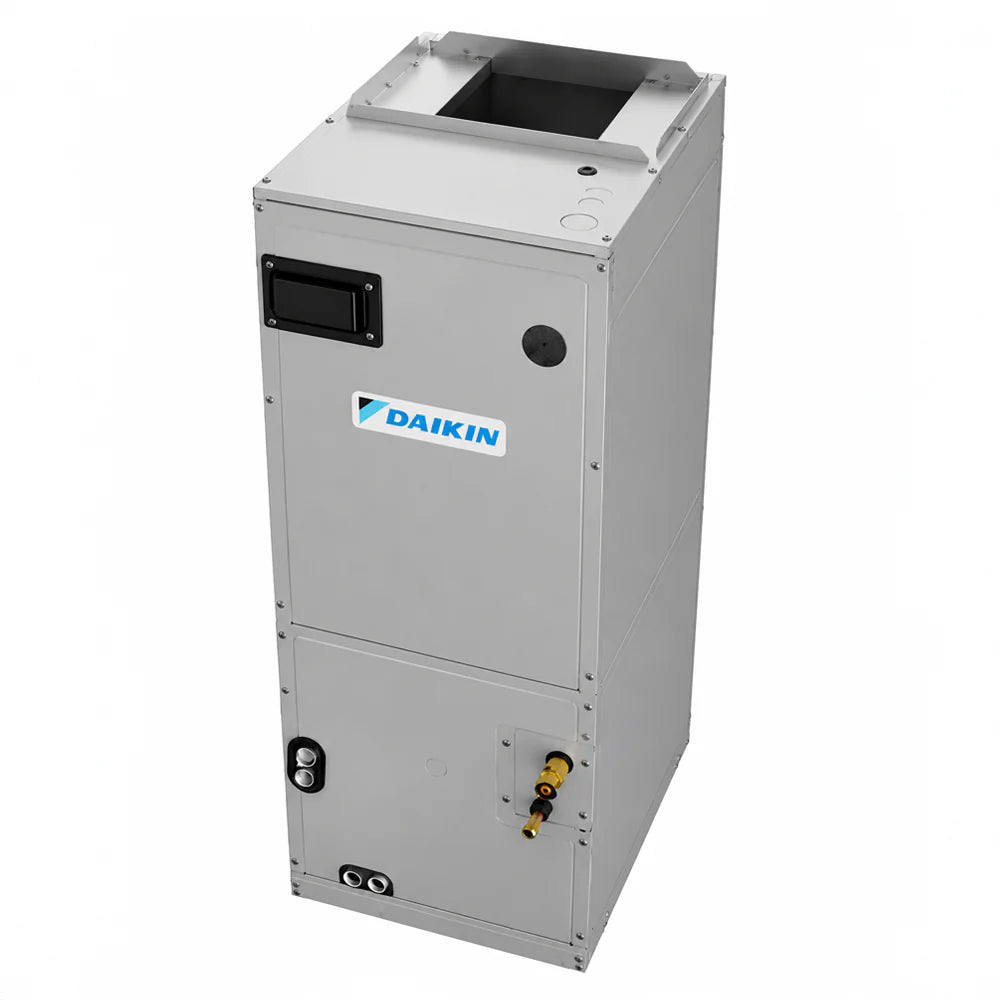

Daikin CMXV18AVJUA 1.5 Ton Multi-Position Air Handler with ECM Motor R32 Compatible

The Daikin CMXV18AVJUA is a 1.5-ton (18,000 BTU) multi-position air handler built for flexible ducted split system installations requiring variable-speed performance, durable coil construction, and dedicated Daikin smart thermostat integration. Part of the CMXV series available in 12K, 18K, and 24K capacities, this 208/230V air handler is designed for residential applications where installation orientation options, consistent airflow delivery, and R32 refrigerant compatibility are required.

Multi-Position Installation Flexibility

The CMXV18AVJUA supports four installation orientations to fit a wide range of mechanical closet, attic, basement, and crawl space configurations. Up-flow and horizontal left orientations are supported without any additional accessories. Down-flow and horizontal right configurations require the separately purchased Downflow Kit (DFKE-02), giving contractors and installers the flexibility to adapt to nearly any residential duct layout.

ECM Variable-Speed Blower Motor

The electronically commutated motor (ECM) blower maintains constant CFM across a wide range of static pressure conditions regardless of duct system variations. Where conventional PSC motors lose airflow performance as static pressure rises, the ECM automatically compensates — delivering consistent air volume through tight duct runs, heavily filtered systems, or longer distribution networks. The practical benefits include more even room-to-room comfort, quieter blower operation, improved latent heat removal during humid conditions, and meaningfully lower blower energy consumption over the life of the system.

All-Aluminum Evaporator Coil

The all-aluminum evaporator coil eliminates the galvanic and formicary corrosion risks associated with traditional copper-aluminum coil construction. In high-humidity climates and environments with elevated volatile organic compound exposure — common in new construction and renovated spaces — all-aluminum coils provide significantly longer service life and reduce the risk of refrigerant leaks from coil degradation.

R32 Refrigerant Compatible

The CMXV18AVJUA is designed for use with R32 refrigerant, which offers improved thermodynamic efficiency compared to R410A and carries a substantially lower global warming potential. R32 compatibility positions this installation ahead of ongoing regulatory shifts away from higher-GWP refrigerants.

Daikin ONE Smart Thermostat Required

The CMXV18AVJUA operates exclusively with Daikin's proprietary smart thermostat platform. It is compatible only with the Daikin ONE+ (DTST-CWBSA) and Daikin ONE Touch (DTST-TOU-A) — both sold separately and required to complete the system. The unit will not function with conventional or third-party thermostats. Smart thermostat software version 3.9 or newer is required. A wired thermostat connection is required; wireless-only configurations are not supported. This closed integration enables full system-level communication for optimized variable-speed performance and efficiency reporting.

Electric Heat Kit Options

Heater kits are available in 3, 5, 8, and 10kW capacities for installations requiring supplemental or primary electric heat, making the CMXV18AVJUA a viable solution for all-electric residential systems in mild to moderate heating climates.

Compatible Accessories:

• High Humidity Kit: HHK0001
• Condensate Kit: CMK0015
• Downflow Kit: DFKE-02
• Daikin ONE+: DTST-CWBSA
• Daikin ONE Touch: DTST-TOU-A

Warranty: 12-year limited parts warranty. Online registration must be completed within 60 days of installation to qualify.

Specifications at a Glance:
