Daikin, Aurora R-32 2 Zone Multi Split With Drain Pan Heater, 2MXTH18AVJU9

Model: 2MXTH18AVJU9

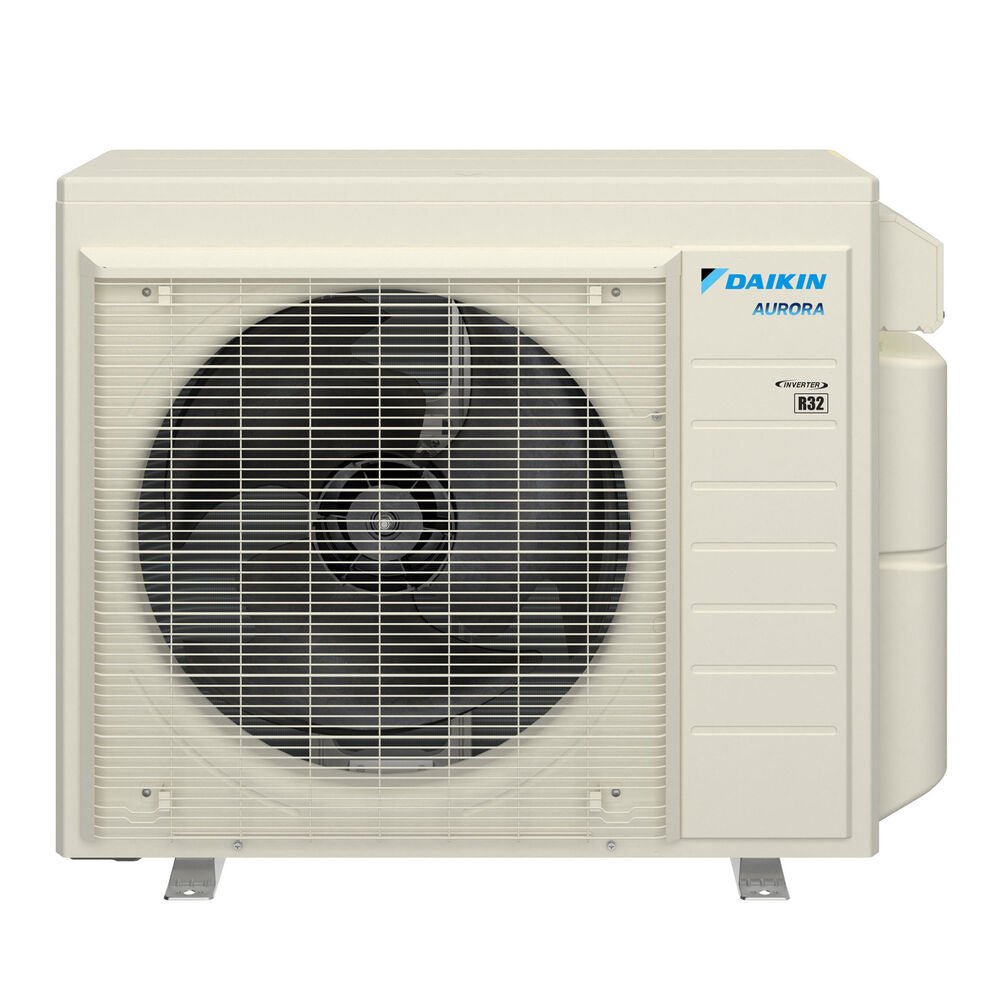

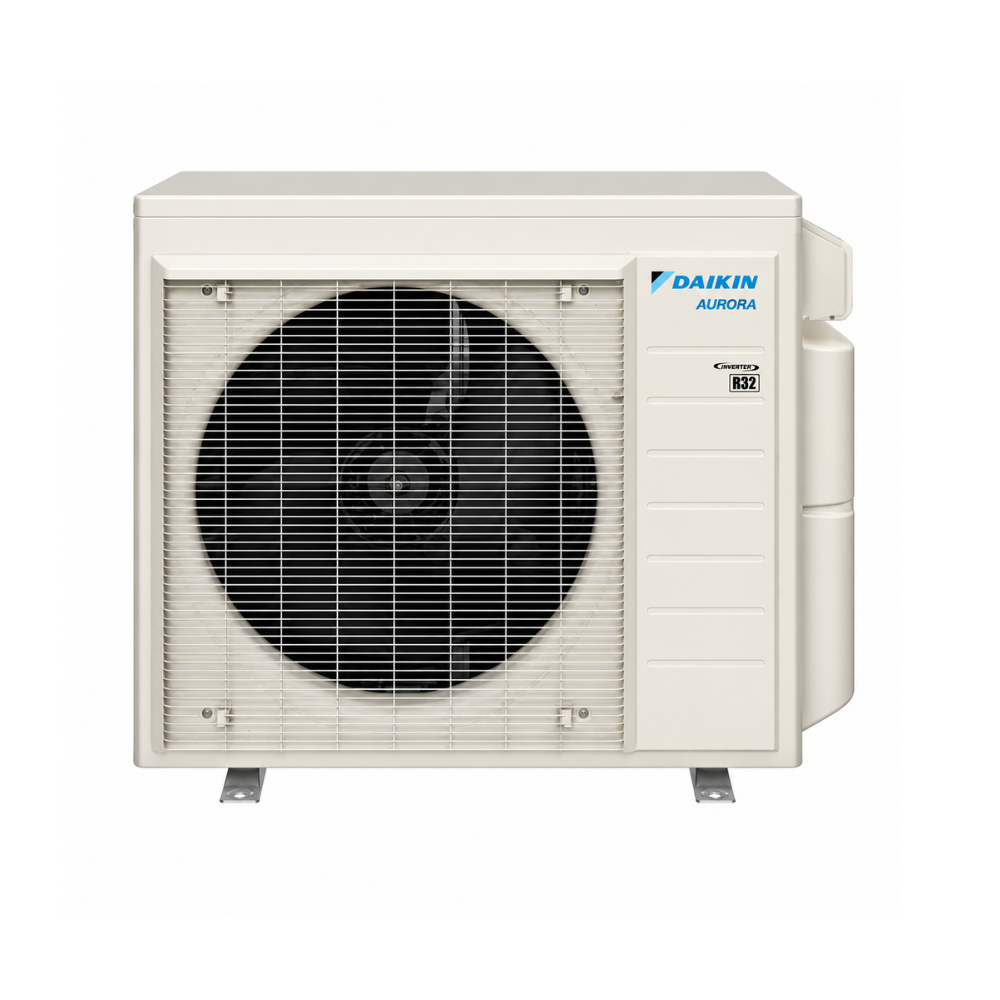

Aurora R-32 2-Zone Multi-Split Outdoor Unit (with Built-In Drain Pan Heater)

The Daikin 2MXTH_AVJU9 is a high-efficiency, dual-zone outdoor heat pump system from the Aurora Series, designed for year-round comfort in challenging climates. This 1.5-ton outdoor unit supports up to two indoor zones and includes a factory-installed drain pan heater for reliable cold-weather operation.

This model uses R-32 refrigerant, offers ENERGY STAR® certified performance, and is engineered for quiet, efficient heating and cooling. With inverter compressor technology and intelligent control features, it delivers targeted comfort while reducing energy waste.

Key Benefits

• Two-zone enhanced capacity multi-split system

• Energy-efficient operation

• Quiet outdoor operation with Night Quiet Mode

• Built-in drain pan heater for freeze protection

• Automatic defrost and quick warming function in heating

• Priority Room Setting feature to send capacity where it’s needed most

• Cooling/Heating mode lock option for application control

• Self-diagnosis with LED indication and wiring error check function

• Anti-corrosion treatment on the outdoor heat exchanger

• 12-Year Limited Parts Warranty with online registration

Performance

• Rated Cooling Capacity: 17,200 BTU/h

• Rated Heating Capacity: 18,000 BTU/h

• Inverter-driven swing compressor for smooth, efficient modulation

• Automatic defrosting for reliable winter performance

• ENERGY STAR® Certified

Airflow (Outdoor Unit)
Cooling Mode:

• High: 2,462 ft³/min

• Low: 1,911 ft³/min

Heating Mode:

• High: 2,140 ft³/min

• Low: 1,070 ft³/min

Electrical

• Power Supply: 208–230V

• Phase: 1 Ph

• Frequency: 60 Hz

• Minimum Circuit Amps: 19.6

Refrigerant

• Refrigerant Type: R-32 (high efficiency, lower GWP than R-410A)

Physical

• Width: 34-1/4 in

• Height: 29-1/2 in

• Depth: 12-5/8 in

• Weight: 140 lb

• Line Set Sizes:

  • Liquid Line: 1/4 in

  • Gas Line: 3/8 in

Application
This outdoor unit is part of Daikin’s Aurora R-32 2 Zone Multi Split family and is intended for multi-split heat pump installations. It is ideal for light commercial or residential projects where you want independent comfort control in two separate areas without installing or extending ductwork.

Additional Details

• Unit Type: Outdoor

• Product Class: Multi-Split Heat Pump

• Tonnage: 1.5 Ton

• Country of Origin: Mexico

• Pallet Quantity: 8 per pallet

Warranty
12-Year Limited Parts Warranty with online registration.

Note: Must be installed by a qualified, licensed HVAC technician.

Specifications:

2 Zone enhanced Capacity Multi-Zone
Night Quiet Mode
Automatic Defrost
Quick Warming Function
Automatic Defrosting
Priority Room Setting
Cool/Heat mode lock
Self Diagnosis
Wiring error check function
Anti-corrosion treatment of outdoor
heat exchanger
Built in Drain Pan Heater

Product Attributes:

Airflow Rate High Cooling: 2462
Airflow Rate High Heating: 2140
Airflow Rate Low Cooling: 1911
Airflow Rate High Heating: 1070
Brand: Daikin
Class: Multi-Split Heat Pump
Compressor Stages: Inverter
Compressor Type: Swing
Cooling Capacity Rated: 17200
Unit Depth: 12-5/8
Unit Height: 29-1/2
Unit Width: 34-1/4
Family Description: Aurora R-32 2 Zone Multi Split With Drain Pan Heater
Heating Capacity Rated: 18000
keywords: 2MXTH18AVJU9
Min. Circuit: 19.6
Power Frequency: 60
Power Phase: 1
Power Voltage: 208-230
Product Benefits: PAM control
Energy efficient operation
Quiet outdoor unit operation
Unit perfroms self diagnosis and indicates using LED lights
12 Year Limited Parts Warranty w/ online registration
Category: Multi-Split Heat Pump
Family: 2MXTH_AVJU9
Product ID Bar Code: 2MXTH18AVJU9
Prop65 Label Required: TRUE
Refrigerant: R-32
Tonnage: 1.5 tons
Unit Type: Outdoor
Unit Weight: 140

Warranty:

Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 12 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 12 YEARS PARTS
Registered parts, commercial: ALL PARTS - 5 YEARS PART
