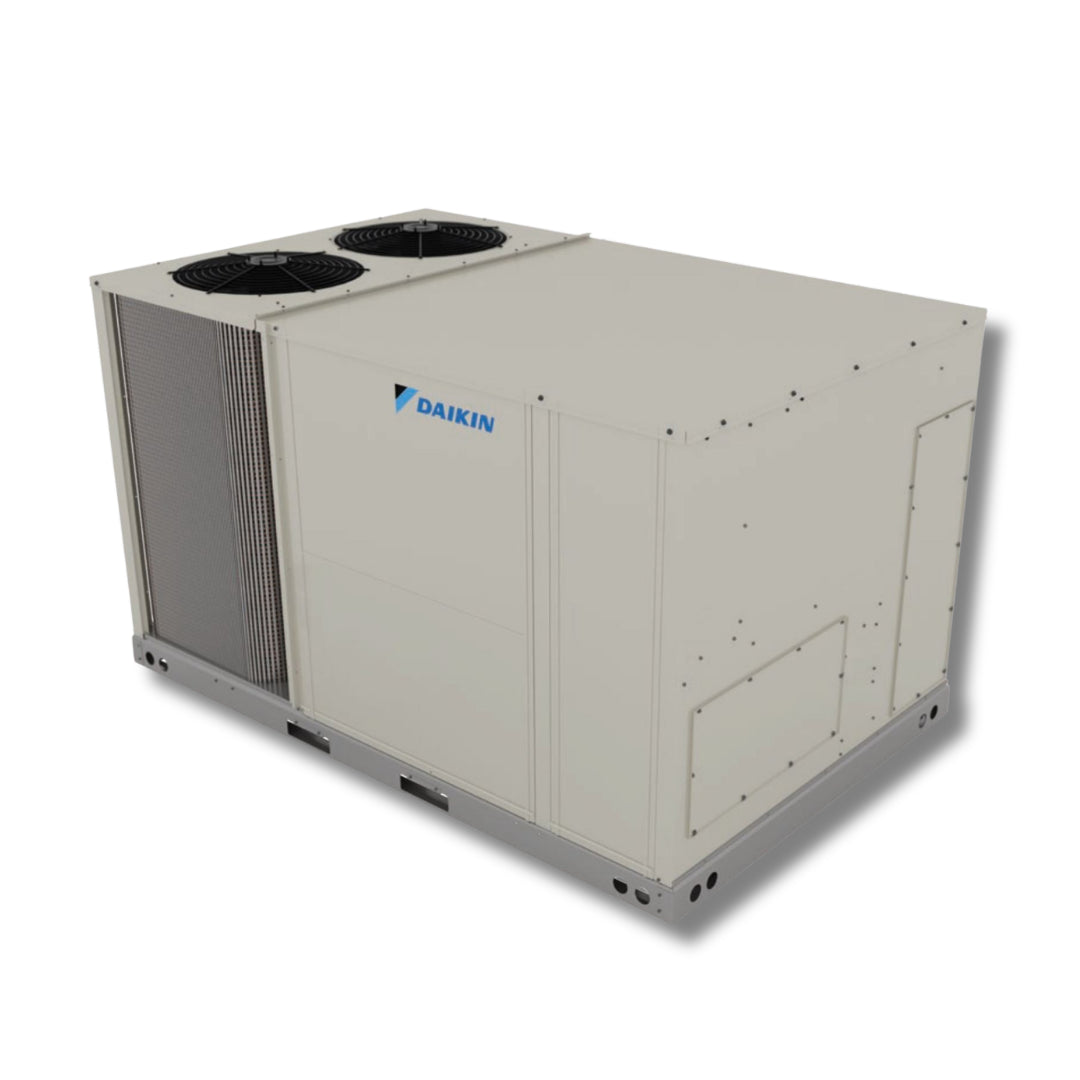

Daikin 8.5 Ton Light Commerical Packaged Heat Pump 208/230V 3PH R32 DSH1023D000001S

The DSH1023D000001S 8.5 Ton Light Commercial Packaged Heat Pump by Daikin is a commercially safe solution for high-capacity and energy-efficient heating and cooling for light commercial spaces. It has an IEER of 15 and an EER of 11.4, making it a good year-round comfort solution. It is a great fit for light commercial applications and for working retail and industrial spaces.

Product Overview

The Daikin DSH1023D000001S integrates both heating and cooling into one outdoor unit. This model has an impressive 8.5 ton (98,000 BTU cooling) capacity and a smart IEER/EER rating for improved efficiency. This unit has a 3-phase, 60 Hz, 208/230 volt power supply, uses R-32 refrigerant, and is ideal for medium to large commercial units.

Quick Facts

• Model / SKU: DSH1023D000001S

• Product Type: Light Commercial Packaged Heat Pump

• Cooling Capacity: 8.5 tons

• Cooling BTU: 98,000 BTU

• IEER: 15

• EER: 11.4

• Refrigerant Type: R-32

• Voltage: 208/230 Volt, 3-Phase, 60 Hz

• Compressor Type: Scroll

• Configuration: Packaged Outdoor Unit

• Application: Light Commercial Heating & Cooling

• Dimensions (W × H × D): 60-3/8″ × 54-5/8″ × 93-3/4″

Capacity & Coverage

The Daikin DSH1023D000001S model is ideal for medium and large commercial units with its 8.5 ton (98,000 BTU) cooling capacity. This model is excellent for heating and cooling offices, light industrial units, and retail units. This model provides reliable comfort all year by balancing airflow and consistent temperature control.

Efficiency

The DSH1023D000001S provides energy-efficient operation with 15 IEER and 11.4 EER ratings. R-32 refrigerant ensures environmentally responsible operation while maintaining high cooling and heating efficiency. The Daikin DSH1023D000001S balances operational performance with energy savings for commercial applications.

Construction & Design

The Daikin DSH1023D000001S has an all-steel, commercial-grade, heavy-gauge outdoor cabinet. The steel packaged design aids in protection from the elements while allowing flexible placement. This rugged design aids in the protective coating of the internal systems.

Application & Placement

This commercial heat pump was designed to meet the high packaged system demands for the commercial market. This model integrates multiple systems to allow performance to be retained in a compact design. The flexible outdoor cabinet design allows for placement in service areas and on rooftops. The DSH1023D000001S is excellent for retail, office, and light commercial heating and cooling applications.

Performance & Comfort

This 8.5 Ton DSH1023D000001S Packaged Heat Pump (with a capacity of 98,000 BTU) achieves optimal comfort with impressive IEER/EER ratings by using R-32 refrigerant with scroll compressors. This unit will create the ideal comfort level in a commercial setting, as it is designed to ensure consistent, even Heating & cooling.

FAQs

Q1: What type of system is the DSH1023D000001S?
This unit is a light commercial, packaged system, providing a heat pump for both Heating & Cooling.

Q2: What is the cooling capacity of this unit?
This unit provides 8.5 Ton (98,000 BTU) cooling, suitable for medium-to-large commercial spaces.

Q3: What refrigerant does the DSH1023D000001S use?
This unit uses the more environmentally safe R-32 refrigerant.
