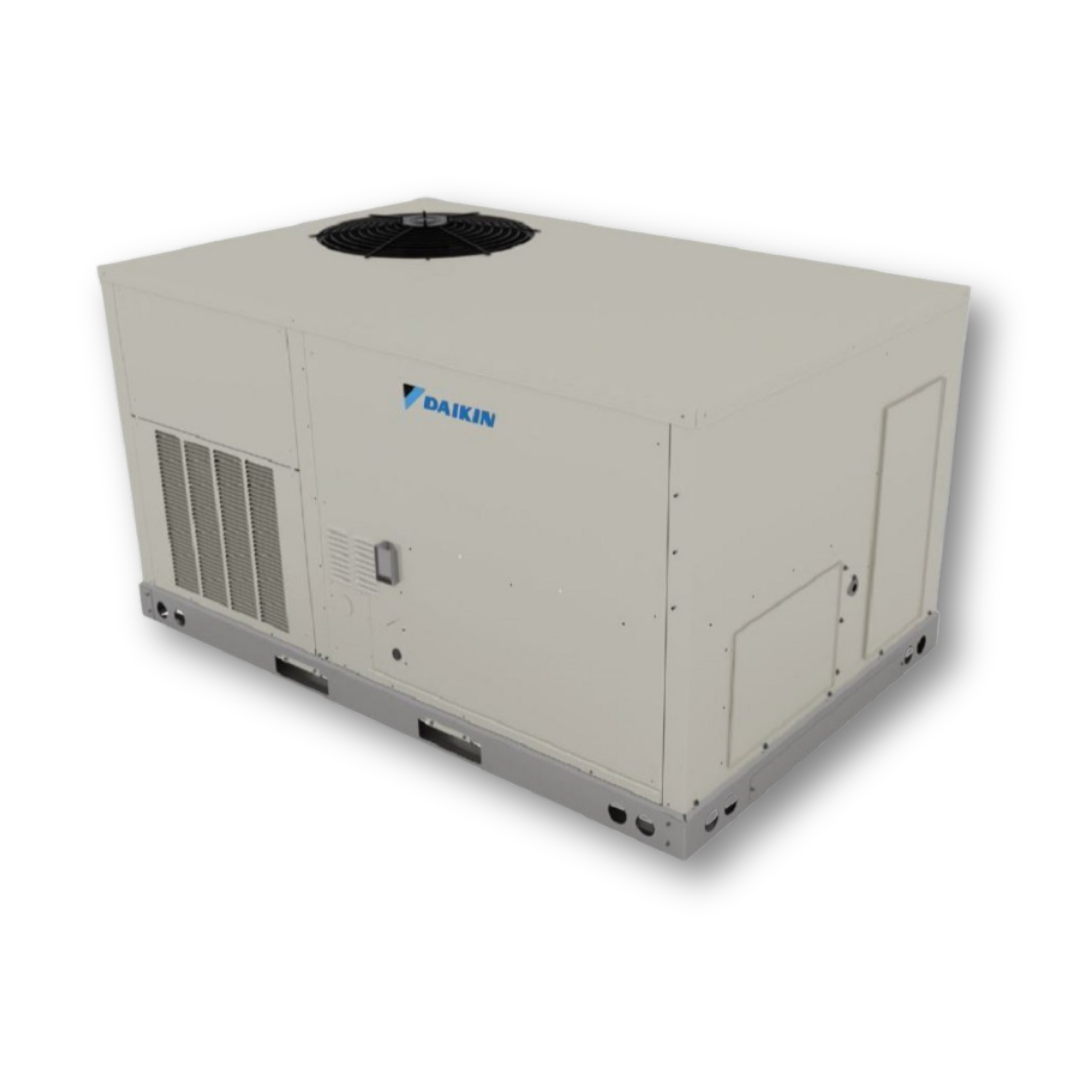

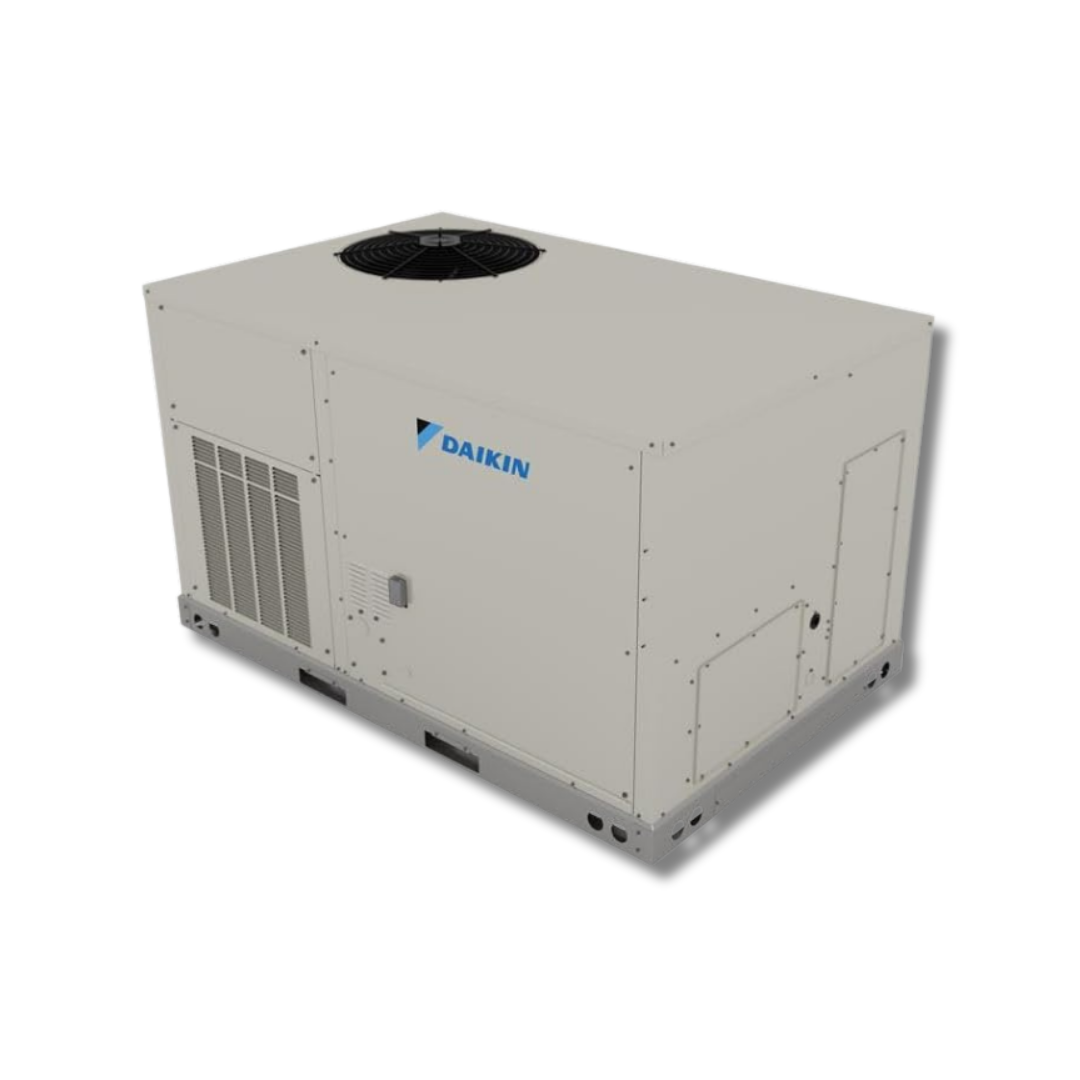

Daikin 7.5 Ton Light Commercial Packaged Gas Electric 208-230 V 3 Ph R32 DHG0903DH00001S

The Daikin DHG0903DH00001S is a packaged gas/electric rooftop unit with a capacity of 7.5 tons and is designed to offer exceptional heating and cooling capabilities for large commercial buildings. This unit has a 3-phase electrical service and R32 refrigerant at 208-230 V and has a cooling system and a gas heater with 225,000 BTU in one pre-assembled rooftop unit. The DHG0903DH00001S is ideal for commercial settings such as retail, office, restaurant, and warehouse, where reliable climate control and high air flow throughout the year are essential.

Product Overview

The new rooftop unit DHG0903DH00001S has built-in air conditioning and a gas heating system. This system saves space when compared to traditional separate HVAC components. This new system allows for easier installation and will offer reliable gas heating for those cold months and reliable cooling for the warmer months. This model is designed for light commercial use and offers adjustable and reliable air distribution throughout the entire ducting system in order to ensure the comfort of the building's occupants all year round.

Quick Facts

• Model / SKU: DHG0903DH00001S

• System Type: Packaged Gas/Electric Rooftop Unit

• Cooling Capacity: 7.5 Ton

• Heating Capacity: 225,000 BTU Gas Heat

• Heating Type: Gas Heat

• Voltage: 208-230 Volt

• Phase: 3-Phase Power

• Refrigerant: R32

• Efficiency: Approx. 17.5 IEER / 12.5 EER

• Configuration: Light Commercial Packaged Rooftop System

• Application: Commercial Heating & Cooling

• Dimensions (L × W × H): 93-3/4″ × 60-3/8″ × 54-3/5″

Capacity & Coverage

With a cooling capacity of 7.5 tons, the DHG0903DH00001S can serve the needs of large commercial spaces. The gas heating system also performs at 225,000 BTUs, which will ensure Comfortable Zones throughout the entire space in warmer months and with services, as well as in Offices, Retail, and Restaurants in gas heating, it also provides heat, which is a great performance in the cooler months.

Efficiency

The unit is rated with 17.5 IEER and 12.5 EER which ensures reliable cooling performance and is ideal for commercial applications with a great concern for energy savings. The unit uses R32 refrigerant, which provides efficient cooling and also provides great improvement for the environment.

Construction & Design

The DHG0903DH00001S features a heavy-duty rooftop cabinet suitable for challenging outdoor installations. It is made with heavy-gauge galvanized steel and strong internal airflow components that promote uniform air distribution in commercial duct systems. The appliance uses a scroll compressor and copper-tube aluminum-fin coils with a factory-installed filter drier that allows it to assist airflow and consistent performance.

Installation & Application

The DHG0903DH00001S is designed for rooftop installations with 208-230 V three-phase electrical services. It is a fully packaged HVAC solution for new commercial constructions or retrofitting system replacements. It has a built-in heating and cooling system that can run simultaneously with a horizontal or vertical downflow air distribution for flexible installation options.

Noise & Comfort

The DHG0903DH00001S is engineered to provide steady airflow and consistent indoor temperature regulation across commercial spaces. Its balanced airflow design and durable internal components support reliable rooftop HVAC performance while maintaining comfortable indoor conditions.

FAQs

Q1: What refrigerant does DHG0903DH00001S use?
A: This model operates with R32 refrigerant.

Q2: What heating capacity is included in this unit?
A: The system includes 225,000 BTU gas heating capacity.

Q3: What power supply is required?
A: The unit operates on 208-230 V, 3-phase power at 60 Hz.
