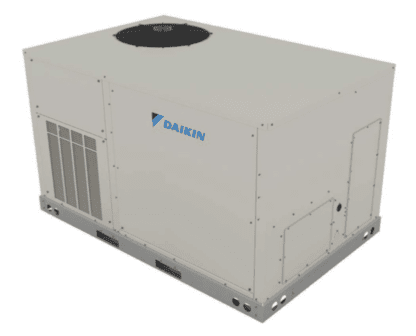

Daikin 6 Ton Light Commercial Packaged Gas Electric 460 V 3 Ph R32 DHG0724DH00001S

The Daikin DHG0724DH00001S is a high-capacity light commercial packaged gas/electric HVAC unit engineered to deliver reliable cooling and strong gas heating from a single rooftop system. SKU DHG0724DH00001S combines advanced R-32 refrigerant technology with a powerful gas heating section, providing efficient temperature control for demanding commercial environments.

Designed for 460-volt three-phase electrical supply, the DHG0724DH00001S is suitable for medium-to-large commercial facilities such as retail spaces, offices, restaurants, and industrial buildings. Its self-contained rooftop design allows cooling and heating components to operate together in a single cabinet, helping simplify HVAC system configurations for commercial installations.

Product Overview

The DHG0724DH00001S packaged system integrates cooling and gas heating functions within one cabinet, supporting centralized temperature control across commercial buildings. The unit’s rooftop-ready design allows HVAC components to operate as a unified system while supporting stable airflow and dependable indoor comfort.

Because of this configuration, SKU DHG0724DH00001S can be used in both new-built projects and replacement rooftop systems where a packaged HVAC option is required/preferred.

Key Features & Performance of DHG0724DH00001S

• Model / SKU: DHG0724DH00001S
• System Type: Light Commercial Packaged Gas/Electric
• Cooling Capacity: 6 Ton
• Cooling Output: Approx. 69,000 BTU
• Heating Capacity: Approx. 150,000 BTU Gas Heat
• Cooling Stages: Two-Stage Cooling
• Efficiency Rating: Up to 18.6 IEER / 12.5 EER
• Refrigerant: R-32
• Voltage: 460 V
• Phase: 3 Phase
• Maximum Airflow: Approx. 2,100 CFM
• Dimensions: 48-5/16 in W × 53-3/4 in H × 74 in D

Capacity & Coverage

The DHG0724DH00001S can cool 6 tons of air, making it perfect for medium- to large-sized commercial buildings that need reliable climate control all year round. SKU DHG0724DH00001S has good airflow and built-in gas heating, so it can keep large spaces with lots of ductwork at a comfortable temperature.

Efficiency

The DHG0724DH00001S uses R-32 refrigerant, which is a new type of refrigerant that helps the unit cool more efficiently and is better for the environment. The unit can reach up to 18.6 IEER and 12.5 EER, which means it can handle a wide range of cooling loads in commercial HVAC settings without losing performance.

Construction & Design

SKU DHG0724DH00001S is made with high-quality parts that are meant to last and work well in HVAC systems:

• Two-stage scroll compressor that works best when the load is only partially full
• Microchannel condenser coil technology that helps heat move better
• Evaporator coils made of copper tubes and aluminum fins that are made to cool down reliably
• Direct-drive supply fan system for steady airflow
• Heavy-gauge galvanized steel cabinet made for use on rooftops
• Safety switches for high and low pressure that keep the system running
• A 24-volt control system that works with system management

These design features help ensure that heating and cooling work well in tough commercial settings.

Installation & Application

The DHG0724DH00001S is made for rooftop packaged installations, so businesses can use one HVAC unit for both heating and cooling. This self-contained setup makes it easier to plan systems for commercial buildings that need centralized climate control.

Noise & Comfort

SKU DHG0724DH00001S can evenly distribute conditioned air throughout occupied spaces thanks to balanced airflow management and optimized fan systems. This helps keep indoor comfort levels steady during both cooling and heating cycles.

FAQs

Q1. What type of HVAC system is DHG0724DH00001S?
DHG0724DH00001S is a light commercial packaged gas/electric rooftop HVAC system designed to provide both cooling and gas heating.

Q2. Which refrigerant does the system use?
The DHG0724DH00001S operates using R-32 refrigerant, designed to support efficient cooling performance.

Q3. What electrical configuration is required for this unit?
SKU DHG0724DH00001S requires 460-volt three-phase electrical power.
