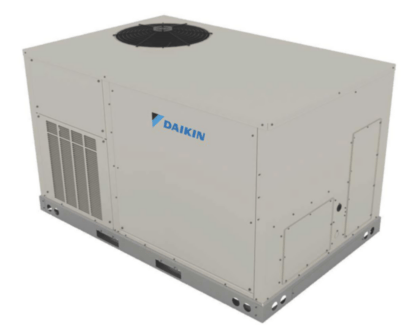

Daikin 6 Ton Light Commercial Packaged Gas Electric 208-230 V 3 Ph R32 DHG0723WM00001F

The Daikin DHG0723WM00001F is a high-static light commercial packaged gas/electric HVAC unit. SKU DHG0723WM00001F is reliable for gas heating and cooling. It provides one unified system for gas heating and electric cooling. It uses R-32 refrigerant for high efficiency and cost effective gas heating. It is classed as commercial use because of the designed use of high demand.

The packaged system is designed for use in rooftop placement in areas of use such as; constructed offices, shops as retail, warehouses for distribution, restaurants, and for educational instructed areas. The system has a fully self enclosed design which provides and retains the operation of constant flow and class temperature control.

Product Overview

Integration of components into a self-contained unit helps to streamline commercial HVAC system installations with the DHG0723WM00001F. These units simplify rooftop installation, and aid evenly spread airflow throughout expansive commercial areas.

SKU DHG0723WM00001F is designed for new builds and retrofitting older builds. It handles higher static pressure airflow needs, and is compatible with lengthy duct-work and intricate airflow distribution networks.

Key Features & Performance of DHG0723WM00001F

• Model / SKU: DHG0723WM00001F
• System Type: Light Commercial Packaged Gas/Electric (High Static)
• Cooling Capacity: 6 Ton
• Cooling Output: Approx. 69,000 BTU
• Heating Capacity: Approx. 125,000 BTU Gas Heat
• Cooling Stages: Two-Stage Cooling
• Efficiency: Up to 18.6 IEER / 12.5 EER
• Refrigerant: R-32
• Voltage: 208-230 V
• Phase: 3 Phase
• Maximum Airflow: Approx. 2,100 CFM
• Thermal Efficiency: Approx. 81%
• Dimensions: 48-5/16 in W × 53-3/4 in H × 74 in D

Capacity & Coverage

Stable temperature control is necessary for medium and large commercial areas. With 6-ton cooling capability the DHG0723WM00001F is able to maintain this level of control. It’s hawk-like airflow, and high static enables effective airflow distribution throughout extensive duct networks.

Efficiency

Meets modern HVAC efficiency criteria, and offers reliable cooling solutions. R-32 refrigerant is used in DHG0723WM00001F. Systems 18.6 IEER and 12.5 EER rating address commercial needs and help to keep operational efficiency through changing loads.

Construction & Design

The SKU DHG0723WM00001F has been built with long-lasting commercial-grade materials intended for continuous use with HVAC systems. Examples of the components used:

• Two-stage scroll compressors that allow for better load management
• Direct drive ECM fan supply motors for consistent airflow and fewer mechanical parts
• Microchannel coils that provide better heat transfer
• Copper tubing with aluminum fins on evaporators for dependable functionality
• Heavy-gauge galvanized steel cabinets for the durability of rooftop units
• High- and low-pressure safety switches for the protection of the system’s functions
• Adjustable electromechanical controls for the regular maintenance of the unit

All of these components work together to provide reliable airflow and heating and cooling capabilities for HVAC systems used in commercial settings.

Installation & Application

The DHG0723WM00001F model is intended to be placed on the roof of the building where it gives gas heating and cooling all from a single system. This configuration aids in system design and further enhances the HVAC efficiency of commercial buildings that utilize central air distribution systems.

Noise & Comfort

SKU DHG0723WM00001F has been designed to provide and balance airflow and use highly efficient fan systems to evenly distribute the conditioned air to all parts of the building.

FAQs

Q1. What type of HVAC unit is DHG0723WM00001F?
DHG0723WM00001F is a light commercial packaged gas/electric rooftop HVAC system designed to provide both cooling and gas heating.

Q2. What refrigerant does the system use?
The DHG0723WM00001F uses R-32 refrigerant, designed for efficient cooling performance.

Q3. What electrical configuration does this unit require?
SKU DHG0723WM00001F operates on 208-230 V three-phase power.
