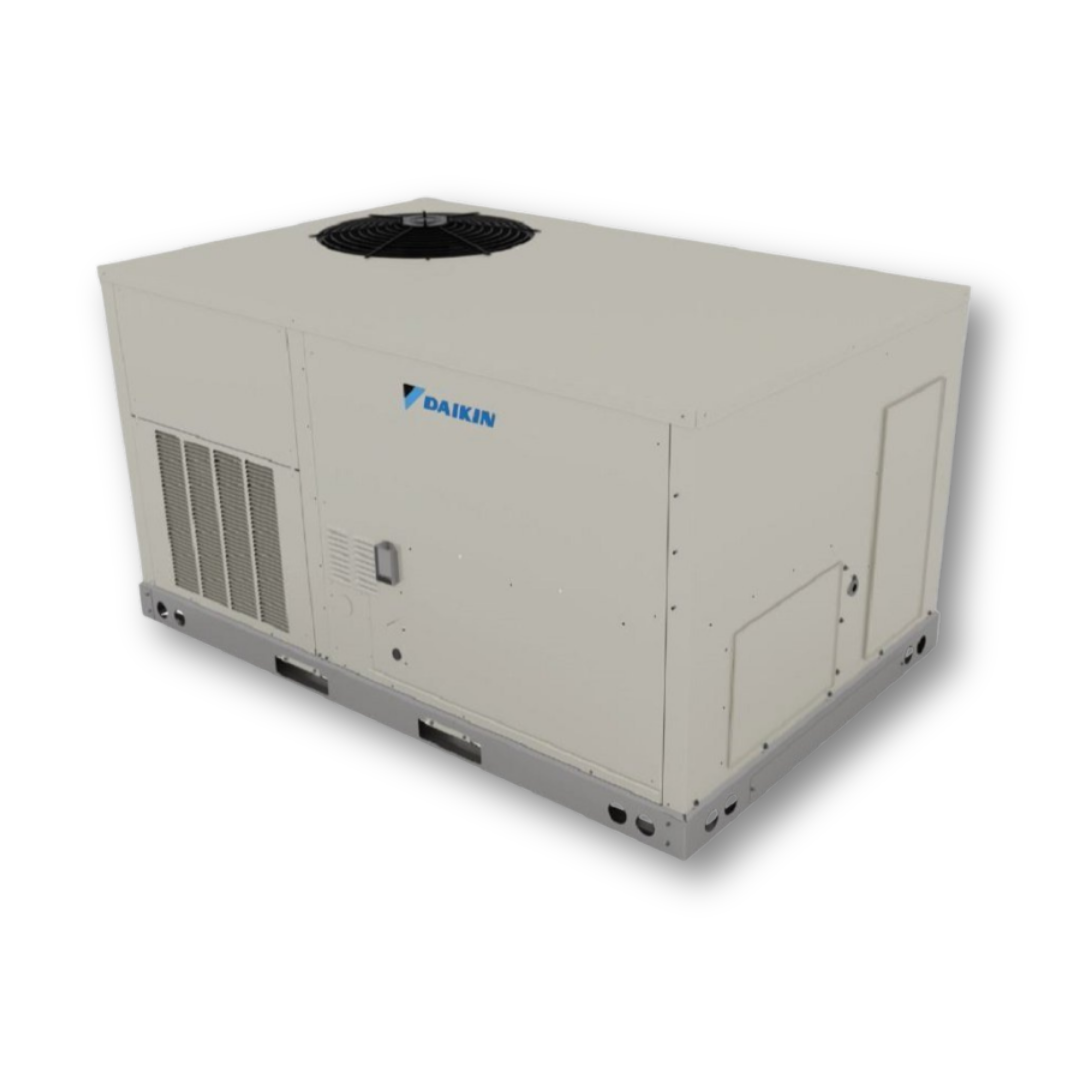

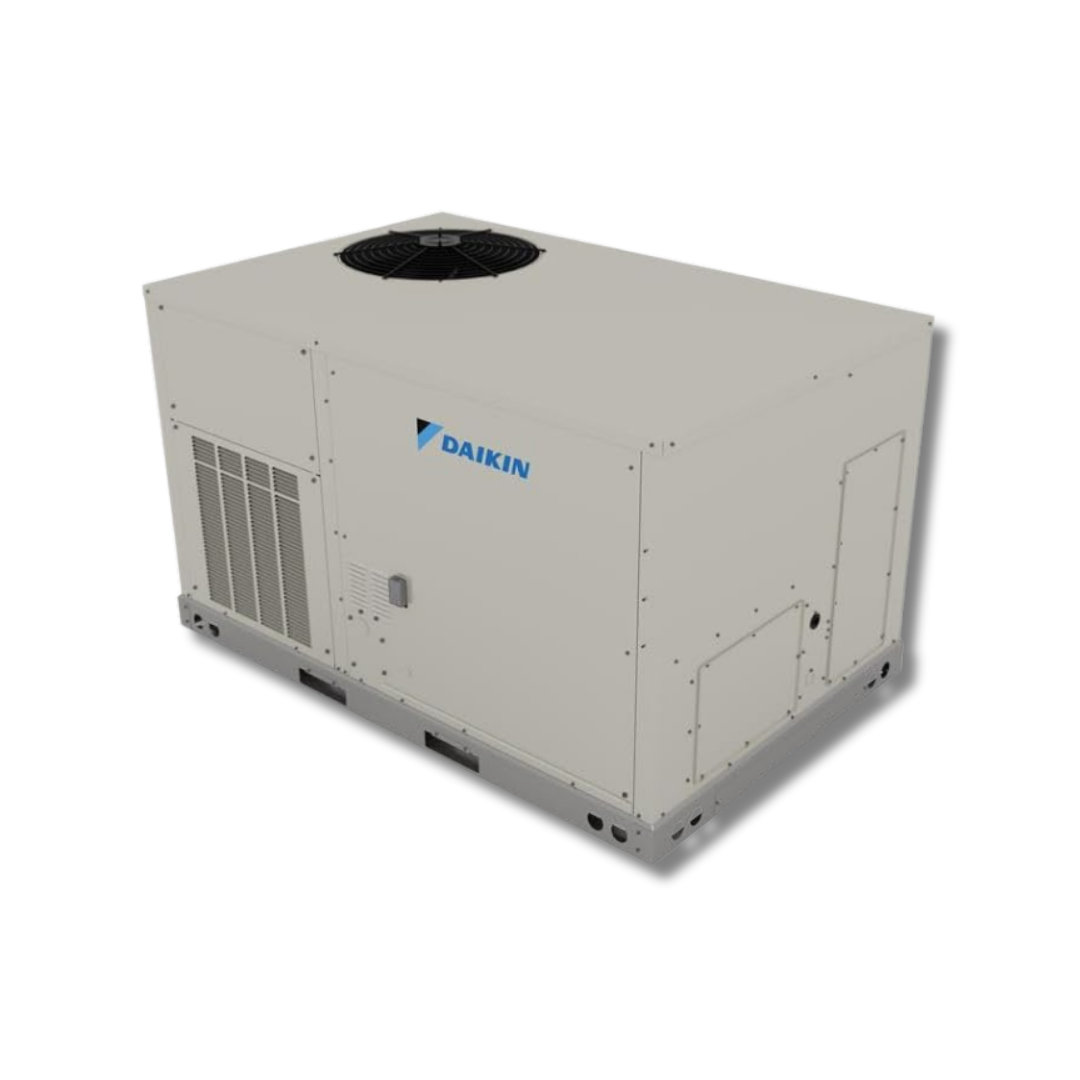

Daikin 5 Ton Light Commercial Packaged Gas Electric 208-230 V 1 Ph R32 DHG0601DH00001S

The Daikin DHG0601DH00001S is a Gas/Electric Packaged Rooftop Commercial Unit that offers one of the most reliable heating and cooling solutions for commercial areas with high demand for consistent performance and efficient control. It offers single-phase 208-230 V, R32 refrigerant, and a gas heating capacity of 140,000 BTU combined with a high cooling capacity. Commercial units of this performance are suitable for retail, restaurant, office, and light industrial use. The DHG0601DH00001S is packaged for ease of installation and is built to deliver reliable, balanced comfort for the entire year.

Product Overview

The Daikin DHG0601DH00001S Unit has been designed with cooling and gas heating built into one single rooftop cabinet, eliminating the need for any additional indoor or outdoor units. This design is especially suited for light commercial applications. Packaged units of this design and performance allow for a more streamlined installation and operational reliability over long periods in commercial applications where temperature control is of utmost importance.

Quick Facts

• Model / SKU: DHG0601DH00001S

• System Type: Packaged Gas/Electric Rooftop Unit

• Cooling Capacity: 5 Ton

• Heating Capacity: 140,000 BTU Gas Heat

• Heating Type: Gas Heat

• Voltage: 208-230 V

• Phase: Single Phase

• Refrigerant: R32

• SEER2 Rating: Approx. 16.2 SEER2

• Application: Light Commercial Heating & Cooling

• Dimensions (L × W × H): Approx. 74″ × 48 5/16″ × 43 1/2″

Capacity & Coverage

The Daikin DHG0601DH00001S offers 5 tons of cooling capacity, providing reliable temperature management year-round for small to mid-size commercial industries. The built-in 140,000 BTU gas heating section provides reliable heat for colder months, promoting balanced comfort across office spaces, retail shops, and restaurants.

Efficiency

The Daikin DHG0601DH00001S uses R32 refrigerant, offering better environmental friendliness and a 16.2 SEER2 efficiency rating, which values energy performance. This unit costs less to run while providing excellent cooling performance for commercial operations.

Construction & Design

The DHG0601DH00001S possesses reliable, factory-sealed heating and cooling equipment to yield optimal airflow and consistent distribution of conditioned air. This rooftop unit is built with durable, weather-resistant, commercial adapters for high outdoor environments.

Installation & Application

The DHG0601DH00001S is ideal for new commercial building designs and revamping old buildings. It features a gas/electric packaged unit for rooftop installations and uses up to 208-230 V single-phase electric energy for heating and cooling to offer versatility.

Noise & Comfort

As a single packaged rooftop HVAC solution, the Daikin DHG0601DH00001S provides balanced comfort to light commercial areas while maintaining reliable temperature control and consistent air flow.

FAQs

Q1: What refrigerant does DHG0601DH00001S use?
A: It uses R32 refrigerant.

Q2: What is the heating capacity of this unit?
A: It includes 140,000 BTU gas heating capacity.

Q3: What power supply is required?
A: The unit operates on 208-230 V single-phase power.
