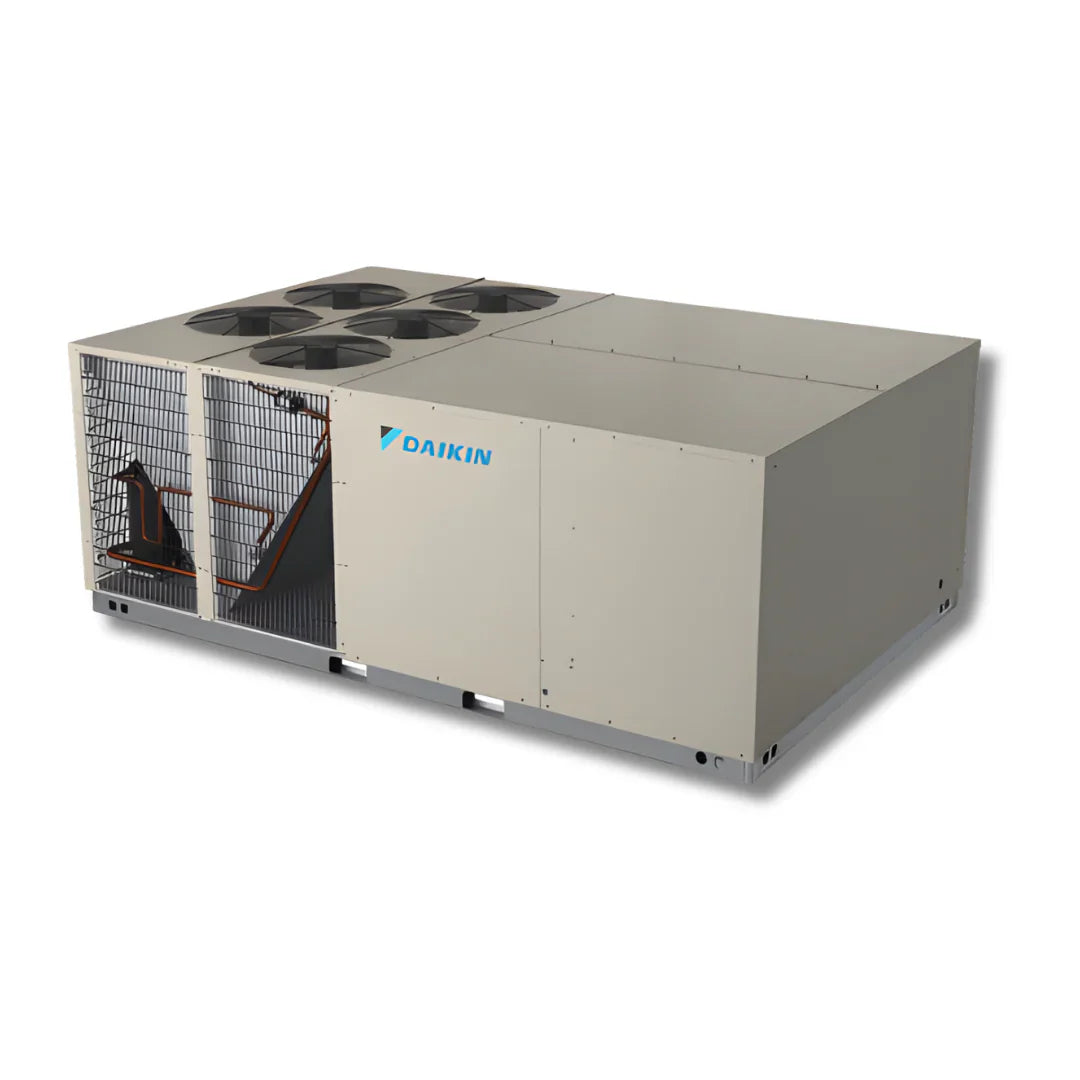

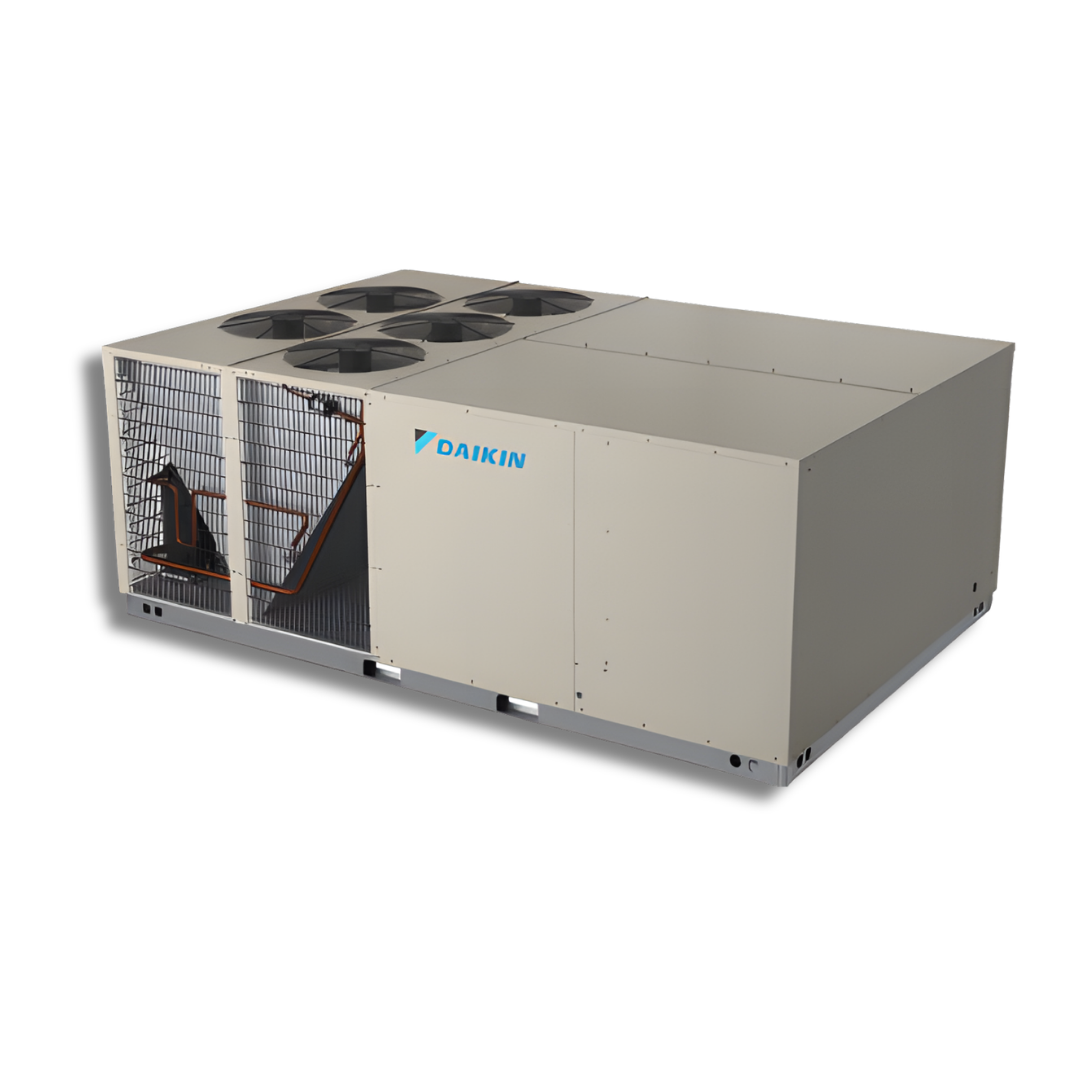

Daikin 25 Ton Light Commercial Packaged Air Conditioner 208-230V 3PH R32 DSC3003D000001S

The Daikin DSC3003D000001S is a high-capacity light commercial rooftop packaged air conditioner. It has been designed for large-scale cooling needs. The unit is 25-tons, and built for 208-230V three-phase electrical systems. It provides robust, consistent performance for cooling in demanding commercial environments. It is built with R32 refrigerant, which meets all the current efficiency standards and maintains dependable air flow and temperature control in large areas.

Product Overview

The Daikin DSC3003D000001S provides high-capacity cooling with R32 refrigerant and meets current refrigerant standards. This makes it highly adaptable for both new and replacement applications in light commercial settings. This packaged unit also boasts a simplified rooftop-layout design, is a valuable addition for commercial buildings that require centralized climate control, and allows the addition of large interior zones.

Quick Facts

• Model / SKU: DSC3003D000001S

• System Type: Packaged Rooftop Air Conditioner

• Cooling Capacity: 25 Ton

• Cooling Output: 290,000 BTU

• Voltage: 208–230 Volt

• Phase: 3-Phase Power

• Refrigerant: R32

• EER Rating: Approx. 10.0 EER

• Design: Light Commercial Packaged Rooftop Configuration

• Application: Large-Scale Commercial Cooling

• Dimensions (L × W × H): 133 7⁄8″ × 88 1⁄2″ × 51″


Capacity & Coverage

The Daikin DSC3003D000001S can output 290,000 BTUs while providing 25-tons of cooling. This makes it an excellent fit for large commercial setups, including big retail stores, shopping centers, warehouses, and manufacturing centers. The system offers reliable, wide-coverage cooling, helping create and maintain steady indoor conditions when operating at peak demand.

Efficiency

The Daikin DSC3003D000001S offers commercial-level cooling efficiency with an estimated 10.0 EER and 13.2 IEER, which means there will be consistent energy consumption for prolonged runs. The unit’s refrigerant, R32, offers better efficiency and makes it more compatible with modern commercial HVAC setups.

Construction & Design

Daikin has engineered the Daikin DSC3003D000001S with a durable commercial cabinet designed for rooftop exposure. Its internal airflow configuration supports balanced air distribution and stable performance across large conditioned spaces. The robust construction allows the unit to integrate smoothly into a wide range of light commercial rooftop installations.

Installation & Application

The DSC3003D000001S is intended for rooftop installations at 208–230V three-phase systems. Its packaged design allows for easy placement into commercial environments such as retail, warehouses, industrial, and institutional buildings. The unit is flexible for both new builds and replacing existing systems.

Noise & Comfort

The Daikin DSC3003D000001S employs a commercial-grade blower system that has been specially developed to provide balanced airflow and uniform cooling cycles. Such balanced operation optimally supports and ensures peak performance from the rooftop unit.

FAQs

Q1: What type of refrigerant is used in the DSC3003D000001S?
A: The DSC3003D000001S operates with modern R32 refrigerant, supporting current efficiency and compliance standards.

Q2: What electrical configuration is required?
A: This unit requires 208–230V three-phase power, making it suitable for many commercial electrical setups.

Q3: Does this unit provide heating and cooling?
A: No, the DSC3003D000001S is a cooling-only unit designed for commercial rooftop applications.
