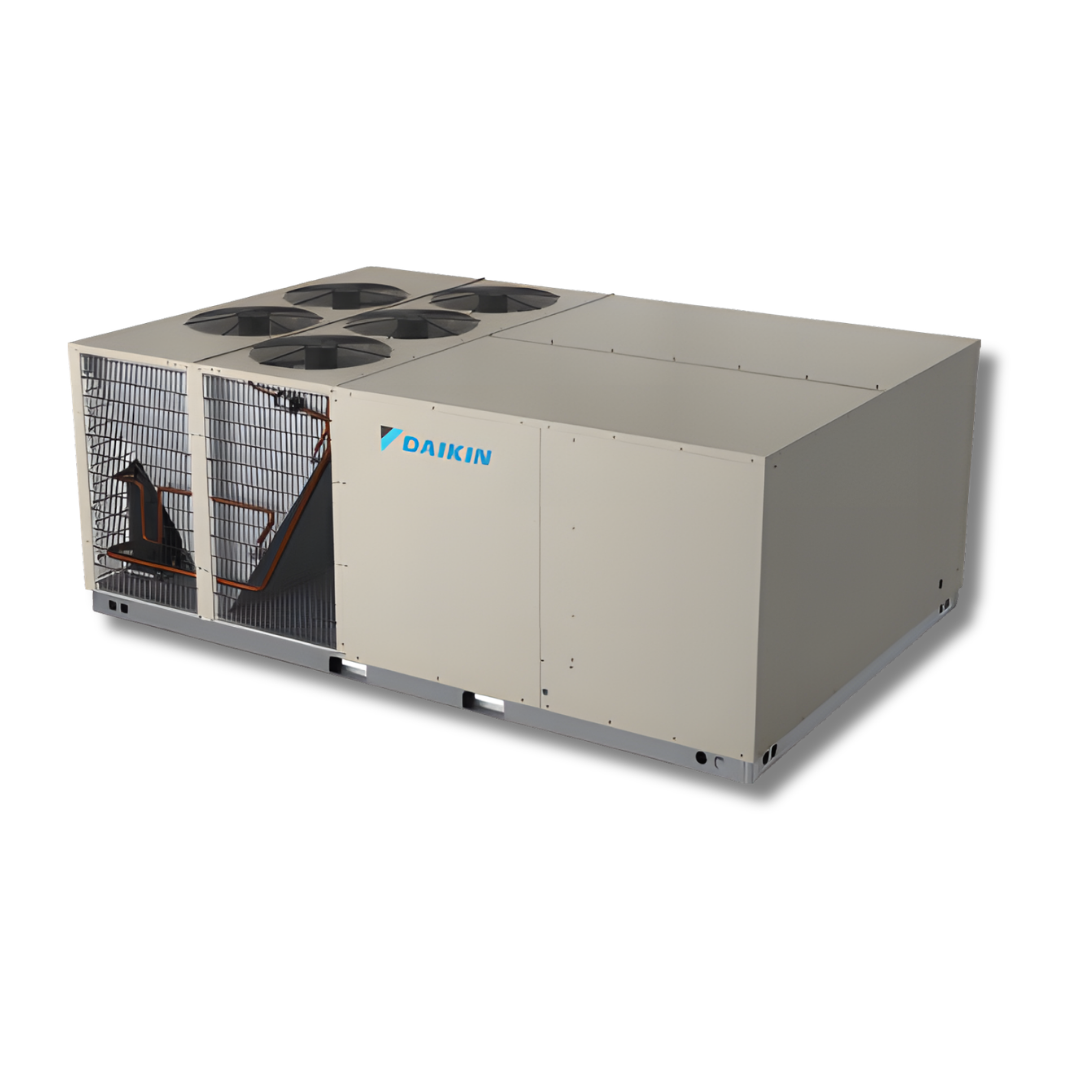

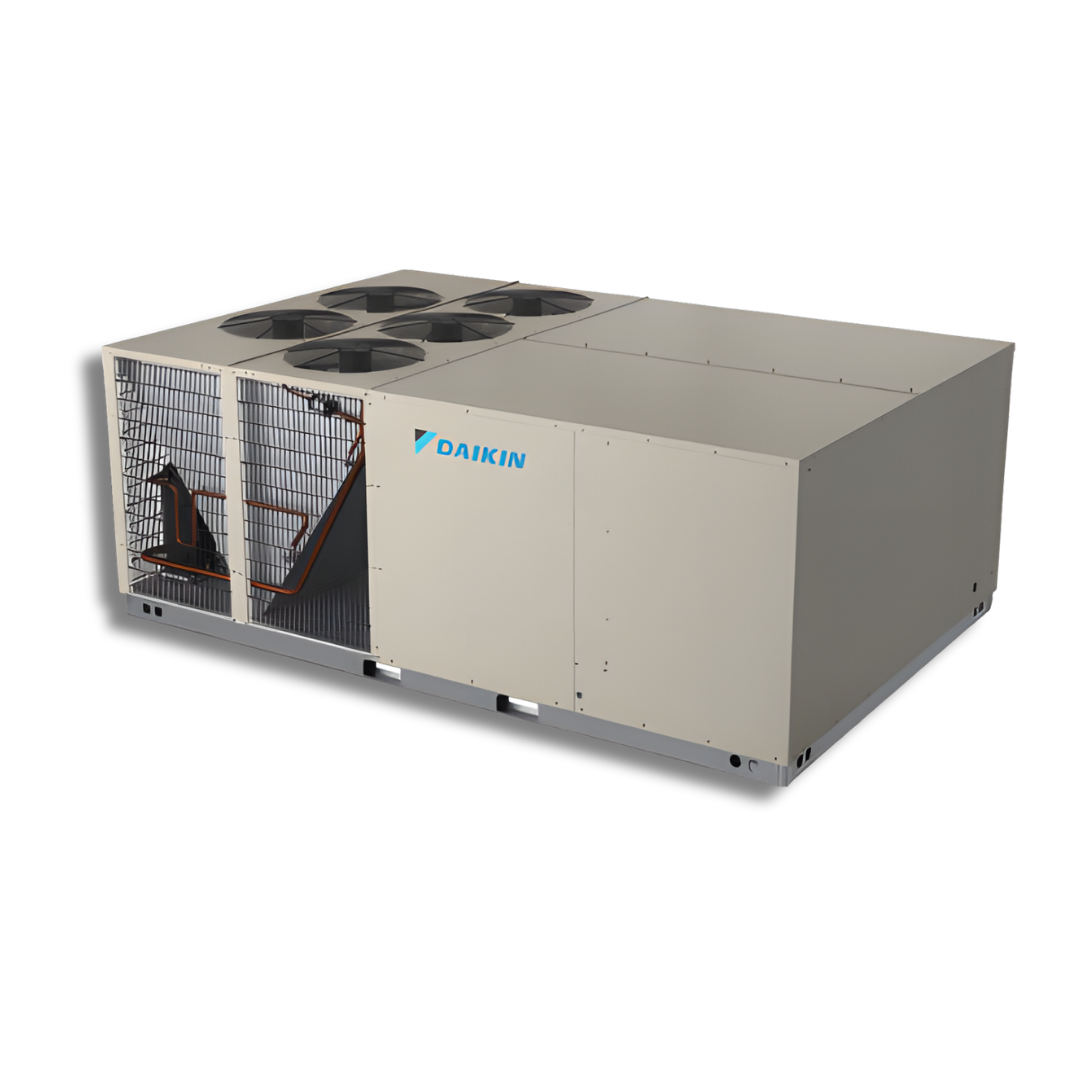

Daikin 20 Ton Light Commercial Packaged Gas Electric 208-230V/3PH 260K R32 DSG2403DL00001S

The Daikin DSG2403DL00001S model is a 20-ton high-capacity light commercial packaged gas/electric rooftop unit system designed with powerful heating and cooling capabilities. This unit is for 208/230V three-phase operation and uses current R32 refrigerant to suit demanding commercial industry needs. It is ideal for large commercial complexes, such as large offices, retail, warehouses, and light industry, where reliable temperature control is crucial. Packaged rooftop systems provide strong airflow and durable performance for comfort year-round.

Product Overview

Daikin DSG2403DL00001S is a gas heating commercial packaged rooftop unit and is a two-in-one system offering cooling and heating. Its packaged design simplifies the planning for installation on the rooftop and offers commercial buildings better zoning solutions. It meets the recent environmental requirements with the R32 refrigerant, while the durable materials of the cabinet and commercial-grade components make it stand out for new construction and replacement rooftop projects.

Quick Facts

• Model / SKU: DSG2403DL00001S
• System Type: Packaged Gas/Electric Rooftop Unit
• Cooling Capacity: 20 Ton
• Heating Type: Integrated Gas Furnace
• Heating Output: 260,000 BTU
• Voltage: 208/230 Volt
• Phase: 3-Phase Power
• Refrigerant: R32
• EER Rating: Approx. 10.8 EER
• Design: Commercial Packaged Rooftop Configuration
• Application: Light Commercial Heating & Cooling System
• Dimensions (L × W × H): 133⅞″ × 88½″ × 51″

Capacity & Coverage

Daikin DSG2403DL00001S helps businesses tackle high-demand commercial applications. With 20 tons of cooling and gas heating of 260,000 BTU, it helps large-scale industrial environments, including shopping centers, large-scale restaurants, multi-room office buildings, warehouses, and light commercial businesses. Seasonal comfort support is also available, and with dependable comfort year-round, operational support through seasonal shifts is possible.

Efficiency

Daikin packaged gas/electric rooftop systems are commercially optimized for energy efficiency and powerful output. With energy consumption being managed over time, DSG2403DL00001S provides approx. 10.8 EER and an estimated 14 IEER. Supporting heat transfer performance and reducing impact with older refrigerant systems, R32 refrigerant is utilized.

Construction & Design

The heavy-duty rooftop cabinet of the Daikin DSG2403DL00001S helps withstand outdoor commercial conditions all year round. With robust internal parts and a purposely built airflow system, the unit helps deliver consistency in heating and cooling, even when peak seasonal demands set in. Elevated commercial-grade construction helps extend long-term rooftop durability.

Installation & Application

The Daikin DSG2403DL00001S is purpose-built for rooftop configuration in large light commercial settings. It runs on a 208/230V three-phase power supply, which makes it compatible with a large number of commercial electrical infrastructures. This packaged gas/electric unit is well suited for new rooftop HVAC configurations as well as for substituting older high-capacity rooftop units in retail, office, and warehouse spaces, as well as other commercial facilities where dependable heating and cooling units are a must.

Noise & Comfort

The Daikin DSG2403DL00001S is a high-end unit and is designed to keep occupants comfortable. Its commercial-grade blower system, which provides stable workflow and a balanced hot and cold at a steady interval, helps to keep a comfortable atmosphere for employees, customers, and occupants of the building during daily commercial activities.

FAQs

Q1: What type of refrigerant is used in the Daikin DSG2403DL00001S?

A: The Daikin DSG2403DL00001S uses R32 refrigerant, which improves cooling efficiency and reduces environmental impact.

Q2: What are the electrical requirements for this unit?

A: It uses 208/230V on a three-phase electrical power supply.

Q3: Is this unit designed for commercial rooftop use?

A: Yes, it is a packaged gas/electric rooftop system built for large light commercial heating and cooling applications.
