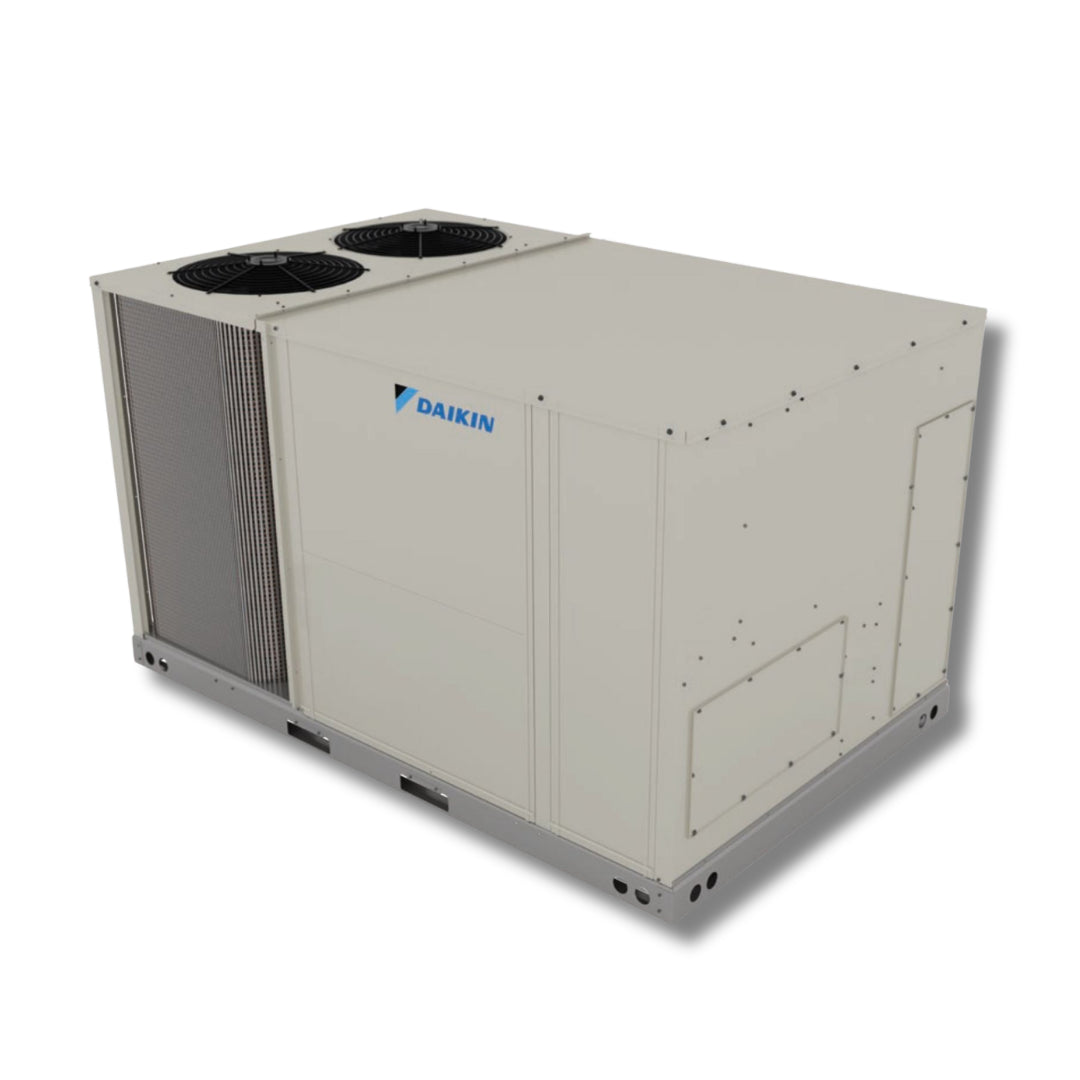

The DSG1504WM00001F is a 12.5 ton packed gas heat rooftop system designed for high-capacity commercial performance. Built for steady airflow and reliable temperature control, the DSG1504WM00001F has good heating and cooling output for large commercial buildings.
Product Overview
The DSG1504WM00001F has a 140,000 BTU cooling capacity and gas heating all within one rooftop unit. The DSG1504WM00001F has two cooling stages and a single compressor stage, allowing it to control performance according to the load demands.
The DSG1504WM00001F model operates on 460V three-phase power, meaning it is designed for commercial use where higher voltage power systems are needed. It is designed to give reliable airflow and has a maximum capacity of 4,200 CFM.
Key Features & Performance of DSG1504WM00001F
-
Model: Daikin DSG1504WM00001F
-
System Type: Packaged Gas Heat Rooftop Unit
-
Tonnage / BTU Capacity: 12.5 Ton / 140,000 BTU Cooling
-
SEER2 / AFUE Rating: Not Specified
-
Operation: Two Cooling Stages / Single Compressor Stage
-
Configuration: Packaged Rooftop
-
Refrigerant: R-32
-
Dimensions (H × W × D): 54-5/8″ × 60-3/8″ × 93-3/4″
-
Ignition / Motor Type: Single Compressor Stage
Capacity & Coverage
The DSG1504WM00001F, with a cooling capacity of 12.5 tons, is designed for commercial locations of 5,000 to 7,000 sq. ft. depending on the layout and insulation of the building. It is most suitable for large retail stores, office buildings, and light industrial buildings.
Efficiency
The DSG1504WM00001F incorporates two cooling stages, which greatly enhance the management of system airflow and the control of temperature across different levels of demand. At maximum load, the DSG1504WM00001F delivers 4,200 CFM, which facilitates even distribution of air flow across the zones to be conditioned.
Construction & Design
The DSG1504WM00001F is built of commercial-grade materials and weighs approximately 1,300 lbs. It is designed to be durable on the rooftop. The single-compressor, two-stage cooling system of the DSG1504WM00001F is designed to deliver reliable performance.
Installation & Application
The DSG1504WM00001F is packaged for rooftop installation and integrates its heating and cooling systems into a single compact unit. The 460V three-phase wiring system of the DSG1504WM00001F makes it suitable for commercial buildings that require a constant supply of high-voltage power.
Noise & Comfort
The DSG1504WM00001F is designed to deliver uniform airflow and has two cooling stages to ease the control of temperature. Its high-capacity design makes it possible to provide large commercial buildings with uniform and balanced control of the climate.
FAQs
Q1. Cooling Capacity of DSG1504WM00001F?
Cooling capacity of DSG1504WM00001F is 140,000 BTU, equivalent to 12.5 tons.
Q2. What is the voltage requirement of the DSG1504WM00001F?
DSG1504WM00001F works at 460V, three-phase power.
Q3. What type of refrigerant is used in DSG1504WM00001F?
The refrigerant used in DSG1504WM00001F is R-32.
