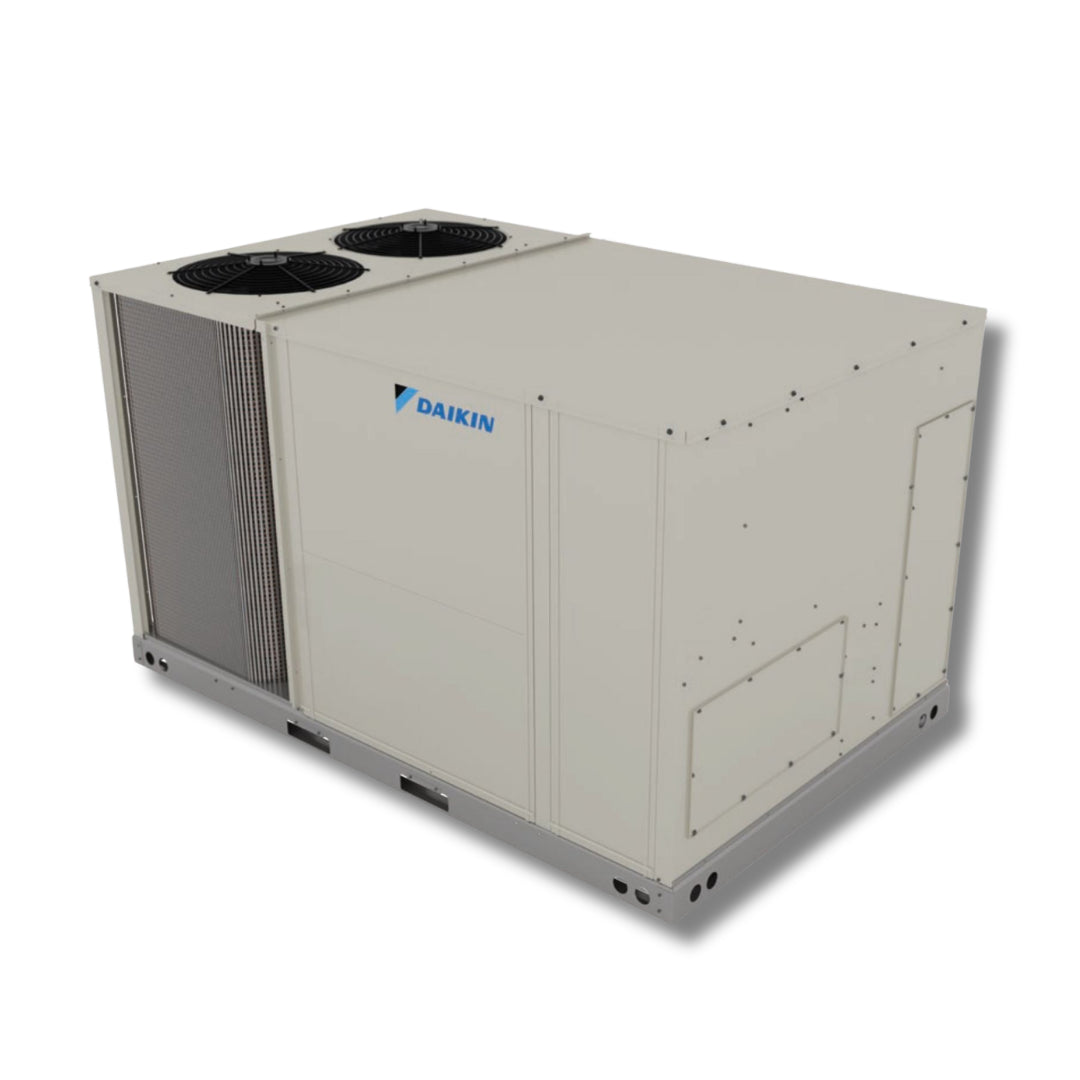

Daikin 12.5 Ton Light Commercial Packaged Gas Electric 460V 3PH 130K R32 DSG1504DL00001S

The Daikin DSG1504DL00001S unit is a 12.5 ton light commercial packaged gas/electric rooftop system. It is specifically designed for high-capacity heating and cooling. It delivers exceptional performance in demanding commercial environments. This unit is for 460V three-phase operation and is built for next-generation R32 refrigerants. It is perfect for office buildings, retail spaces, warehouses, and light industrial facilities that require dependable temperature control. The packaged configuration of this unit provides high-performing reliability and airflow. This model ensures comfort and is built for long-term use.

Product Overview

The Daikin DSG1504DL00001S offers gas heating and cooling in one packaged system. Made for commercial use, it offers indoor climate control and ease of installation and service planning. Outdoor units have elements to improve efficiency and reduce the environmental impact of R32 refrigerant. Its rugged exterior and commercial-grade elements make it ideal for new build and replacement rooftop construction.

Quick Facts

• Model / SKU: DSG1504DL00001S

• System Type: Packaged Gas/Electric Rooftop Unit

• Cooling Capacity: 12.5 Ton

• Heating Type: Gas Furnace Integrated
• Heating Output: 130,000 BTU

• Voltage: 460 Volt

• Phase: 3-Phase Power

• Refrigerant: R32

• EER Rating: Approx. 11 EER

• Design: Commercial Packaged Rooftop Configuration

• Application: Light Commercial Heating & Cooling System

• Dimensions (W × D × H): 93-3/4″ × 60-3/8″ × 54-5/8″


Capacity & Coverage

The Daikin DSG1504DL00001S has strong cooling and heating gas capabilities, making it ideal for larger commercial applications. With 130,000 BTU gas heating and a 12.5 ton cooling gas capacity, it is perfect for multi-room offices, restaurants, retail, and industrial spaces. Seasonal temperature changes will not affect operational performance. It easily provides consistent comfort across ever-demanding environments.

Efficiency

Surpassing minimum requirements of commercial energy regulations, the Daikin packaged gas/electric unit has an approximate EER of 11 and an IEER of 14.2. One of the leading advantages of the unit is the use of R32 refrigerant, which offers better environmental impact and efficiency than older units when considering commercial applications. Overall operational costs will improve thanks to the efficiency of the system.

Construction & Design

The Daikin DSG1504DL00001S comes with a heavy-duty rooftop cabinet designed for outdoor weather and the rigors of ongoing commercial usage. The system's internal parts and optimized airflow design are built for dependable performance and comfortable delivery in the most demanding of settings.

Installation & Application

Daikin DSG1504DL00001S is configured for rooftop installations, requiring 460V of three-phase power. This provides the flexibility needed to meet most commercial building specifications. This packaged system is built for new rooftop HVAC installations as well as for replacing existing gas/electric units in light commercial businesses.

Noise & Comfort

Sufficient commercial-grade blower performance, combined with smooth system cycling, enables dependable climate control The Daikin DSG1504DL00001S provides smooth cycling and climate control dependability. It also provides dependable climate control without excessive noise, allowing for the focus of employees, customers, and building occupants.

FAQs

Q1: What type of refrigerant is used in the Daikin DSG1504DL00001S?

A: The Daikin DSG1504DL00001S employs the new R32 refrigerant, which offers greater efficiency and a lower environmental footprint.

Q2: What are the electrical specifications of this unit?

A: The unit requires 460V of three-phase power.

Q3: Is this unit intended for commercial rooftop applications?

A: Yes, it's a packaged gas/electric rooftop system specifically designed for light commercial heating and cooling.
