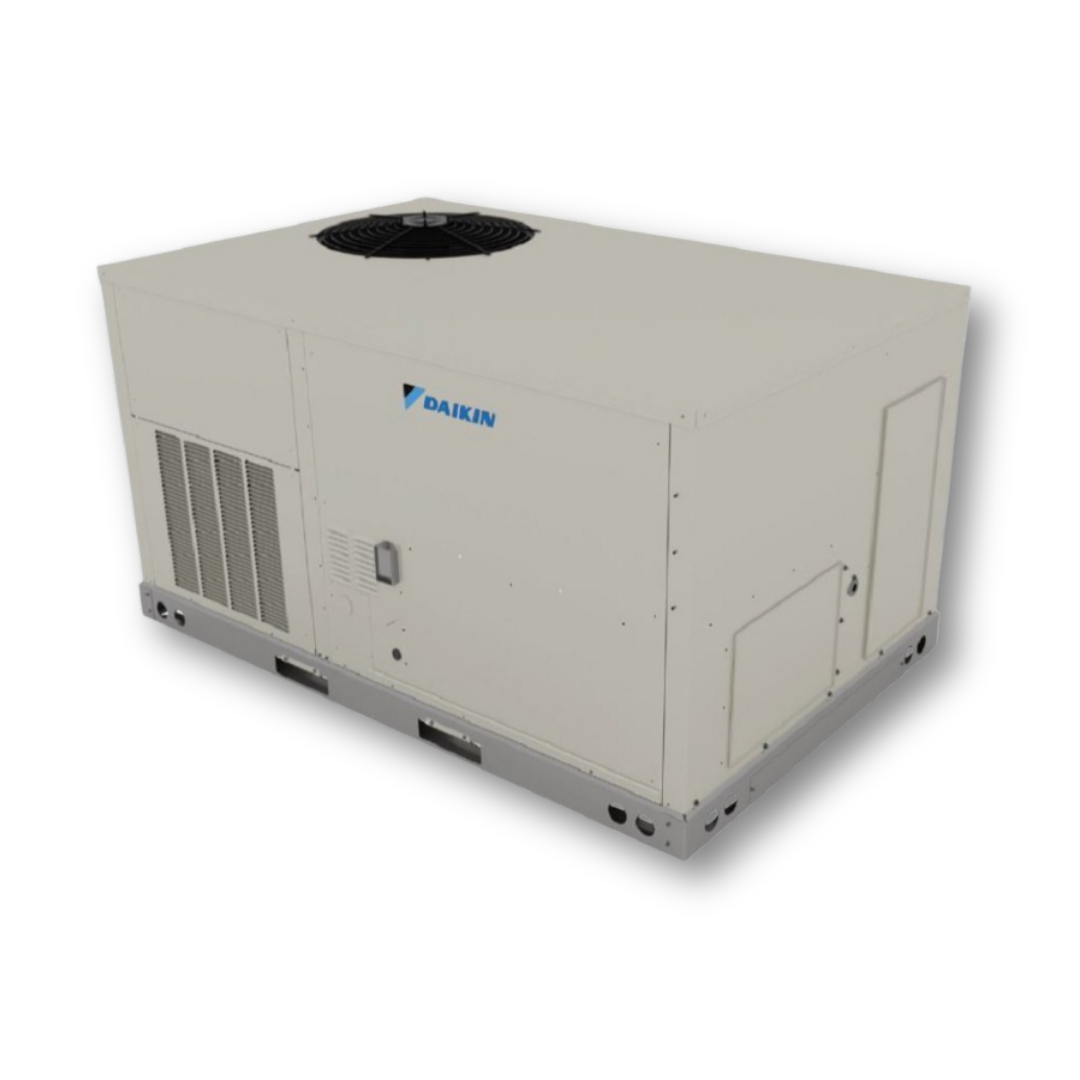

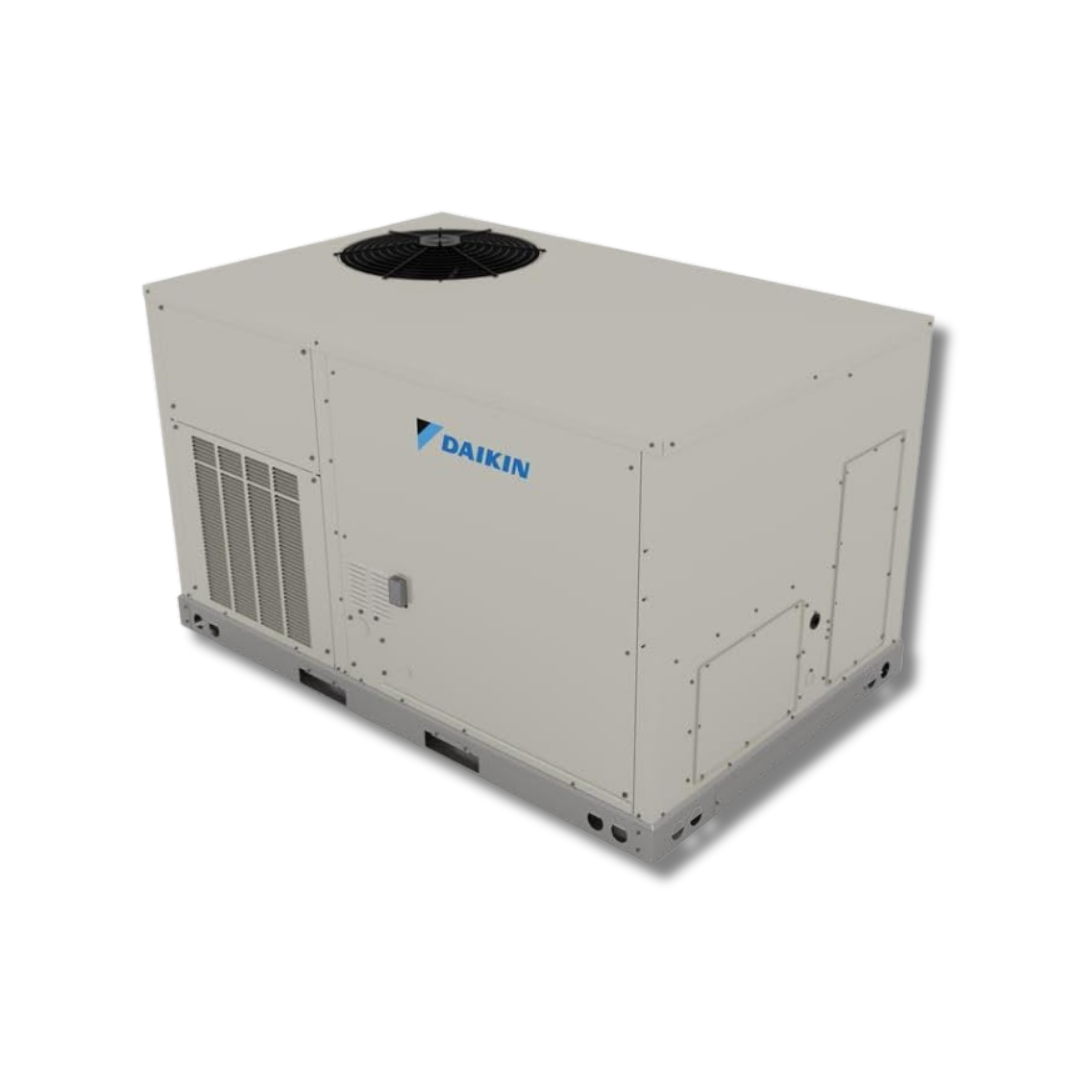

The Daikin DHG1504DL00001S is a light commercial packaged gas/electric rooftop unit with an approximate 12.5 ton capacity designed for moderate heating and cooling for large commercial spaces. The unit is designed for 460 volt three-phase electrical installations and utilizes R32 refrigerant. The unit is designed with a significant cooling capacity with a gas heating section configured at 130,000 BTU. The DHG1504DL00001S is ideal for commercial spaces such as warehouses, retail spaces, offices, and schools where airflow and heating and cooling year-round are necessities.
Product Overview
The DHG1504DL00001S unit is a rooftop unit that bundles the gas heating and cooling functions into one compact package, which minimizes the need for multiple HVAC components. The packaged design allows for easy installation and reliable cooling and gas heating during the summer and winter, respectively. The unit is designed for light commercial use and is able to provide all commercial ducted systems with adequate airflow to maintain comfort throughout large volumes of space.
Quick Facts
-
Model / SKU: DHG1504DL00001S
-
System Type: Packaged Gas/Electric Rooftop Unit
-
Cooling Capacity: 12.5 Ton
-
Heating Capacity: 130,000 BTU Gas Heat
-
Heating Type: Gas Heat
-
Voltage: 460 Volt
-
Phase: 3-Phase Power
-
Refrigerant: R32
-
Cooling Stages: Two-Stage Cooling
- Application: Commercial Heating & Cooling
- Dimensions (L × W × H): 93-3/4″ × 60-3/8″ × 58-4/5″
Capacity & Coverage
The DHG1504DL00001S can help you maintain powerful cooling output and stable temperature control of large commercial spaces by providing 12.5 tons of cooling. For winter seasons, you can maintain a comfortable indoor environment in offices, warehouses, retail buildings, and commercial facilities with the integrated 130,000 BTU gas heating section.
Efficiency
R32 refrigerant is used in the system with regulatory supports efficient heat transfer and improved environmental performance compared to refrigerant technologies of the last generation. While the system also supports the more efficient energy use in commercial HVAC to operate, the unit is aimed to provide and support improved cooling efficiency.
Construction & Design
The DHG1504DL00001S possesses a rugged, galvanized steel housing that is made for the harshest rooftop and outdoor environments. Commercial HVAC performance and airflow in the long term are preserved by the rugged stability of internal designs, consisting of scroll compressors, copper tube/aluminum fin coils, and steel-cased filter dryers.
Installation & Application
Designed for rooftop installation with 460 V three-phase electrical service, the DHG1504DL00001S provides a complete packaged heating and cooling solution within a single system. Its convertible airflow configuration supports both horizontal and downflow duct installations, making it suitable for new commercial construction projects as well as replacement rooftop HVAC systems.
Noise & Comfort
The DHG1504DL00001S is engineered to deliver steady airflow and balanced indoor temperature regulation across large commercial spaces. Its high-capacity airflow system and durable internal components help maintain comfortable indoor conditions while supporting reliable rooftop HVAC performance.
FAQs
Q1: What refrigerant does DHG1504DL00001S use?
A: The unit operates with R32 refrigerant.
Q2: What heating capacity does this unit provide?
A: The system includes 130,000 BTU gas heating capacity.
Q3: What electrical supply is required?
A: The unit operates on 460 V, 3-phase power at 60 Hz.
