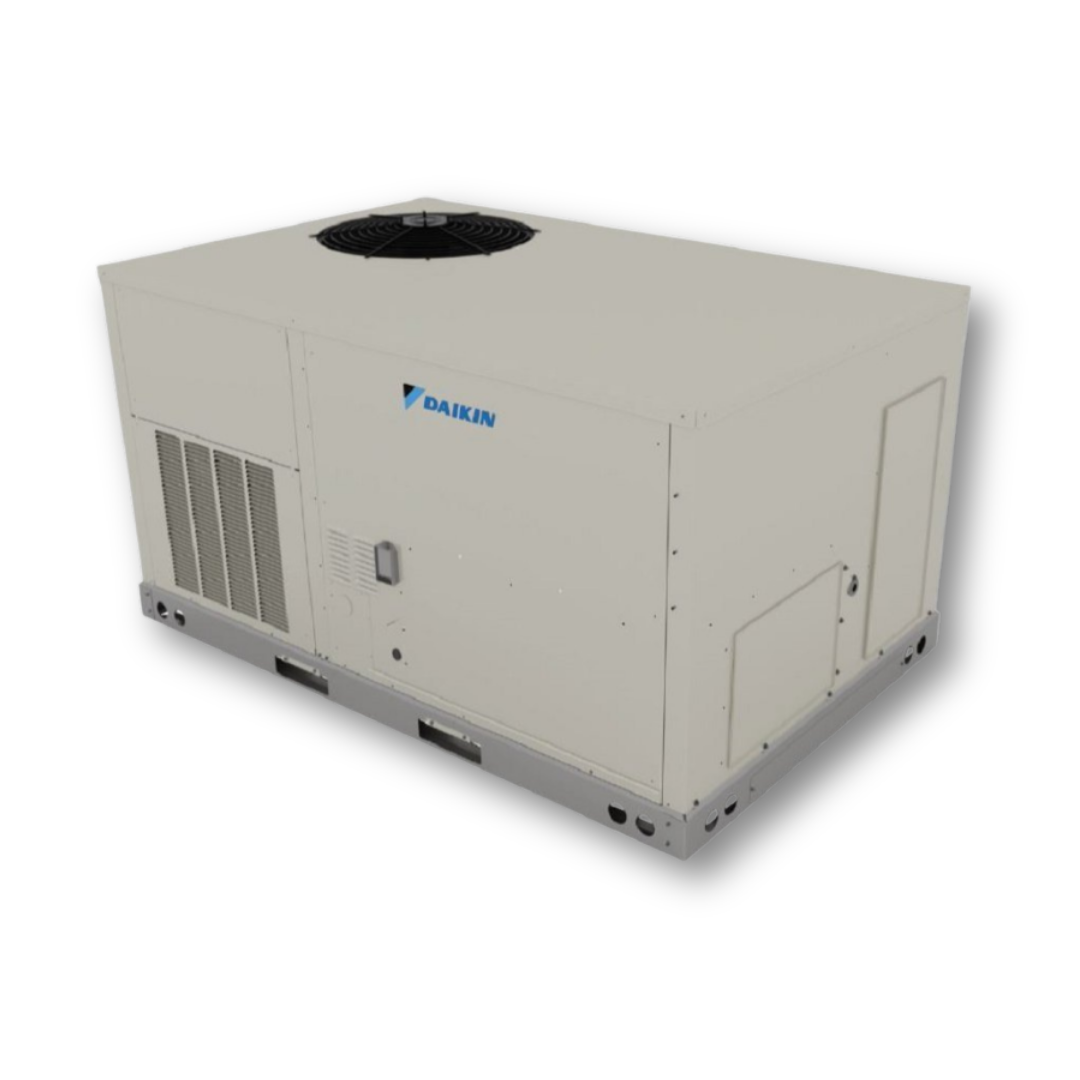

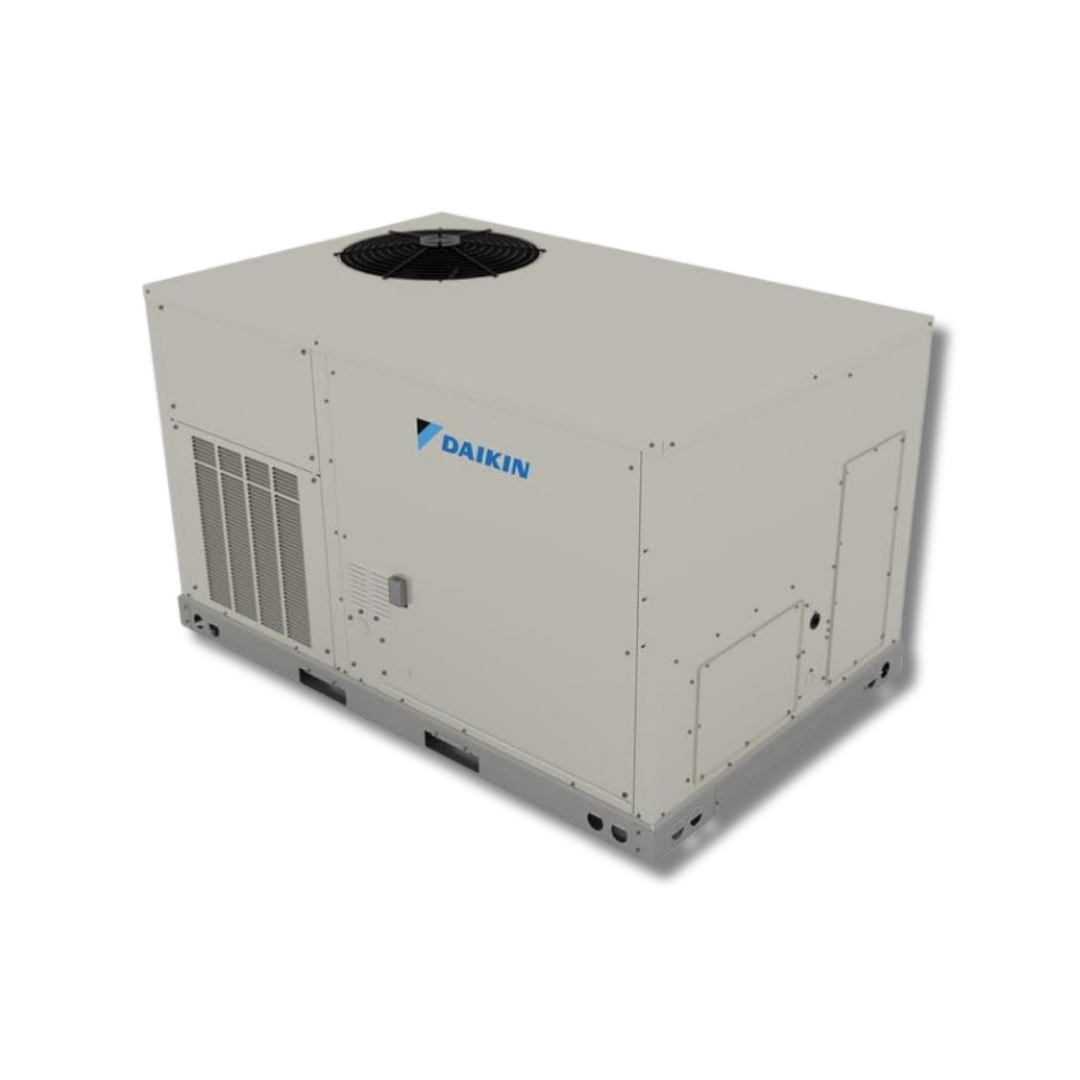

The Daikin DHG1503DL00001S is a 12.5 ton light commercial packaged gas/electric rooftop unit made for reliable heating and cooling for large commercial spaces. It will be designed for 208-230 V three-phase electrical systems and uses R32 refrigerant. The unit provides a combination of efficient cooling and a 130,000 BTU gas heating section. The DHG1503DL00001S is designed for commercial use, which means it is perfect for large warehouses, offices and retail buildings.
Product Overview
No need to get separate units for both air conditioning and gas heating, as the DHG1503DL00001S has both of these functions. You can change the heating and cooling functions as needed each season. The installation is easy and allows for cooling to happen even when heating is also used. It is made for light commercial uses and is built to work with duct systems to provide airflow and comfort to the building as a whole.
Quick Facts
-
Model / SKU: DHG1503DL00001S
-
System Type: Packaged Gas/Electric Rooftop Unit
-
Cooling Capacity: 12.5 Ton
-
Heating Capacity: 130,000 BTU Gas Heat
-
Heating Type: Gas Heat
-
Voltage: 208-230 Volt
-
Phase: 3-Phase Power
-
Refrigerant: R32
-
Efficiency: Approx. 16 IEER / 12 EER
-
Cooling Stages: Two-Stage Cooling
- Application: Commercial Heating & Cooling
-
Dimensions (L × W × H): 93-3/4″ × 60-3/8″ × 58-4/5″
Capacity & Coverage
With a cooling capacity of 12.5 tons, this unit is made for commercial buildings that need a strong and reliable system for keeping the temperature steady. The heating system is gas-powered and has a capacity of 130,000 BTUs, which is enough to provide adequate heating for all the spaces of a commercial building, be it a retail outlet, office, warehouse, or hotel.
Efficiency
The DHG1503DL00001S uses an environmentally friendly refrigerant, R32, which allows for heat to be transferred more efficiently. The system is made for commercial uses and has an approximate efficiency of 12 for cooling and 16 for energy consumption, which is a standard for energy-efficient units.
Construction & Design
The DHG1503DL00001S is a rooftop cabinet made of heavy-duty galvanized steel allowing it to handle rugged outdoor installations. Its other rugged outdoor construction components include a high-efficiency scroll compressor, copper tube, aluminum fin coils, a high-capacity filter drier, and components designed to maintain stable airflow and long-term reliability in commercial HVAC systems.
Installation & Application
The rooftop installation is on 208-230 V three-phase electrical service. All components of the DHG1503DL00001S fit in a single packaged system, giving it a complete heating and cooling system for commercial spaces. Its airflow configuration is convertible, meaning it supports both horizontal and downflow duct installations. This installation system is ideal for new construction commercial HVAC projects and also retrofit HVAC system projects.
Noise & Comfort
The DHG1503DL00001S is designed for large commercial spaces and delivers the regulation of comfort and temperature needed. Indoor comfort is maintained through the stable performance of the cabinet of rooftop HVAC. This is a result of its high-capacity airflow system and rugged construction of internal HVAC components.
FAQs
Q1: What refrigerant does DHG1503DL00001S use?
A: This unit operates with R32 refrigerant.
Q2: What heating capacity is included in this model?
A: The system includes 130,000 BTU gas heating capacity.
Q3: What electrical supply is required?
A: The unit operates on 208-230 V, 3-phase power at 60 Hz.
