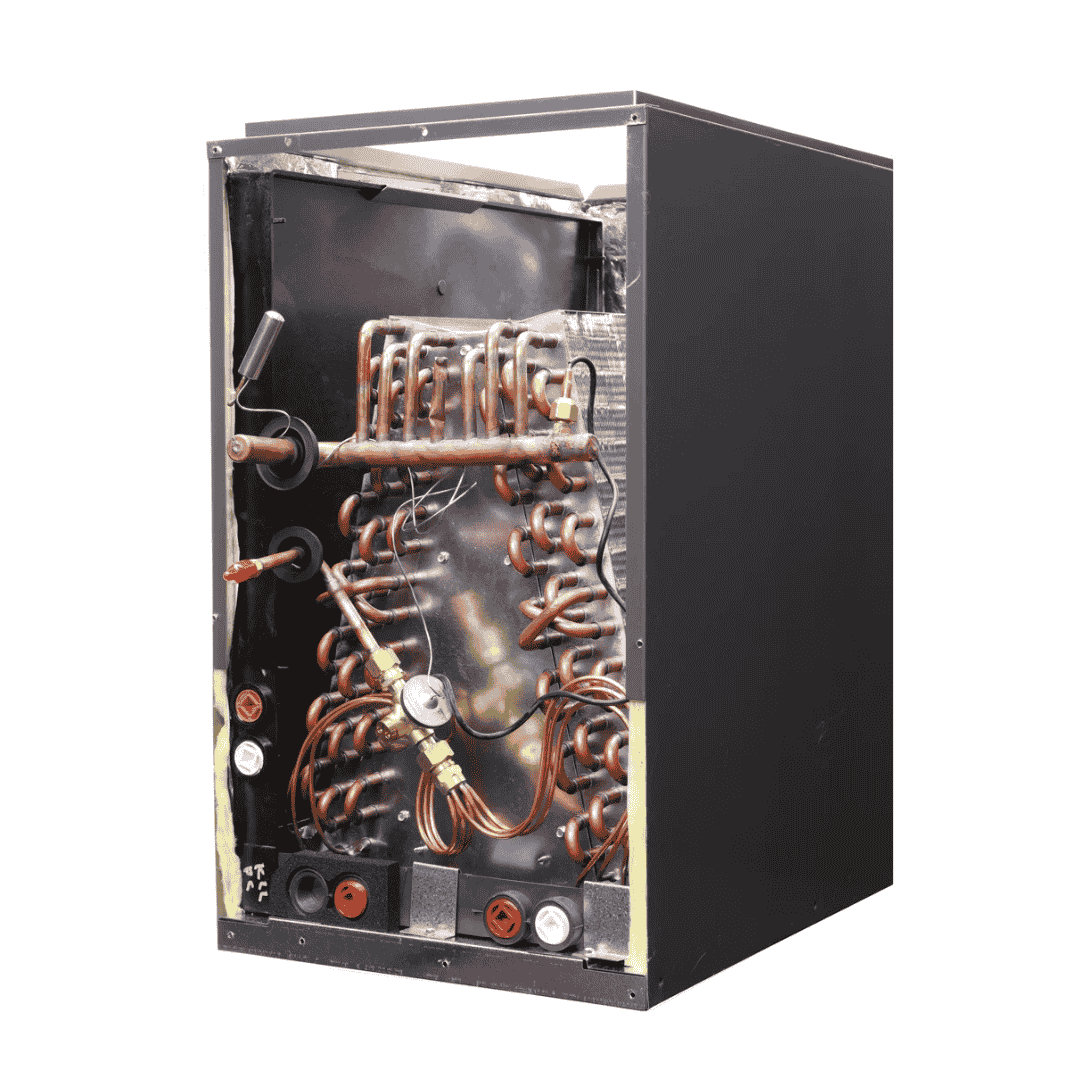

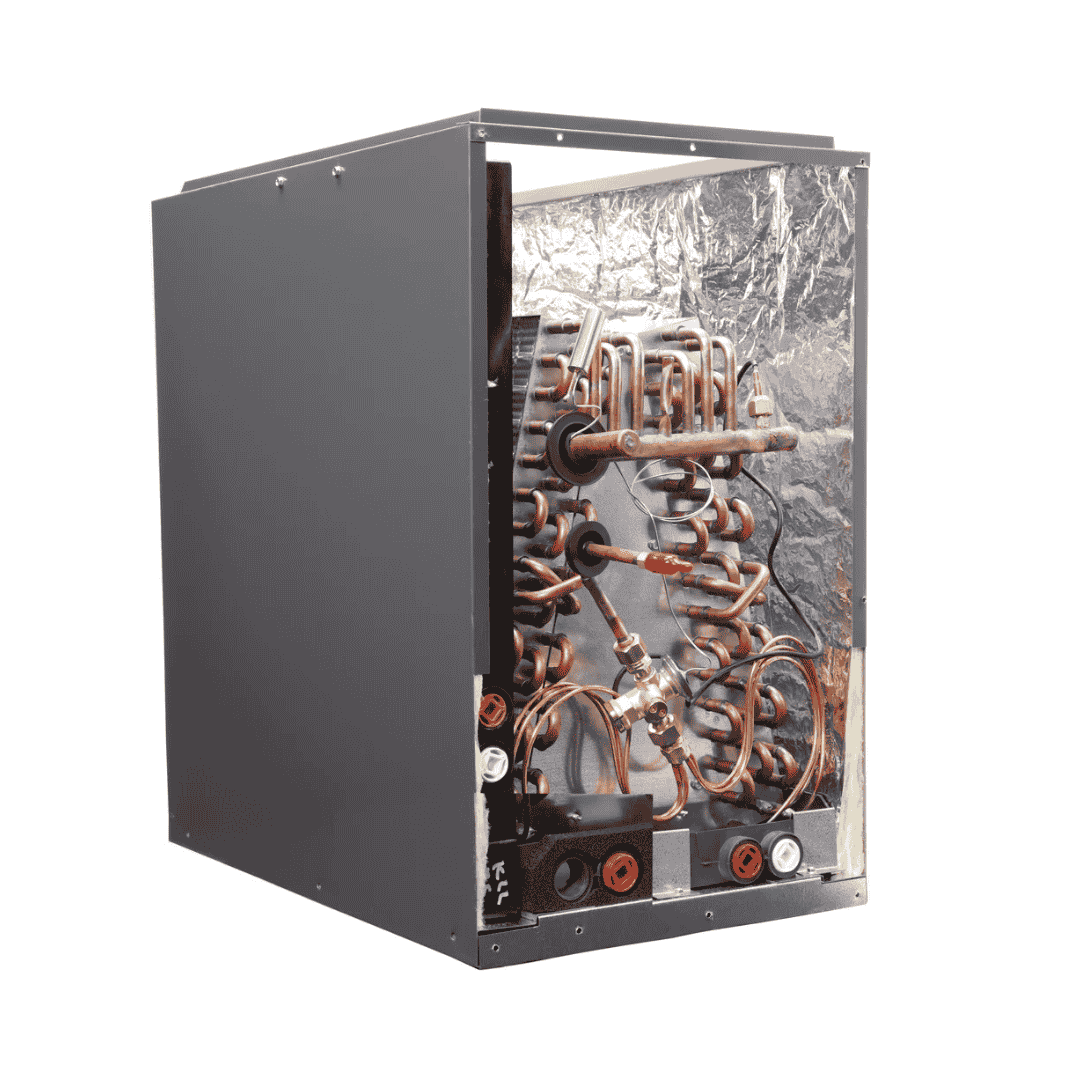

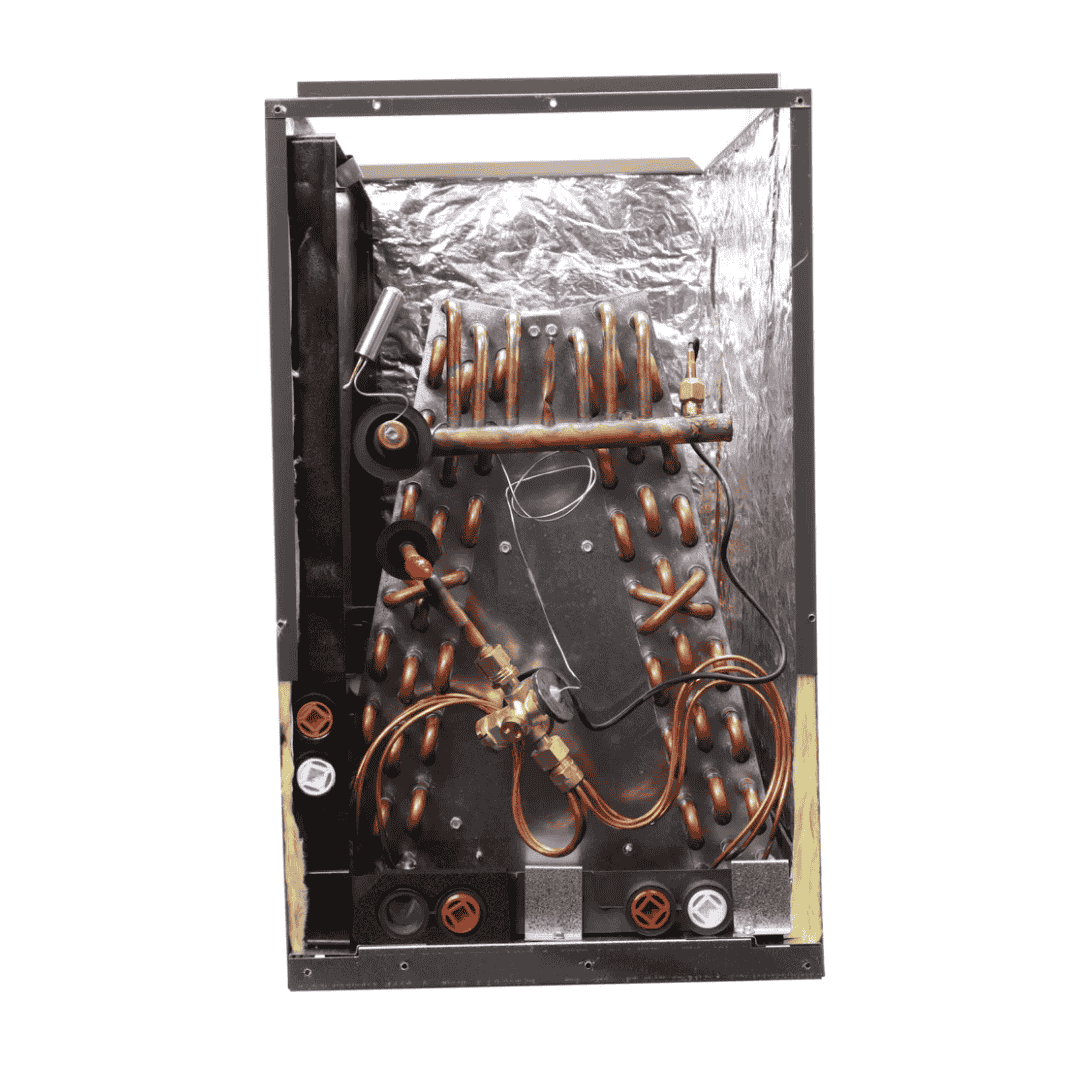

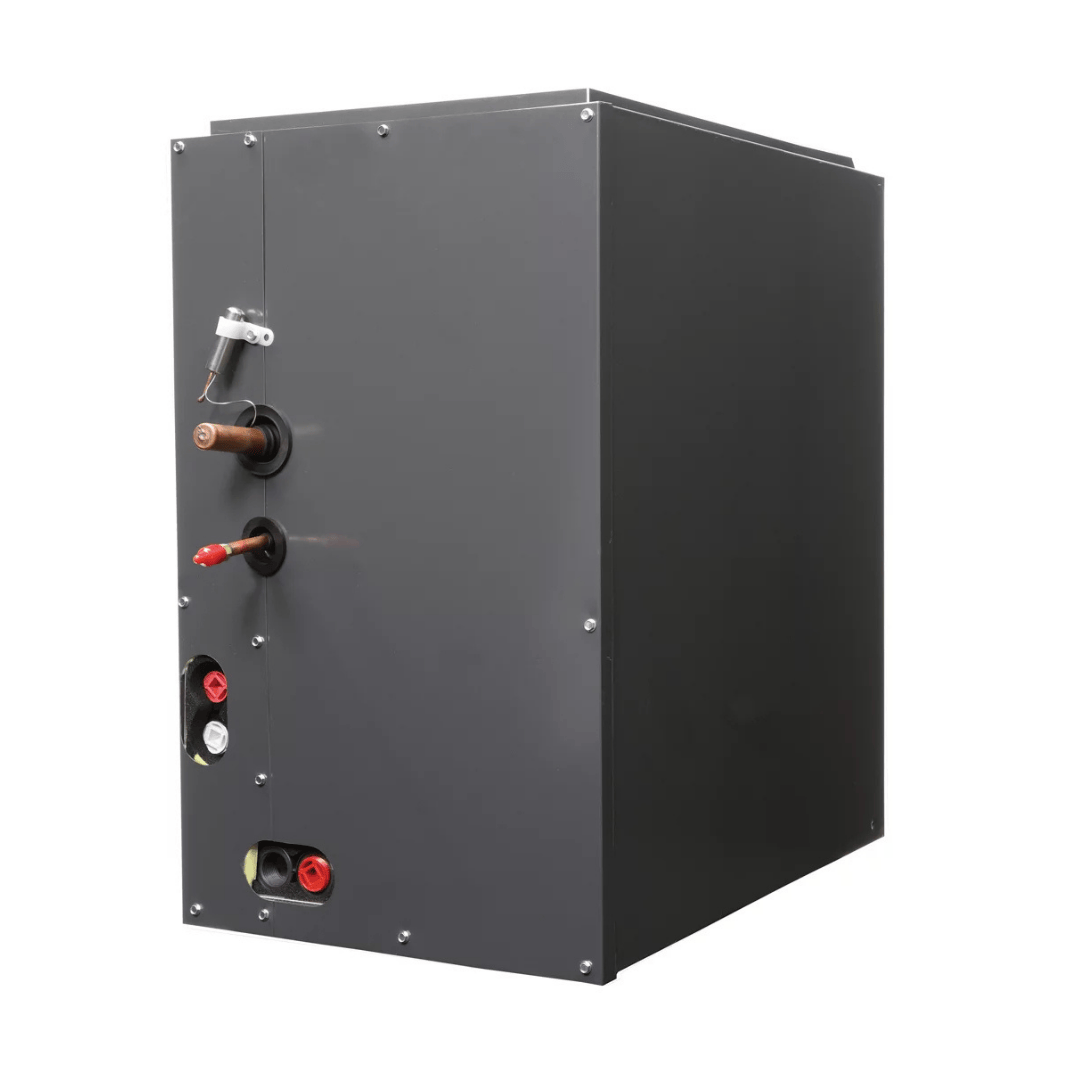

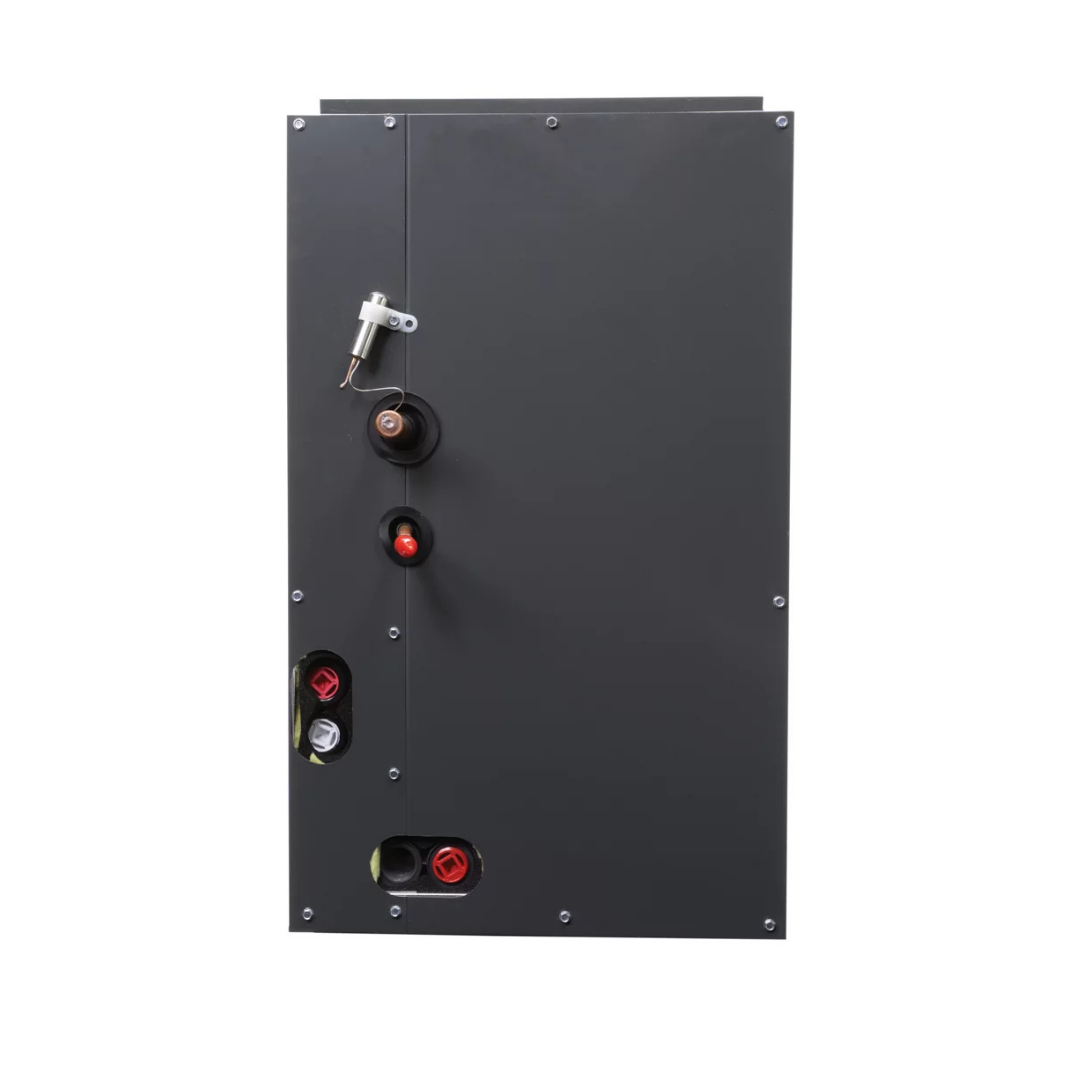

Aspen 5 ton 60,000 BTU 21" width 3 Row Cased Copper Multi-Position Coil CE60D3D210R165

Product Description:

The CE60D3D210R165 is a 5-ton cased multi-position coil with 60,000 BTU nominal cooling capacity. This features 21" width and 3 rows. This Aspen Manufacturing CE Series coil features rifled copper tubing with enhanced aluminum fins for superior heat transfer efficiency. ETL and AHRI listed for R32 and R454B refrigerants with factory-installed Refrigerant Detection System (RDS) for A2L compliance. The unit operates with 3/4" ODS suction line and 3/8" ODS liquid line connections, with 3/4" NPT condensate drain, and is designed for standard upflow or optional downflow operation. Multi-stage pressure decay testing at 500 psi with helium and nitrogen pressurization ensures maximum system reliability.

Product Features:

• Application Versatility: Standard upflow configuration; downflow applications require optional field-installed downflow kit. AHRI certifiable with all A/C and heat pump brands. Compatible with R32 and R454B refrigerants when used with factory-installed Refrigerant Detection System (RDS). A2L refrigerant compliance requires RDS activation.
• Premium Construction: Fully insulated cabinet with faced insulation and split access doors in the front for convenient service access. Heavy-duty plastic drain pan with powder-coated galvanized steel horizontal drain pan included.
• Rigorous Testing & Quality Assurance: Multi-stage leak testing performed at 500 psi pressure decay using mass spectrometer technology with helium, then nitrogen pressurized and factory sealed for maximum reliability.
• Refrigerant & Plumbing Connections: Factory-installed TXV with Schrader valve on liquid line for pressure assurance testing. Condensate drain: 3/8" NPT; liquid line: 3/4" ODS; suction line: 3/4" ODS (1.5-ton to 3-ton units).
• Warranty Coverage: Ten-year limited warranty available with registration.
