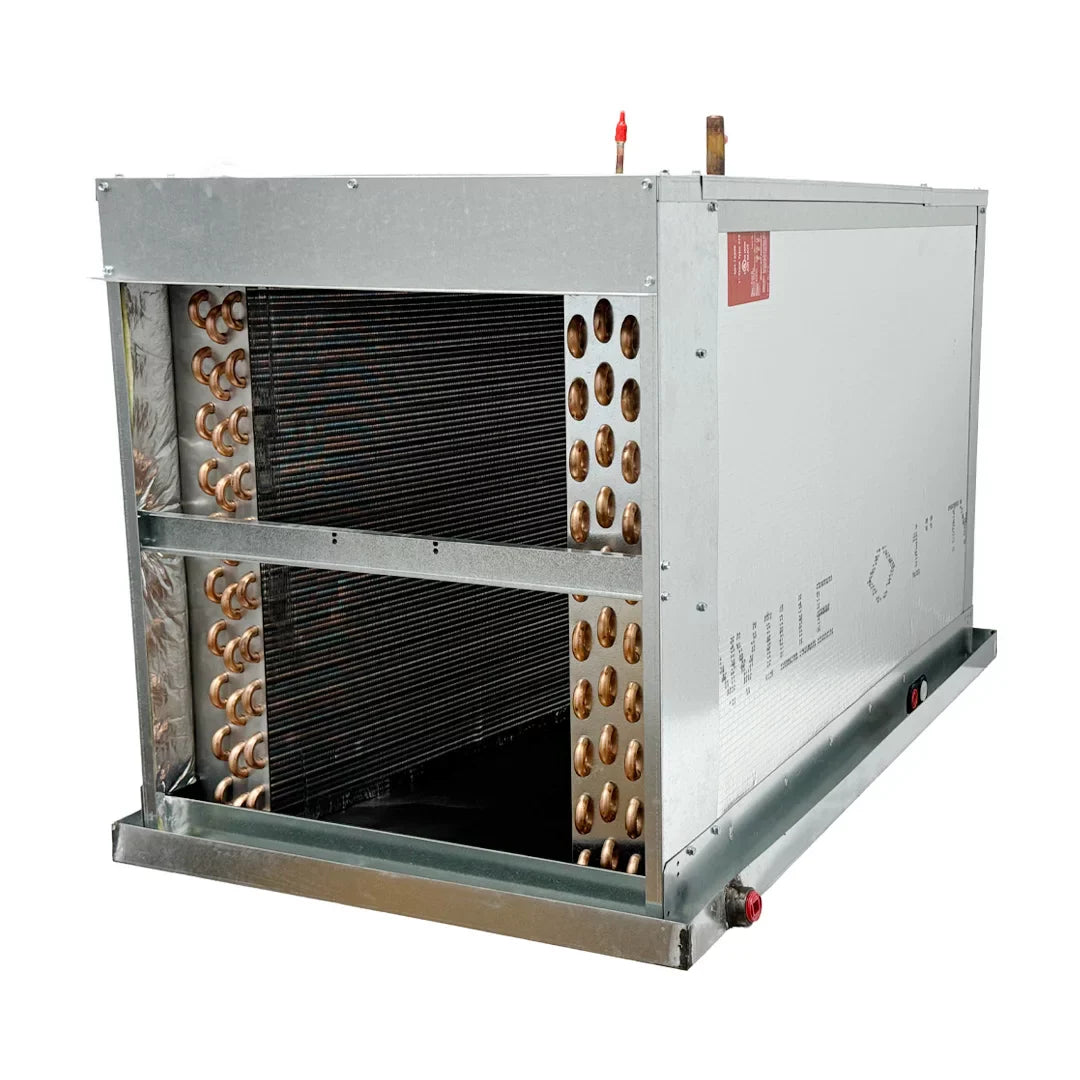

Aspen 3 ton 37,000 BTU 17.5" width E-3 Row Dedicated Horizontal Copper Coil w/ Plenum CP37E3D175T042

Product Description:

The Aspen CP37E3D175T042 is a 3-ton (37,000 BTU/hr) cased dedicated horizontal copper (C Series) evaporator coil with an attached plenum (P), designed for residential and light commercial HVAC applications. Built on a 3-row "E" face area coil configuration (E3), it features a Non-Bleed R32 TXV metering device (D), making it A2L refrigerant ready (R32 and R454B) when used with a Refrigerant Detection System (RDS), while also supporting R22 and R410A systems (ETL listed for both). The coil is housed in a fully insulated cabinet with a 17.5" width (175), with refrigerant lines exiting the top and plumbing connections on opposite sides (T) and a 3/4" ODS suction line suited for 1.5-3 ton applications. Configured per option code 042, it is ETL listed, AHRI certifiable with all major A/C and heat pump brands, and backed by a ten-year limited warranty with registration.

Product Features:

• Multi-Brand Compatibility: AHRI certifiable with virtually all A/C and heat pump system brands for flexible system pairing.
• Refrigerant Listings: ETL listed for R22 and R410A. Compatible with A2L refrigerants R454B and R32 when installed alongside a Refrigerant Detection System (RDS), which is mandatory for A2L compliance.
• Coil Construction: Built with rifled copper tubing and enhanced aluminum fins to maximize heat transfer efficiency and extend service life.
• Insulated Cabinet: Fully insulated cabinet with plenum sides and back constructed of foil-backed, faced, one-inch thick fiberglass duct-board for optimal thermal performance.
• Easy Service Access: Three-piece service door on top of the unit allows for convenient coil access and maintenance.
• Pressure Tested & Factory Sealed: Immersion tested at 500 psi, then nitrogen pressurized and sealed at the factory to guarantee system integrity and long-term reliability.
• Pressure Assurance: Refrigerant lines exit the top of the coil; includes a Schrader valve on the liquid line or an internally mounted factory-installed TXV for on-site pressure assurance testing.
• Connection Sizes: Liquid line 3/8" ODS; suction line 3/4" ODS (1.5-3 ton) or 7/8" ODS (3.5-5 ton); condensate drain 3/4" NPT.
• Drain Pan: Equipped with a heavy-duty polypropylene drain pan for reliable condensate management.
• Secondary Drain Pan Included: A secondary metal drain pan is included with one inch of spacing around the cabinet for a complete, turnkey installation.
• Warranty: Covered by a ten-year limited warranty upon product registration.
